Total Toe-in Adjustment

  1. Loosen the installation nut of the adjusting cam bolt.
  2. Rotate the adjusting cam bolt in either direction to adjust the camber.
    Fig 1: Total Toe-in Adjustment Table
    G00975653Courtesy of MAZDA MOTORS CORP.
  3. Tighten the nut.
    1. Tightening torque 80.0-100.0 N.m {8.16-10.19 kgf.m, 59.01-73.75 ft.lbf}

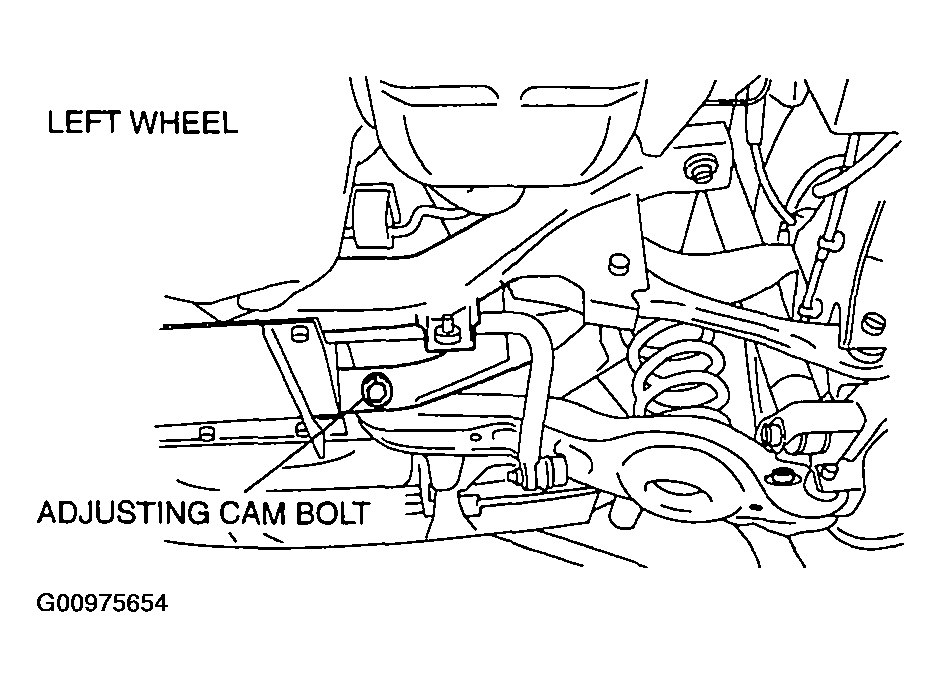

    Fig 2: Identifying Adjusting Cam Bolt
    G00975654Courtesy of MAZDA MOTORS CORP.
