Transaxle Installation Note

Set the transaxle on a jack and lift it.
Install the transaxle mounting bolts.
1. Tightening torque 37.3-52.0 N.m {3.8-5.3 kgf.m, 27.5-38.3 ft.lbf}

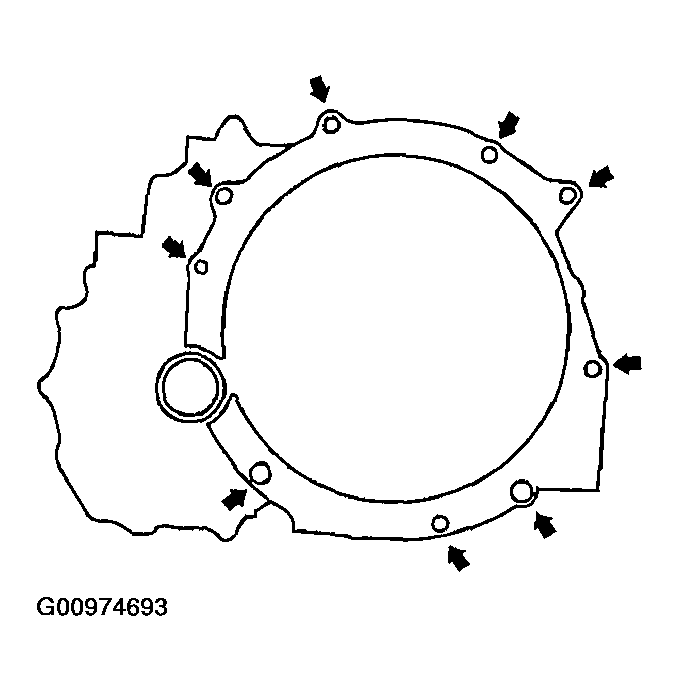

Fig 1: Locating Transaxle Mounting Bolts
Courtesy of MAZDA MOTORS CORP.
