Drive Plate Removal/Installation: Notes

  1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

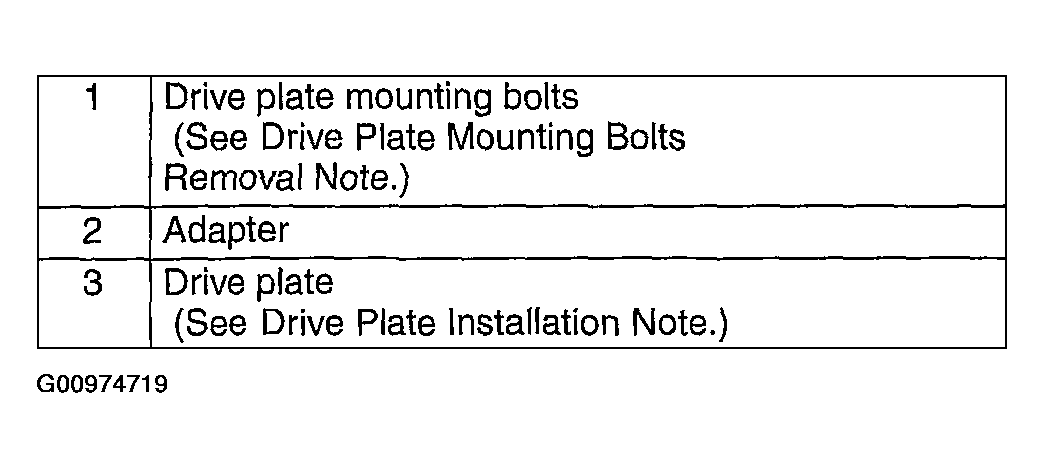

    Fig 1: Drive Plate Removal Order
    G00974719Courtesy of MAZDA MOTORS CORP.

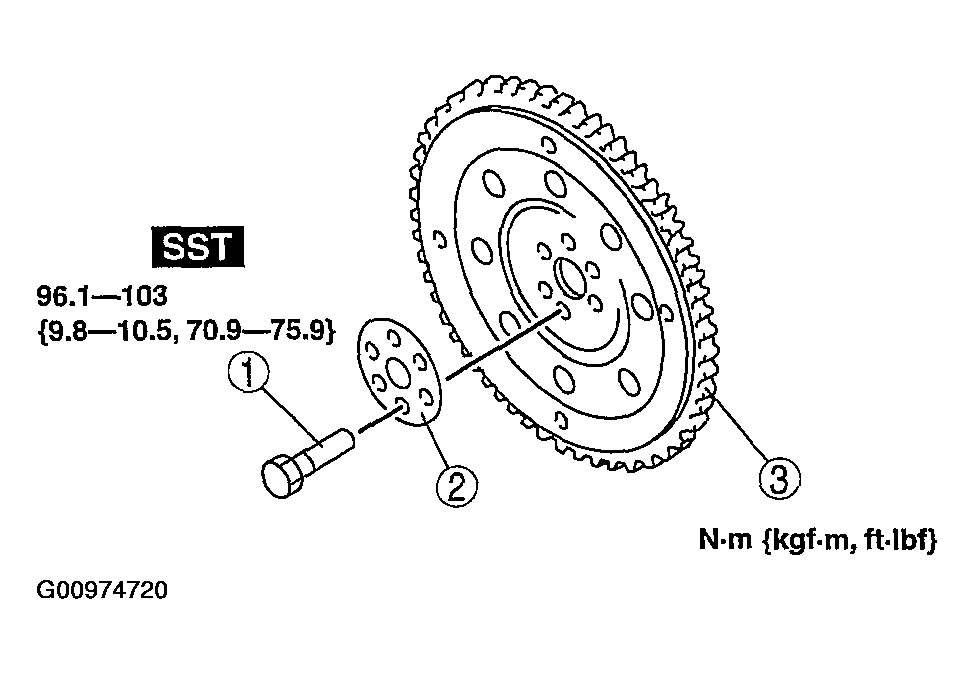

    Fig 2: Drive Plate With Torque Specifications
    G00974720Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
