Rear Window Defroster Relay Connector End View
Rear Window Defroster Relay Connector End View

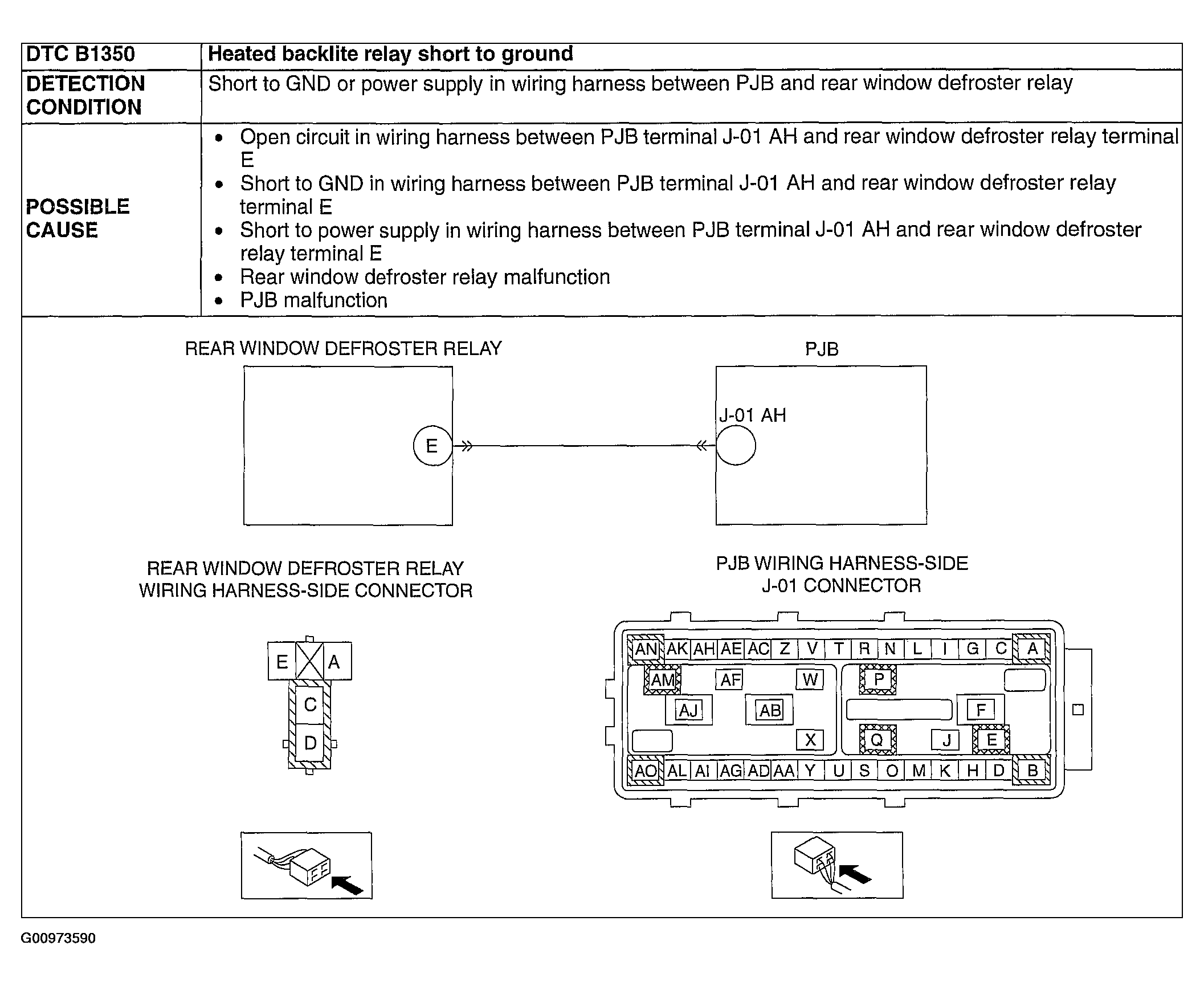

Fig 1: Rear Window Defroster Relay Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
