DTC P0016: CKP-CMP Correlation
›
Diagnostic procedure
Diagnostic procedure

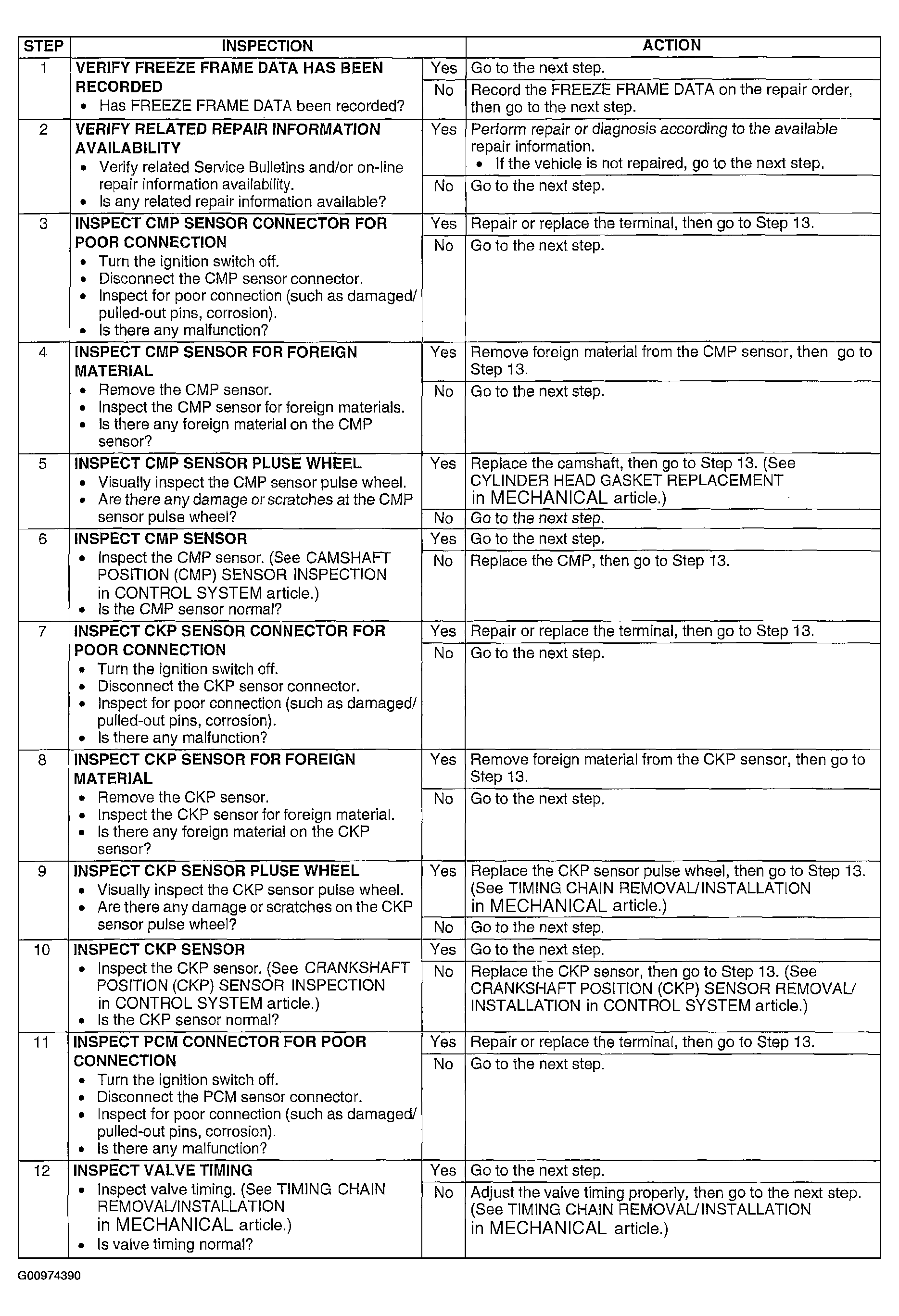

Fig 1: DTC P0016: Diagnostic Procedure Chart (Steps 1-12)
Courtesy of MAZDA MOTORS CORP.

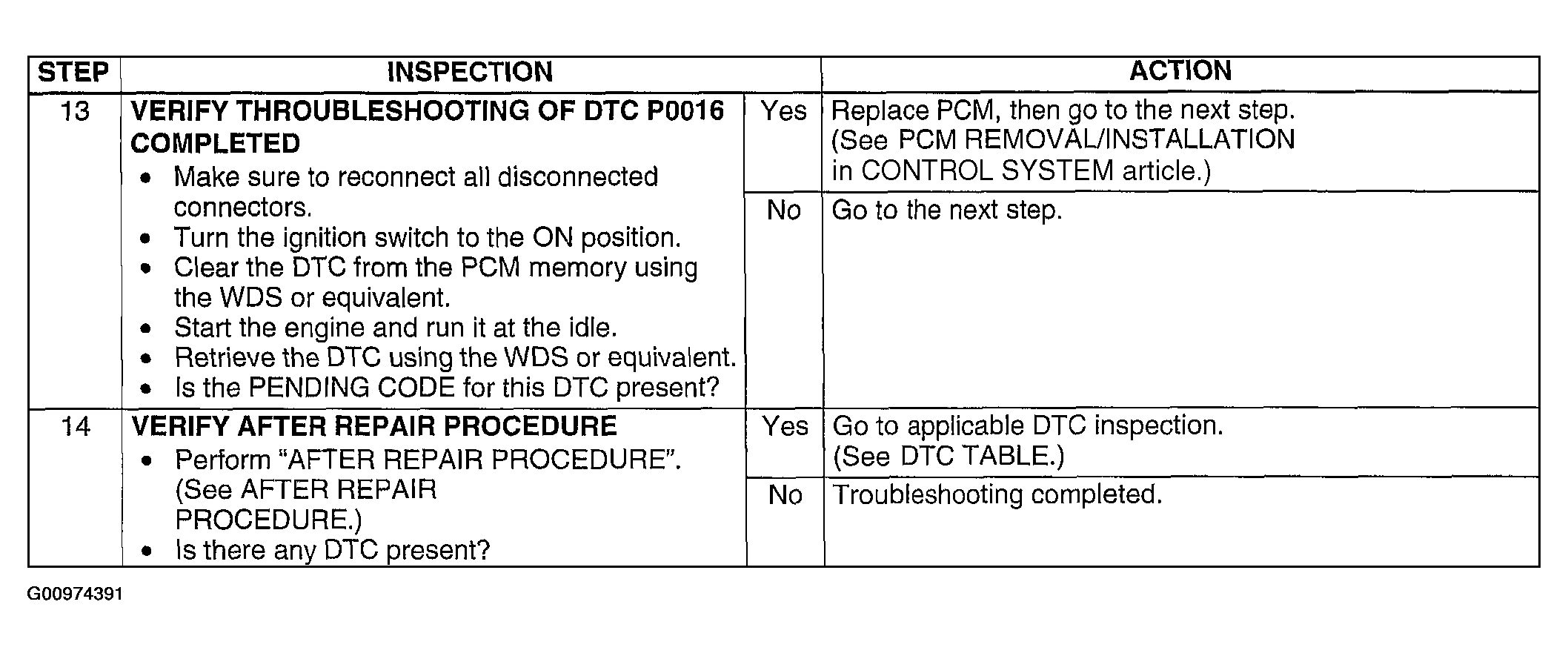

Fig 2: DTC P0016: Diagnostic Procedure Chart (Steps 13 & 14)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
