DTC P0037: Middle Ho2S Heater Circuit Low Input
›
Diagnostic Procedure
Diagnostic Procedure

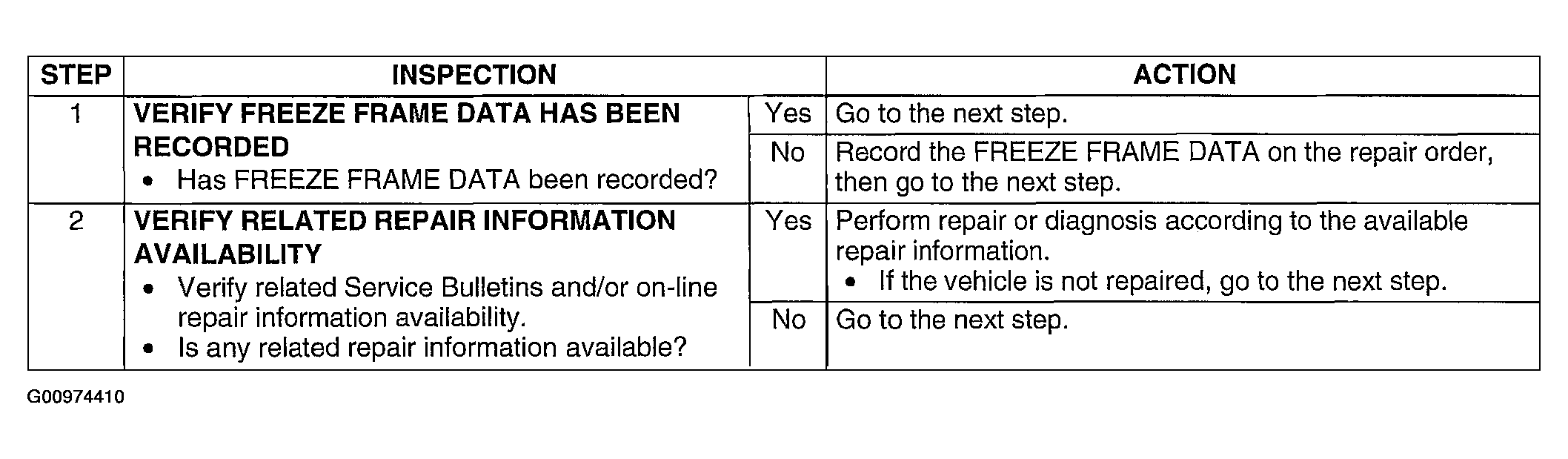

Fig 1: DTC P0037: Diagnostic Procedure Chart (Steps 1 & 2)
Courtesy of MAZDA MOTORS CORP.

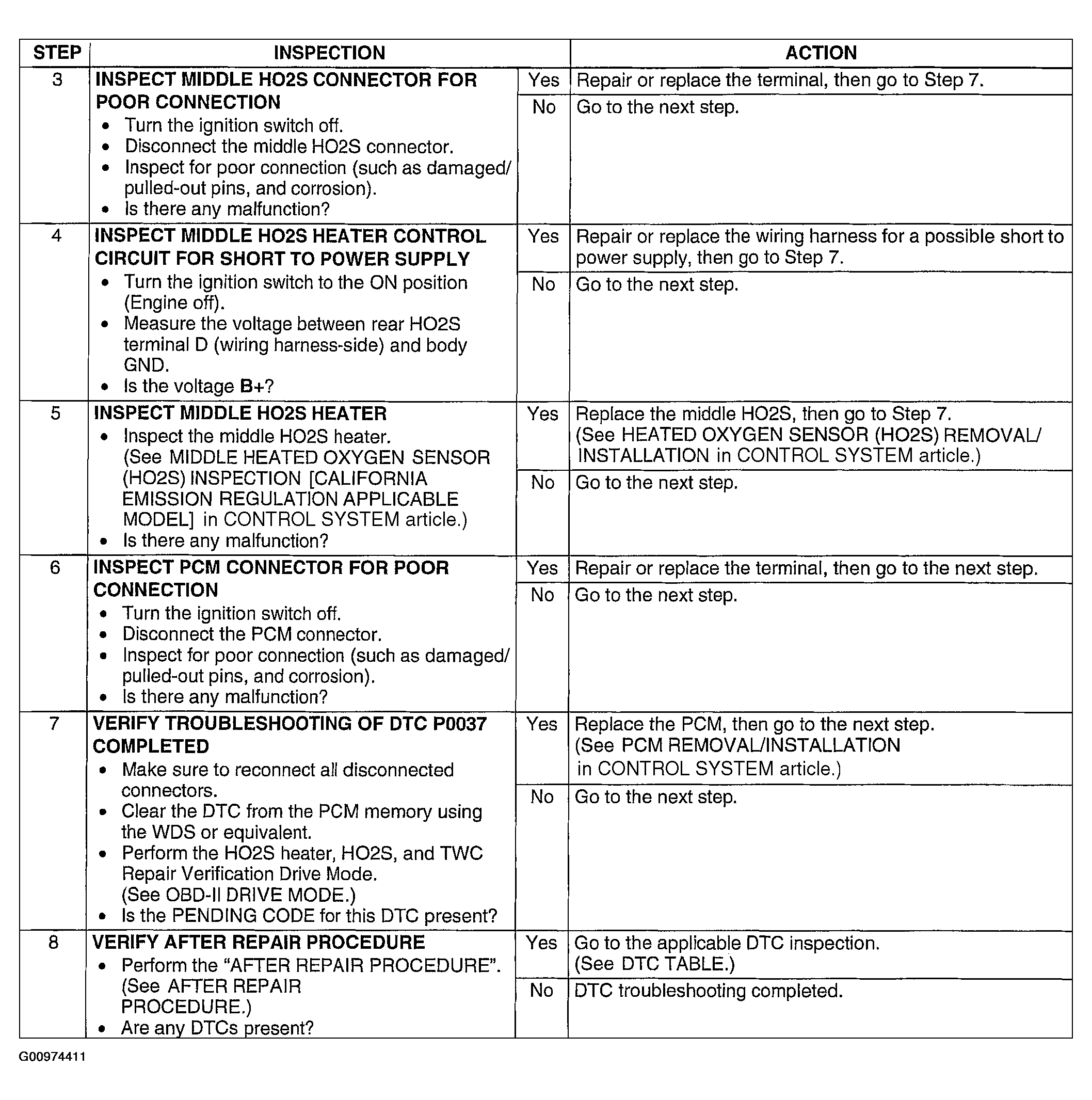

Fig 2: DTC P0037: Diagnostic Procedure Chart (Steps 3-8)
Courtesy of MAZDA MOTORS CORP.

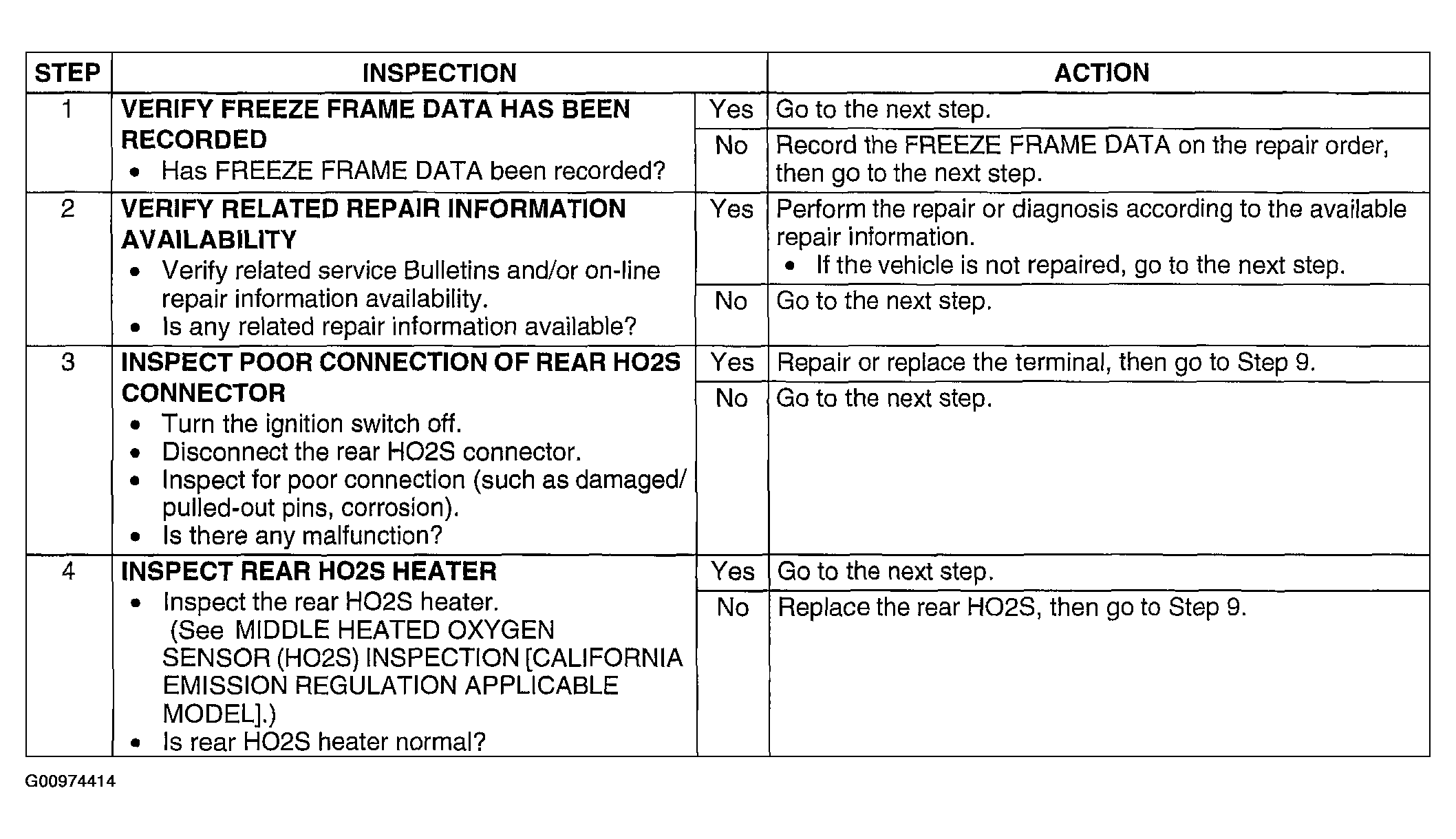

Fig 1: DTC P0037: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

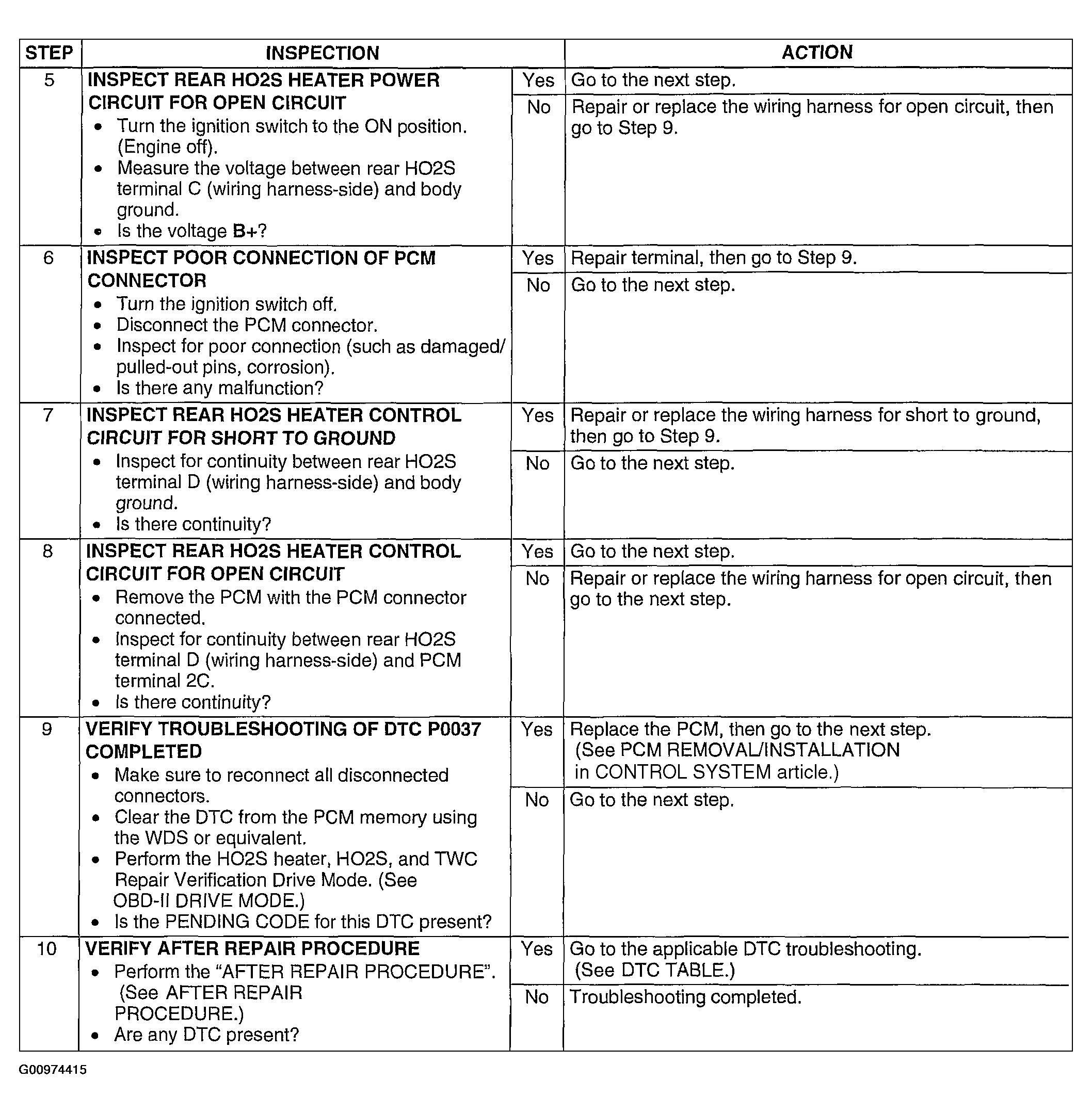

Fig 2: DTC P0037: Diagnostic Procedure Chart (Steps 5-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
