DTC P0038: Middle Ho2S Heater Circuit High Input
›
Diagnostic Procedure
Diagnostic Procedure

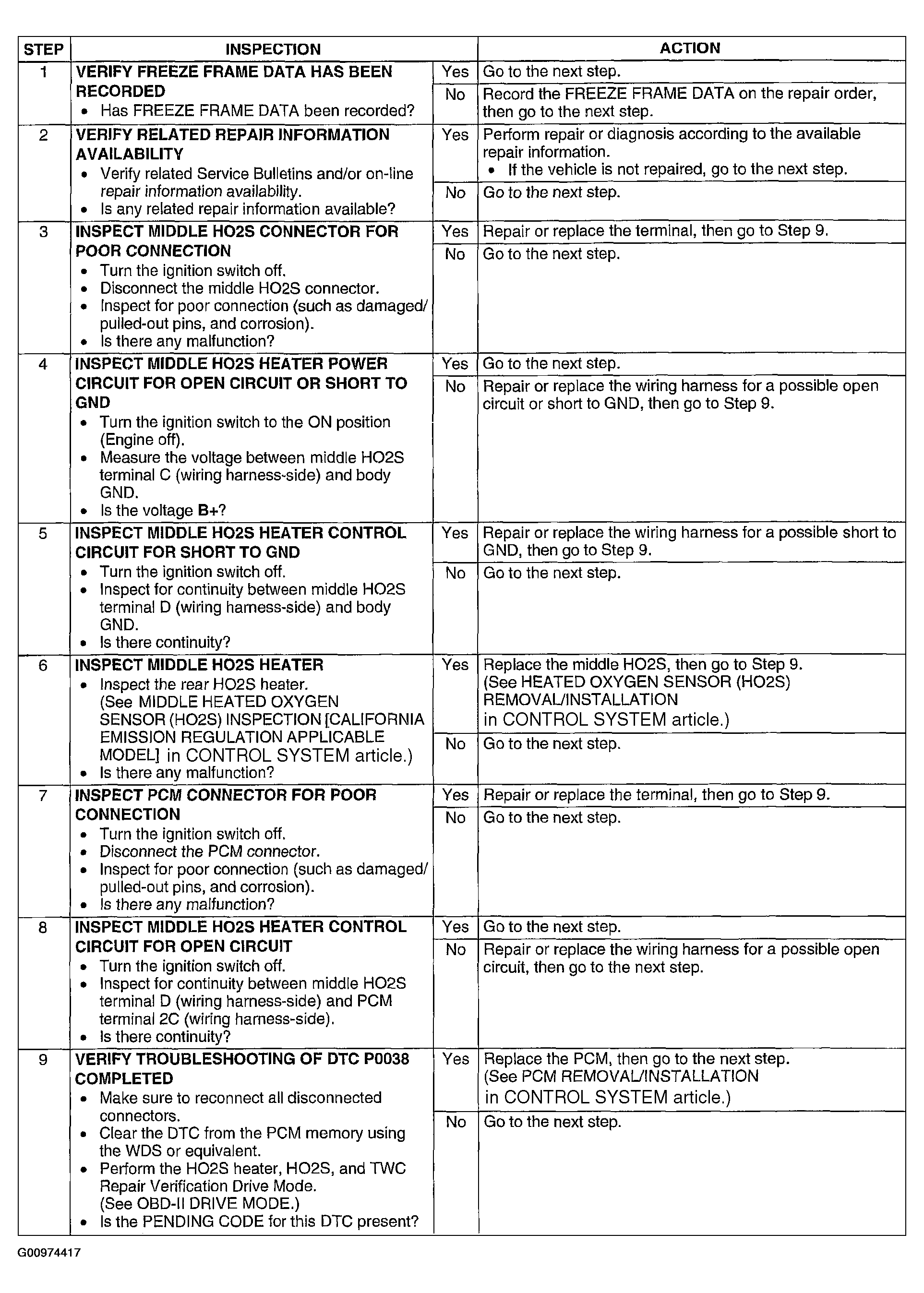

Fig 1: DTC P0038: Diagnostic Procedure Chart (Steps 1-9)
Courtesy of MAZDA MOTORS CORP.

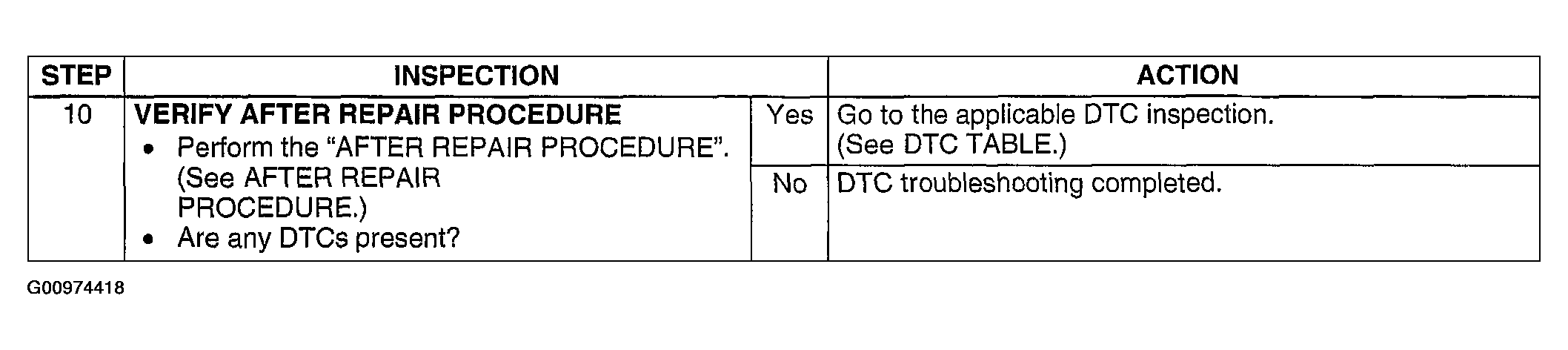

Fig 2: DTC P0038: Diagnostic Procedure Chart (Step 10)
Courtesy of MAZDA MOTORS CORP.

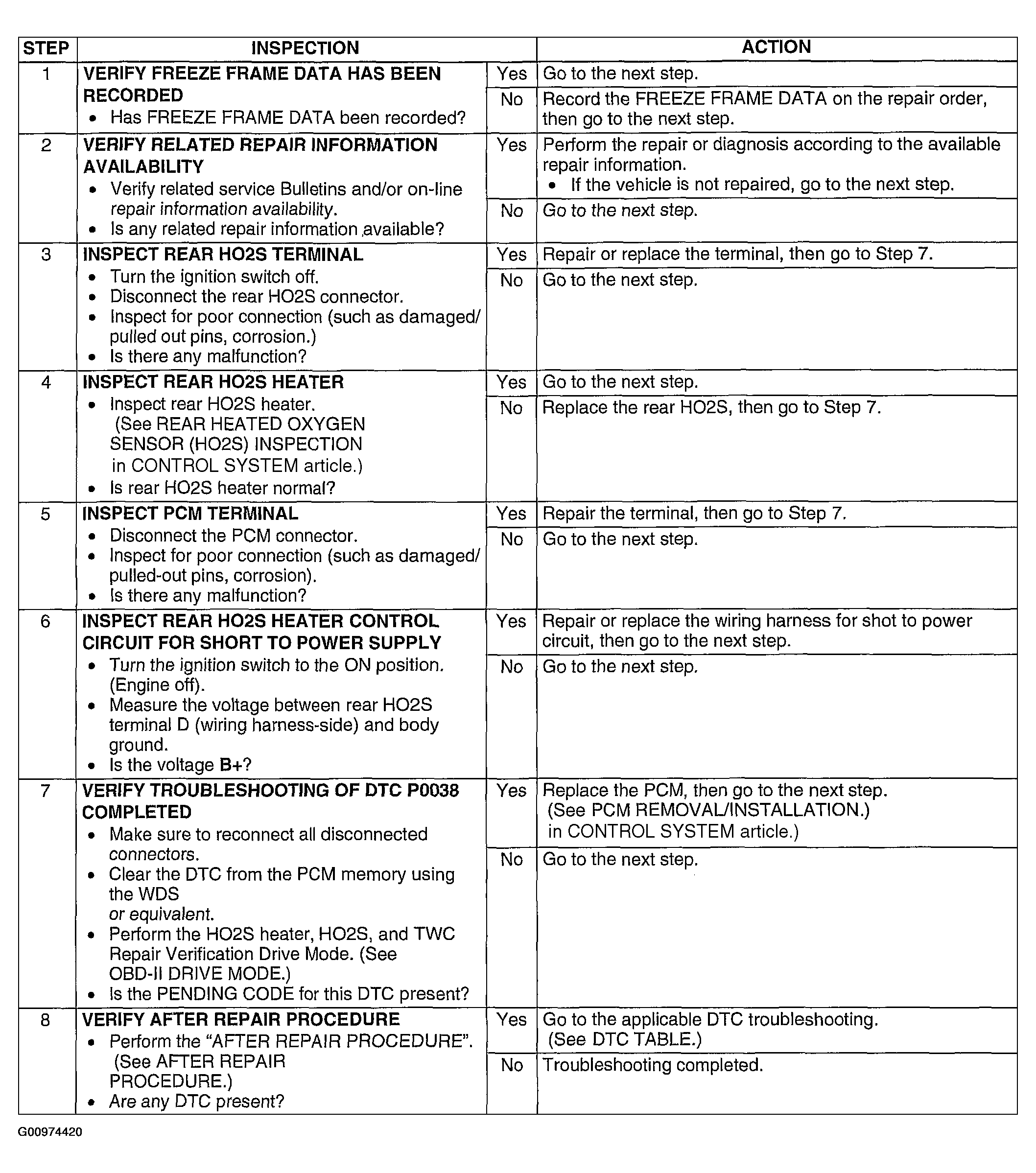

Fig 1: DTC P0038: Diagnostic Procedure Chart (Steps 1-8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
