DTC P0102: MAF Circuit Low Input
›
Diagnostic Procedure
Diagnostic Procedure

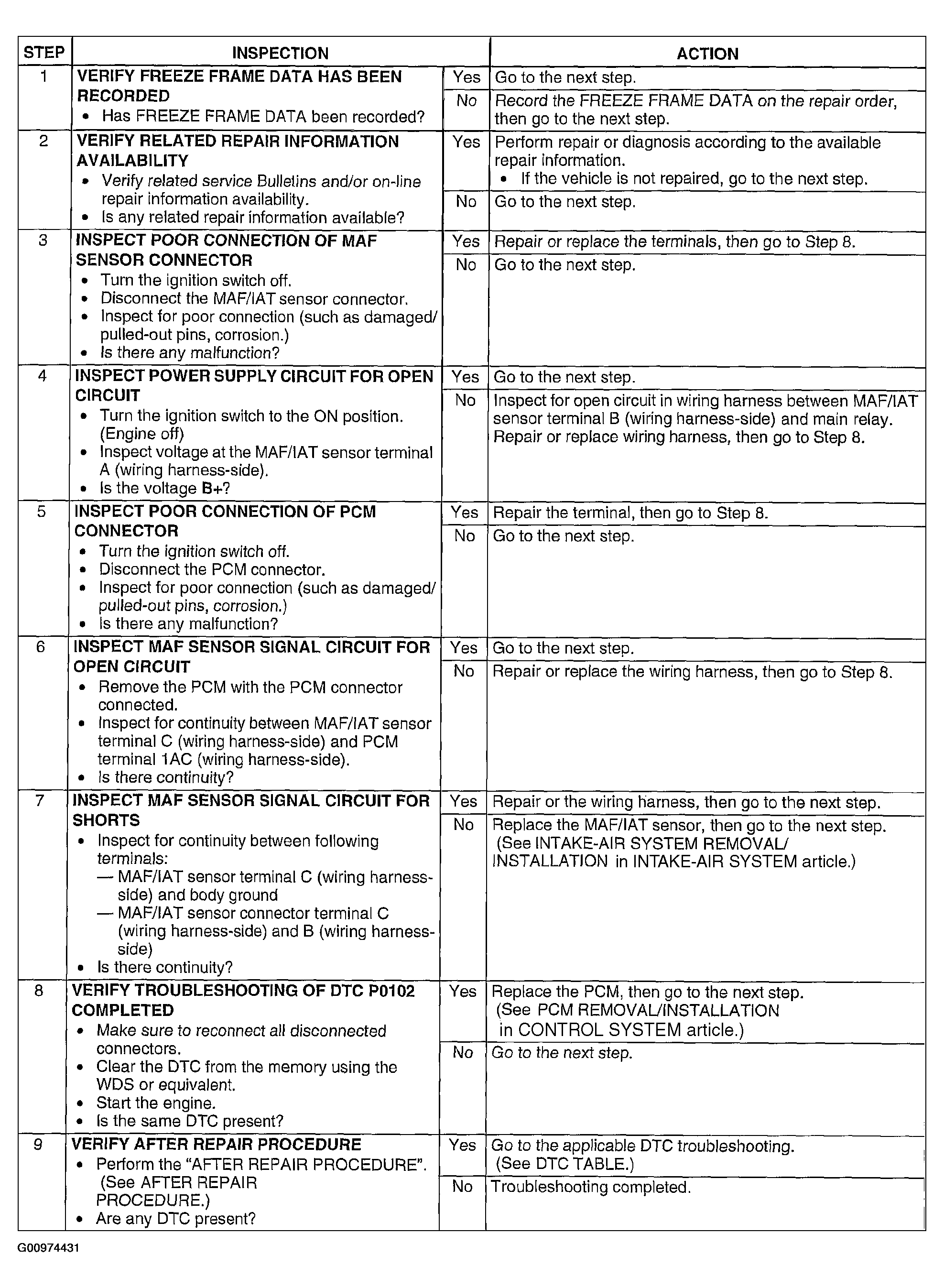

Fig 1: DTC P0102: Diagnostic Procedure Chart (Steps 1-9)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
