Diagnostic Procedure

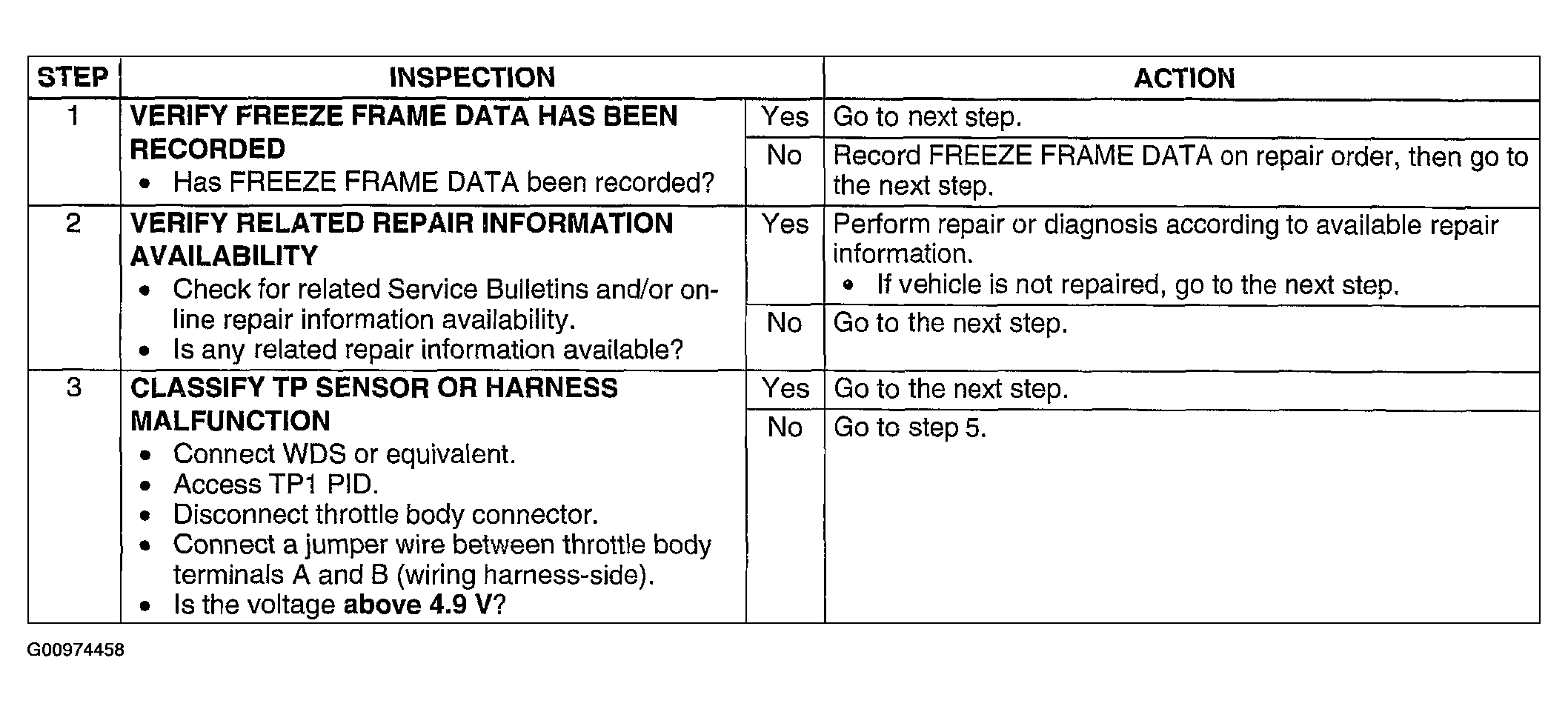

Fig 1: DTC P0122: Diagnostic Procedure Chart (Steps 1-3)
G00974458Courtesy of MAZDA MOTORS CORP.

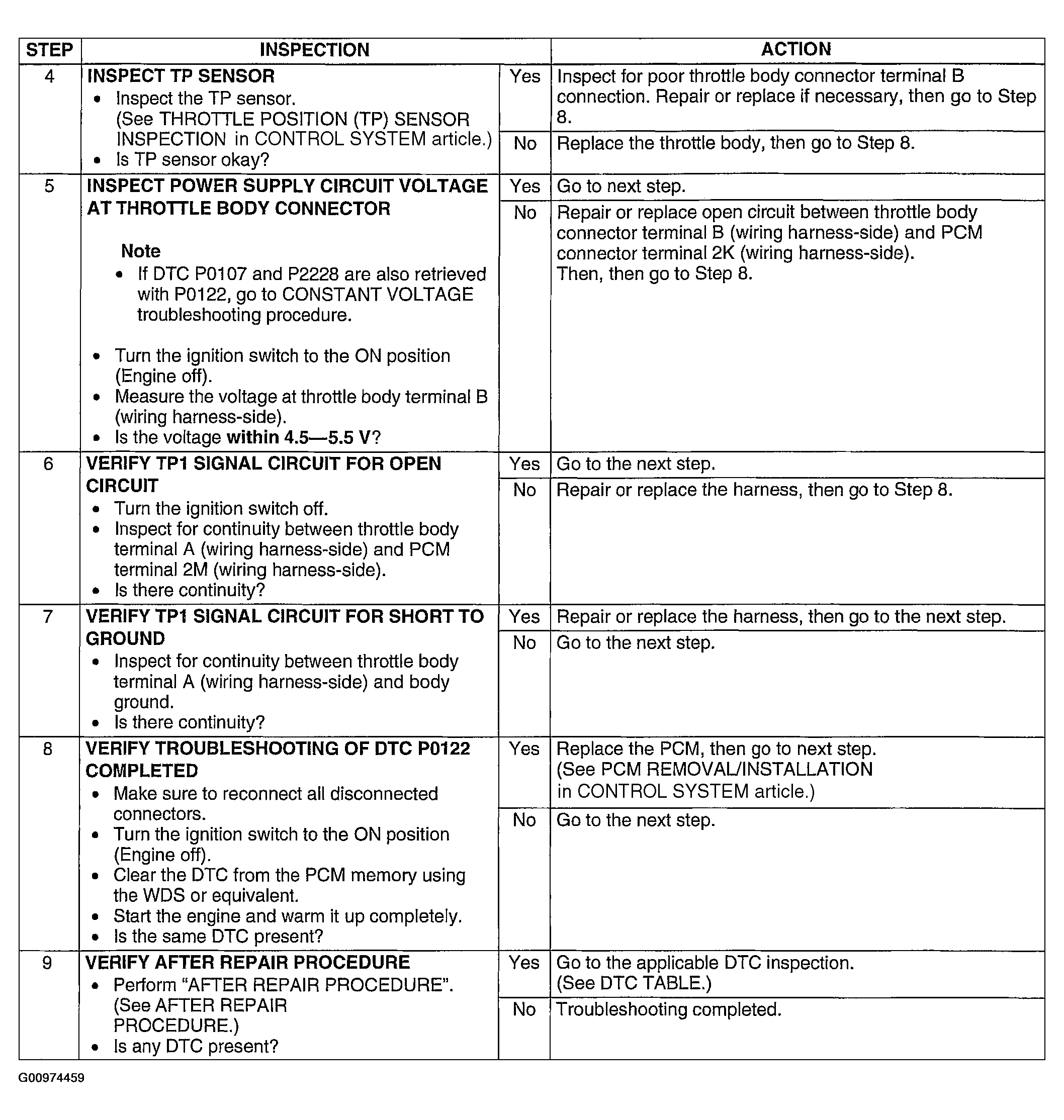

Fig 2: DTC P0122: Diagnostic Procedure Chart (Steps 4-9)
G00974459Courtesy of MAZDA MOTORS CORP.
