DTC P0140: Rear Ho2S No Activity Detected
›
Diagnostic Procedure
Diagnostic Procedure

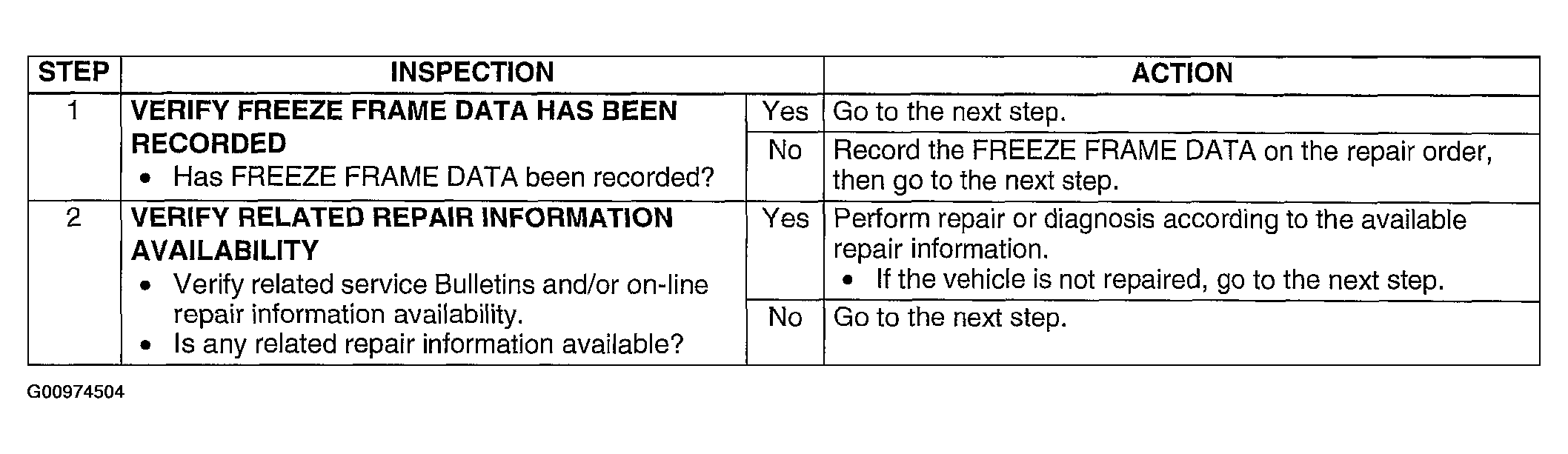

Fig 1: DTC P0140: Diagnostic Procedure Chart (Steps 1 & 2)
Courtesy of MAZDA MOTORS CORP.

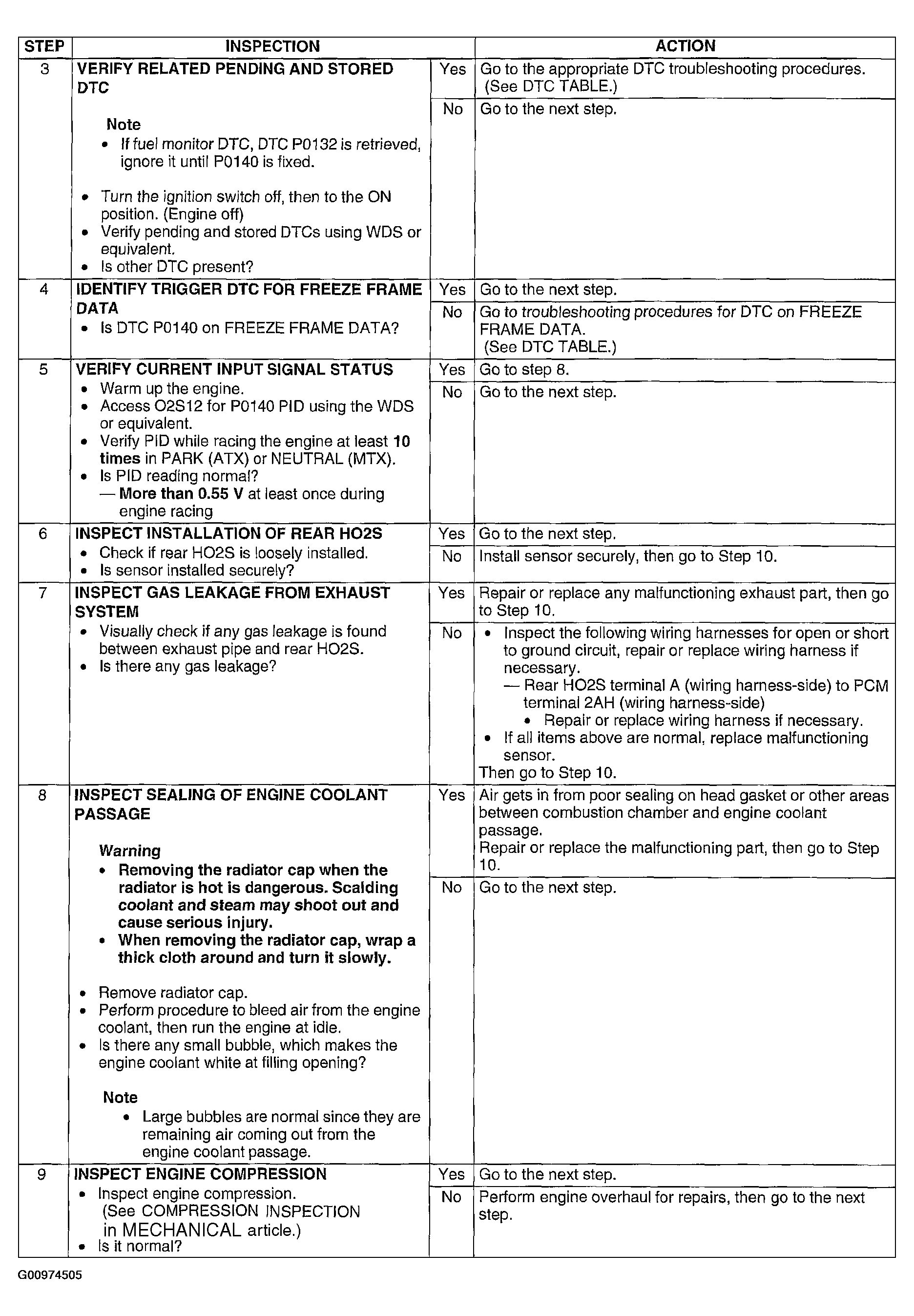

Fig 2: DTC P0140: Diagnostic Procedure Chart (Steps 3-9)
Courtesy of MAZDA MOTORS CORP.

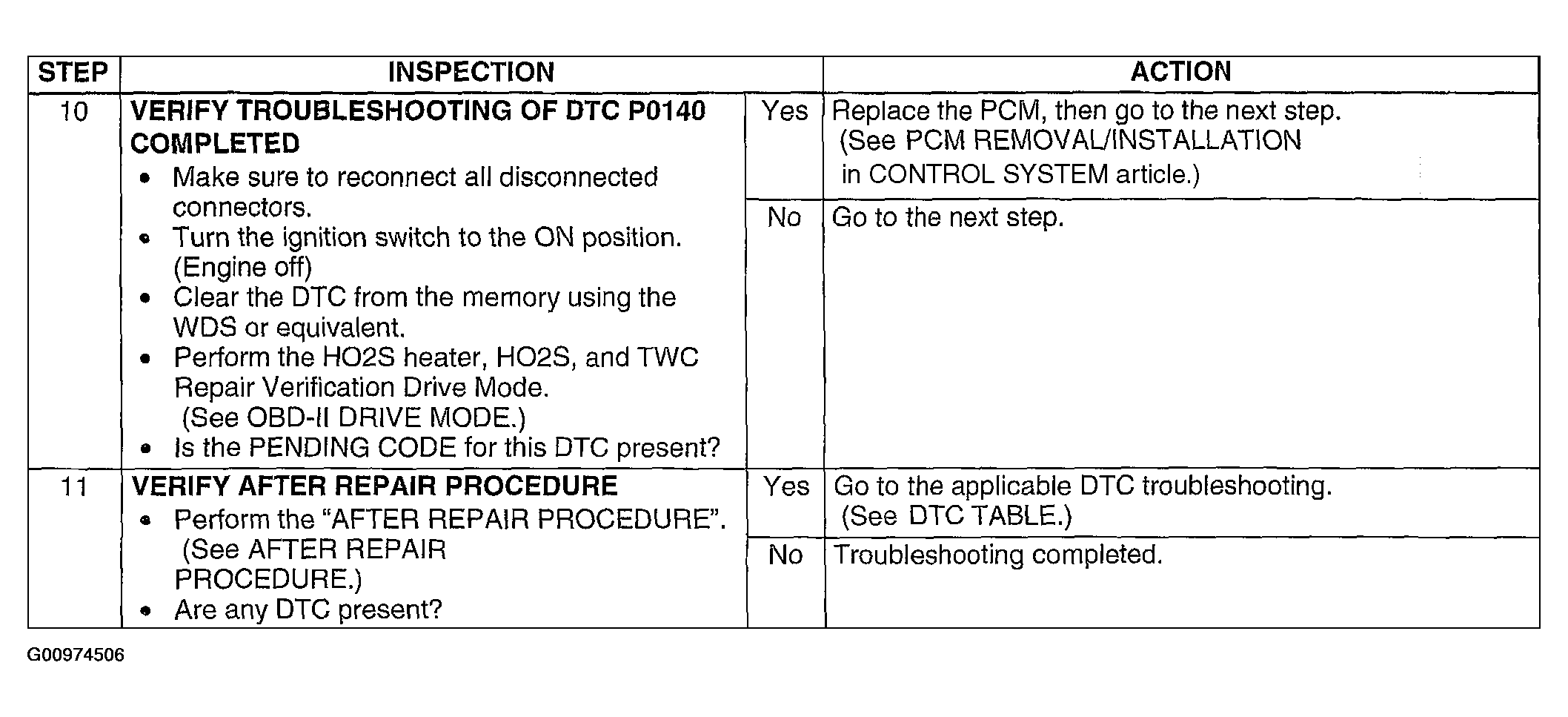

Fig 3: DTC P0140: Diagnostic Procedure Chart (Steps 10 & 11)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
