DTC P0223: TP Sensor No. 2 Circuit High Input
›
Diagnostic procedure
Diagnostic procedure

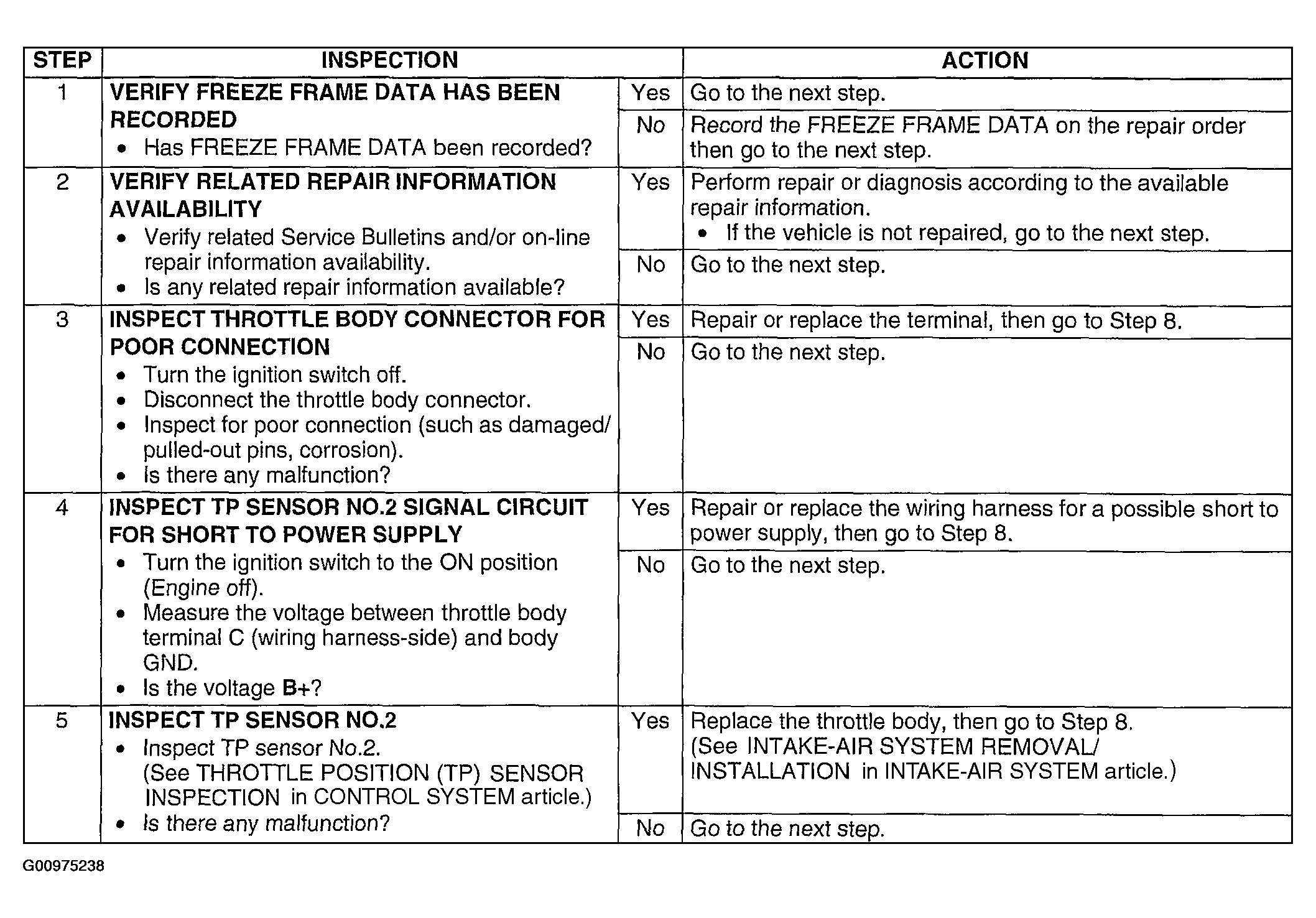

Fig 1: DTC P0223: Diagnostic Procedure Chart (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

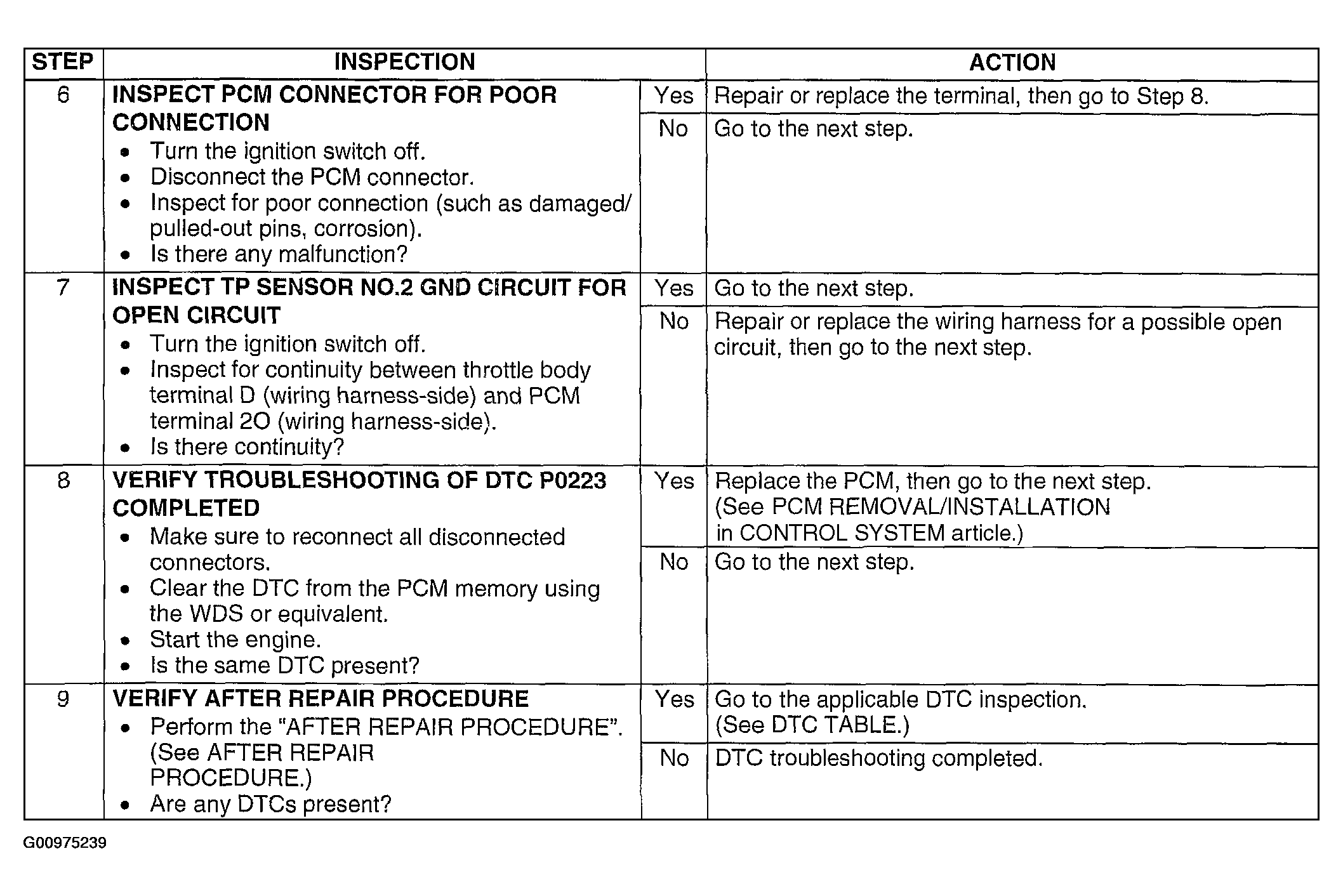

Fig 2: DTC P0223: Diagnostic Procedure Chart (Steps 6-9)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
