Diagnostic procedure

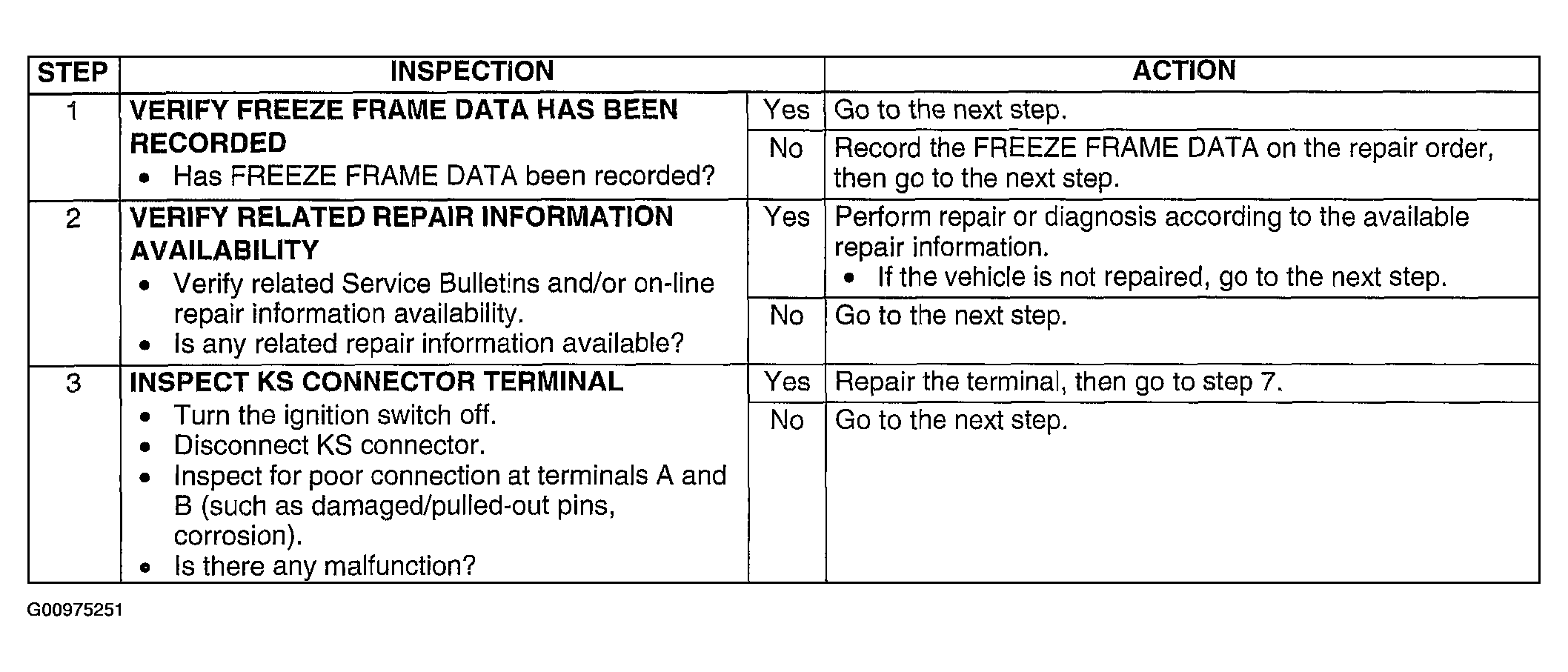

Fig 1: DTC P0328: Diagnostic Procedure Chart (Steps 1-3)
G00975251Courtesy of MAZDA MOTORS CORP.

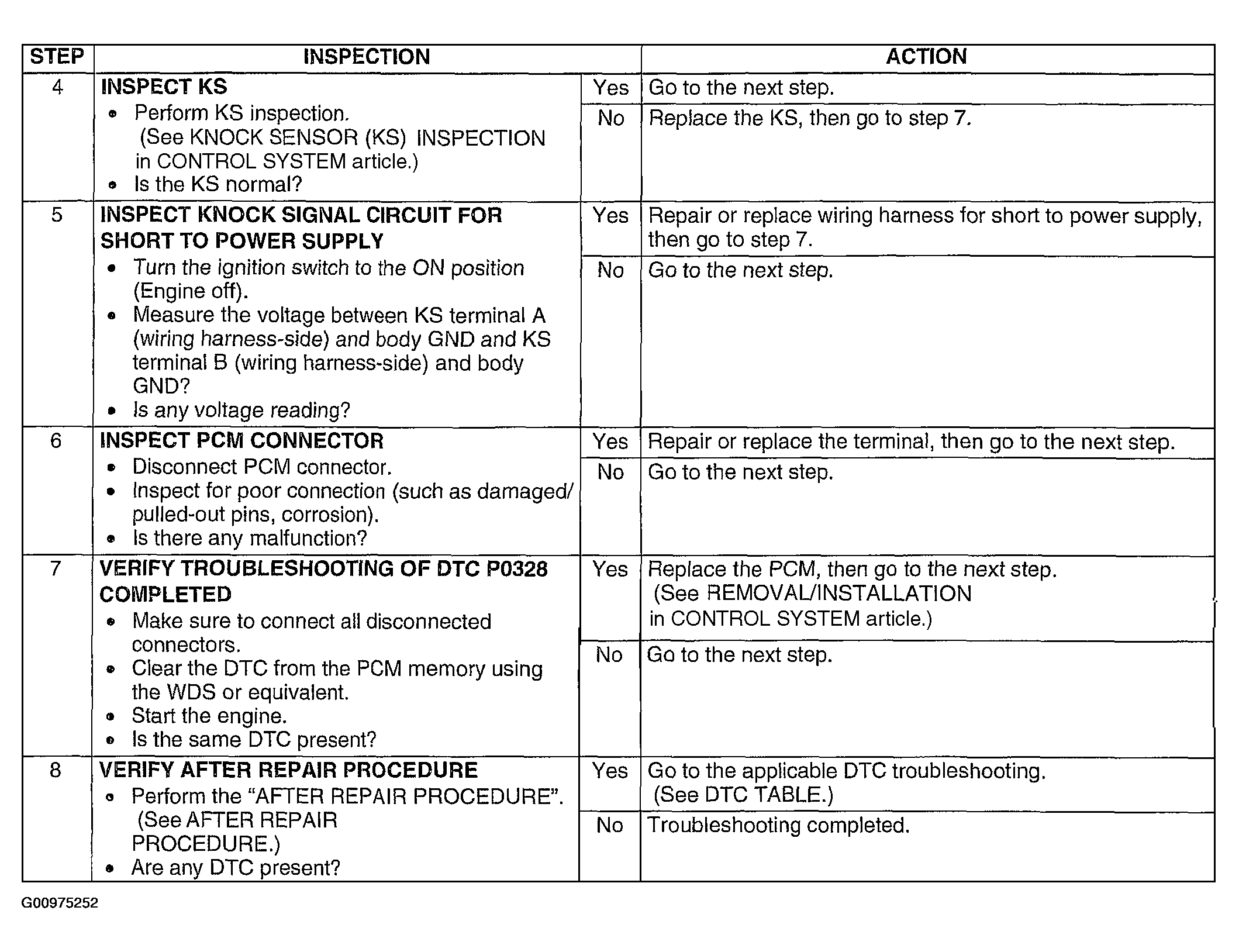

Fig 2: DTC P0328: Diagnostic Procedure Chart (Steps 4-8)
G00975252Courtesy of MAZDA MOTORS CORP.
