DTC P0401: EGR Flow Insufficient Detected
›
Diagnostic procedure
Diagnostic procedure

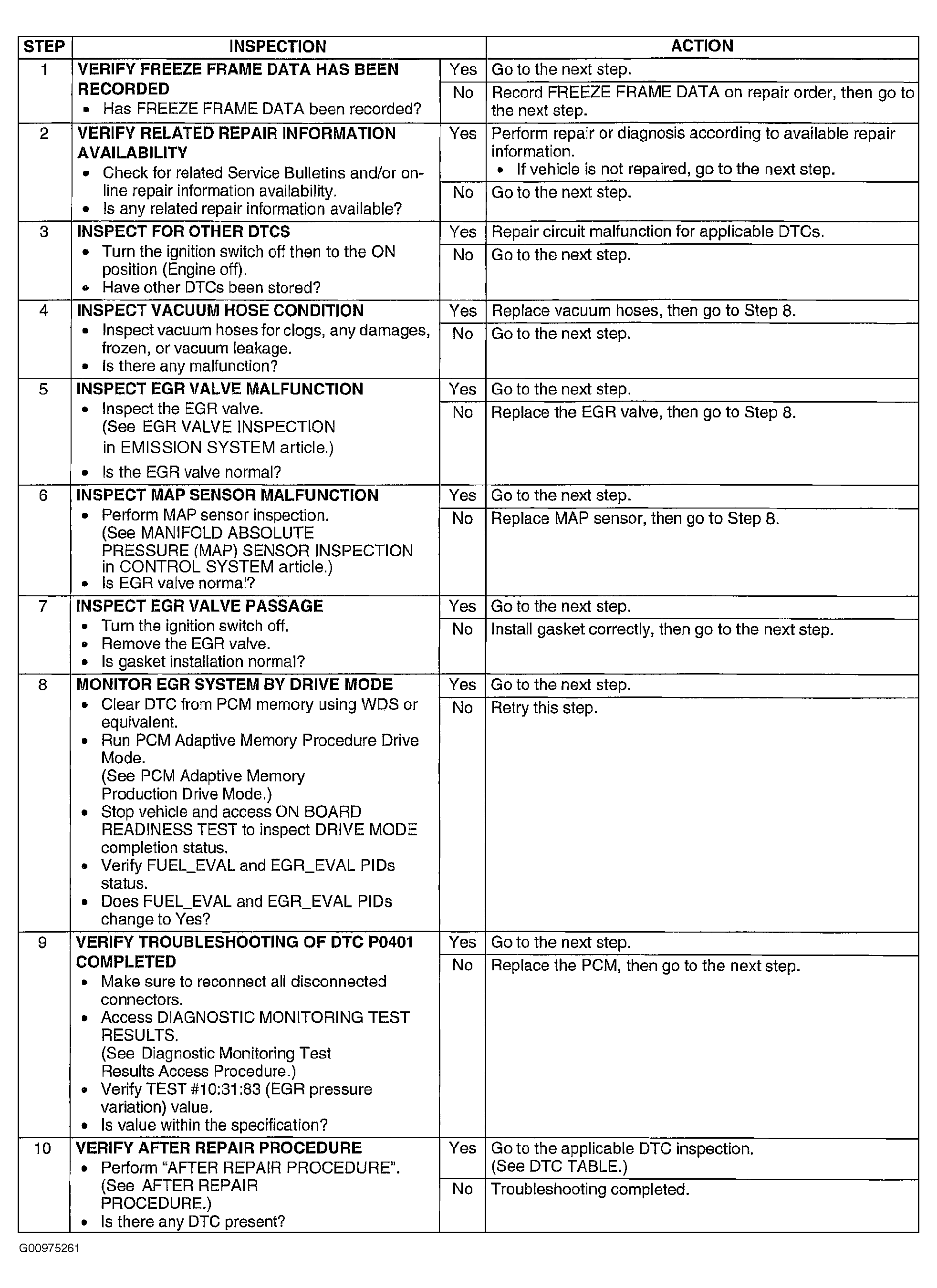

Fig 1: DTC P0401: Diagnostic Procedure Chart (Steps 1-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
