Diagnostic procedure

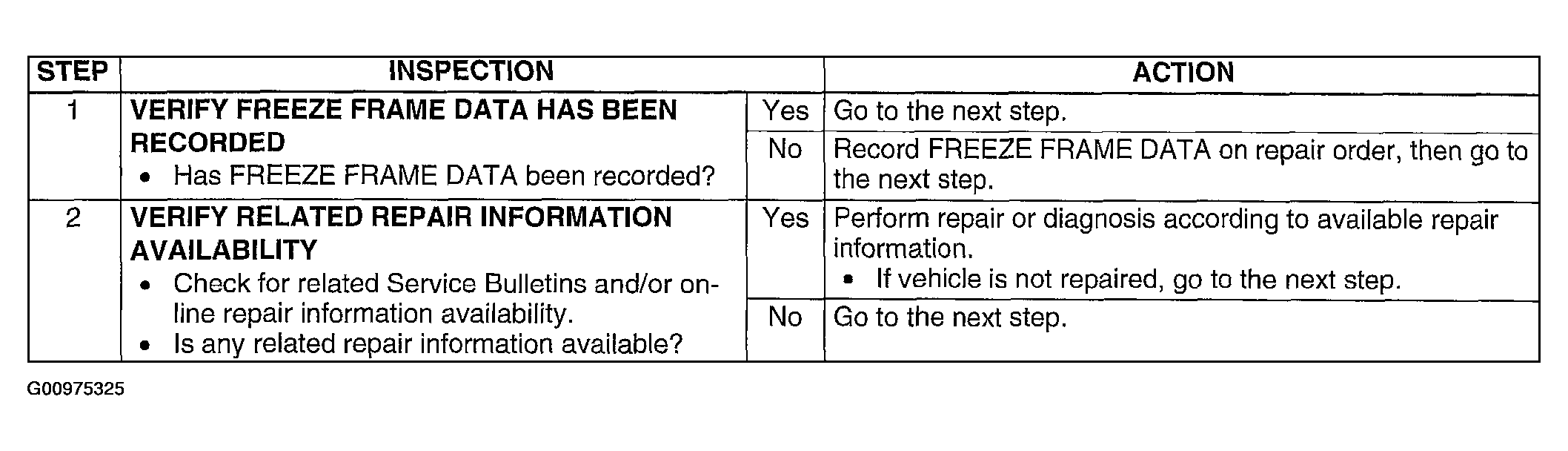

Fig 1: DTC P0610: Diagnostic Procedure Chart (Steps 1 & 2)
G00975325Courtesy of MAZDA MOTORS CORP.

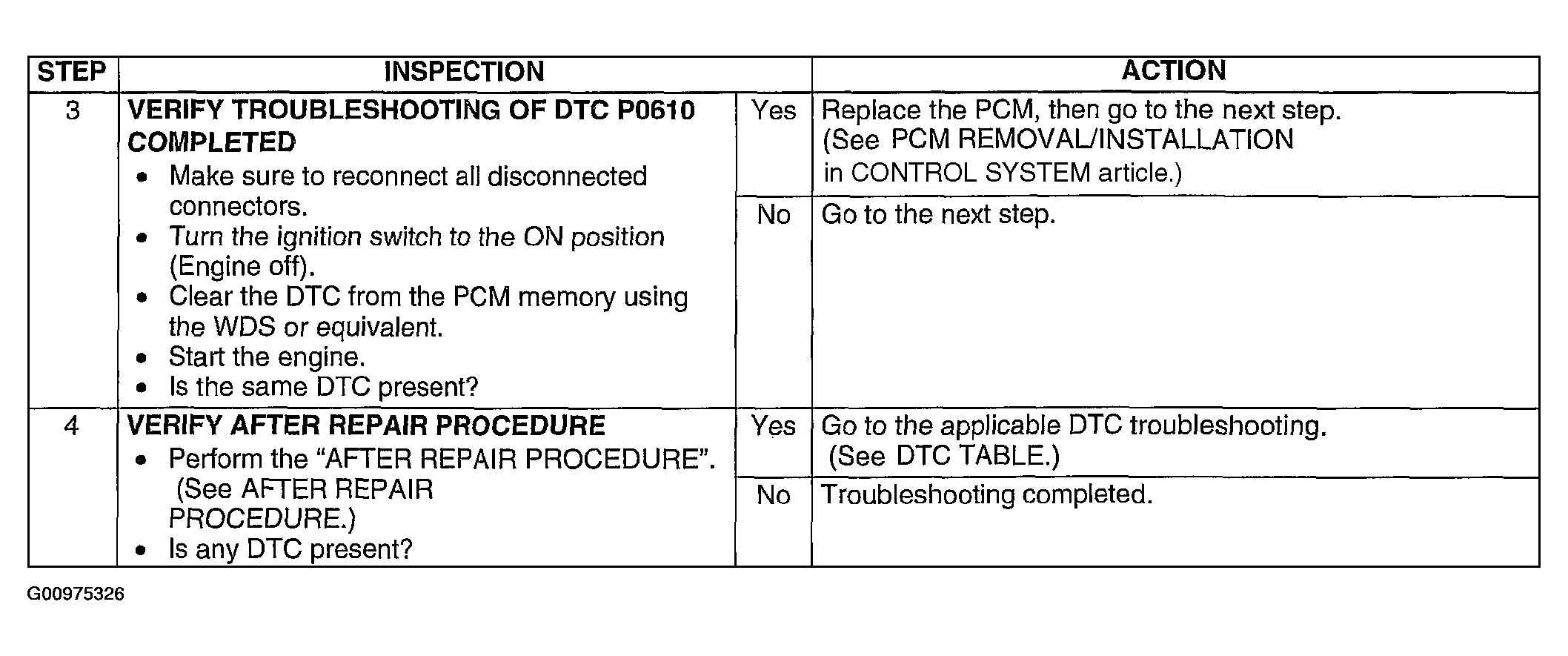

Fig 2: DTC P0610: Diagnostic Procedure Chart (Steps 3 & 4)
G00975326Courtesy of MAZDA MOTORS CORP.
