DTC P0704: Clutch Pedal Position Switch Input Circuit Problem
›
Diagnostic procedure
Diagnostic procedure

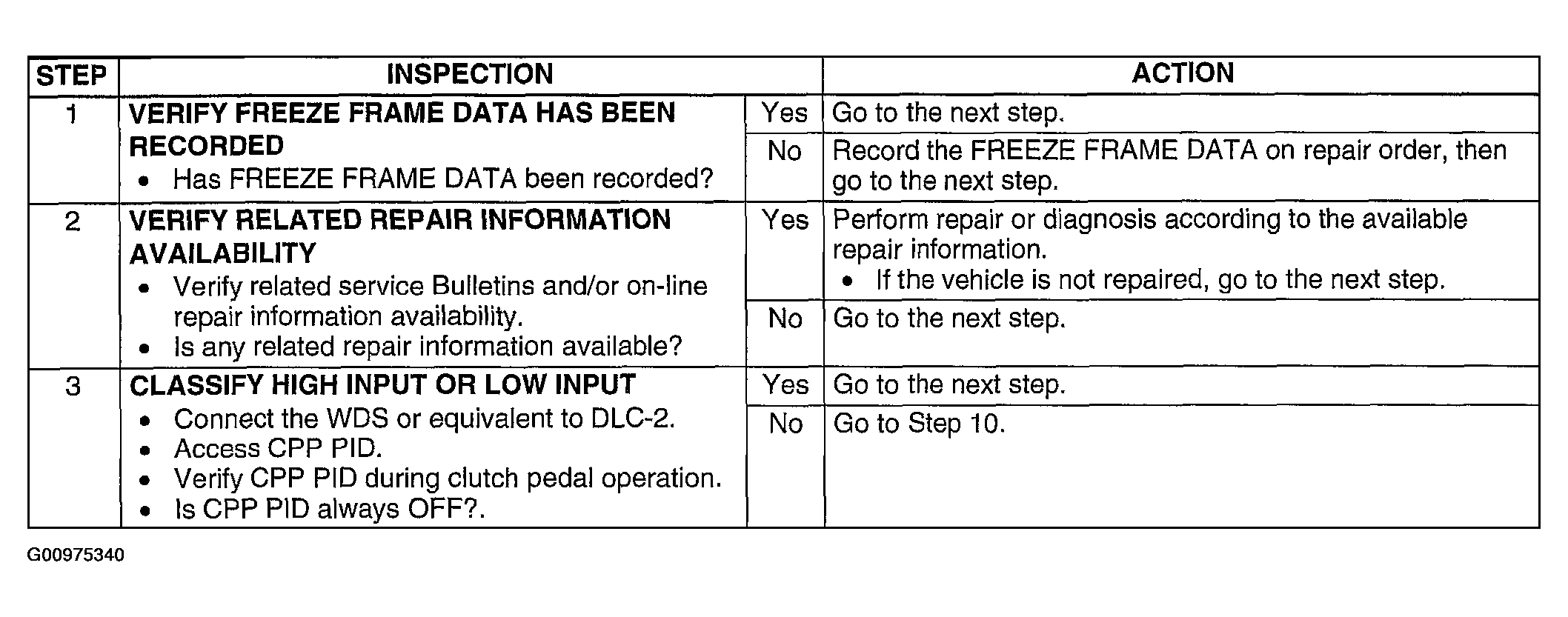

Fig 1: DTC P0704: Diagnostic Procedure Chart (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

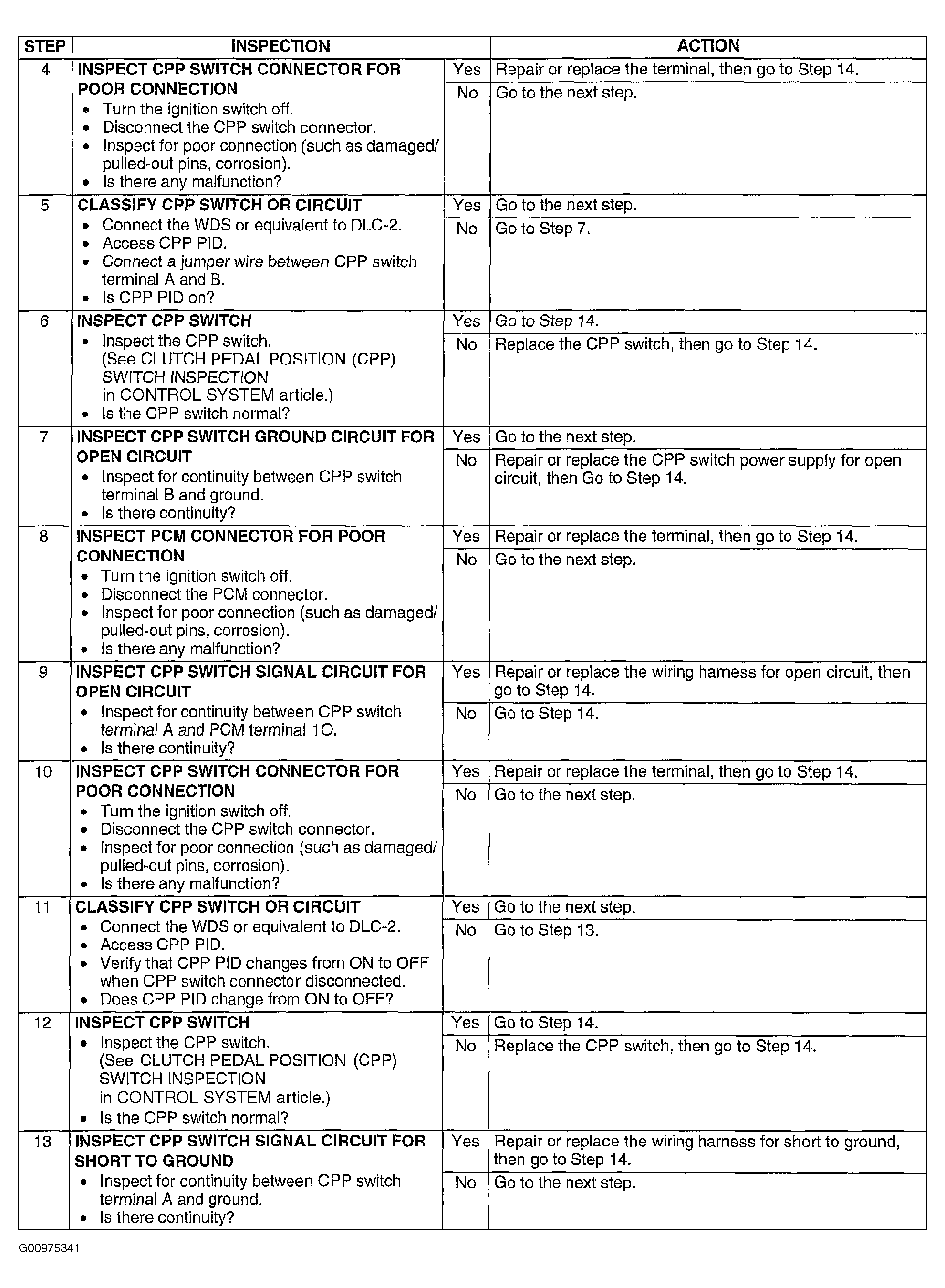

Fig 2: DTC P0704: Diagnostic Procedure Chart (Steps 4-13)
Courtesy of MAZDA MOTORS CORP.

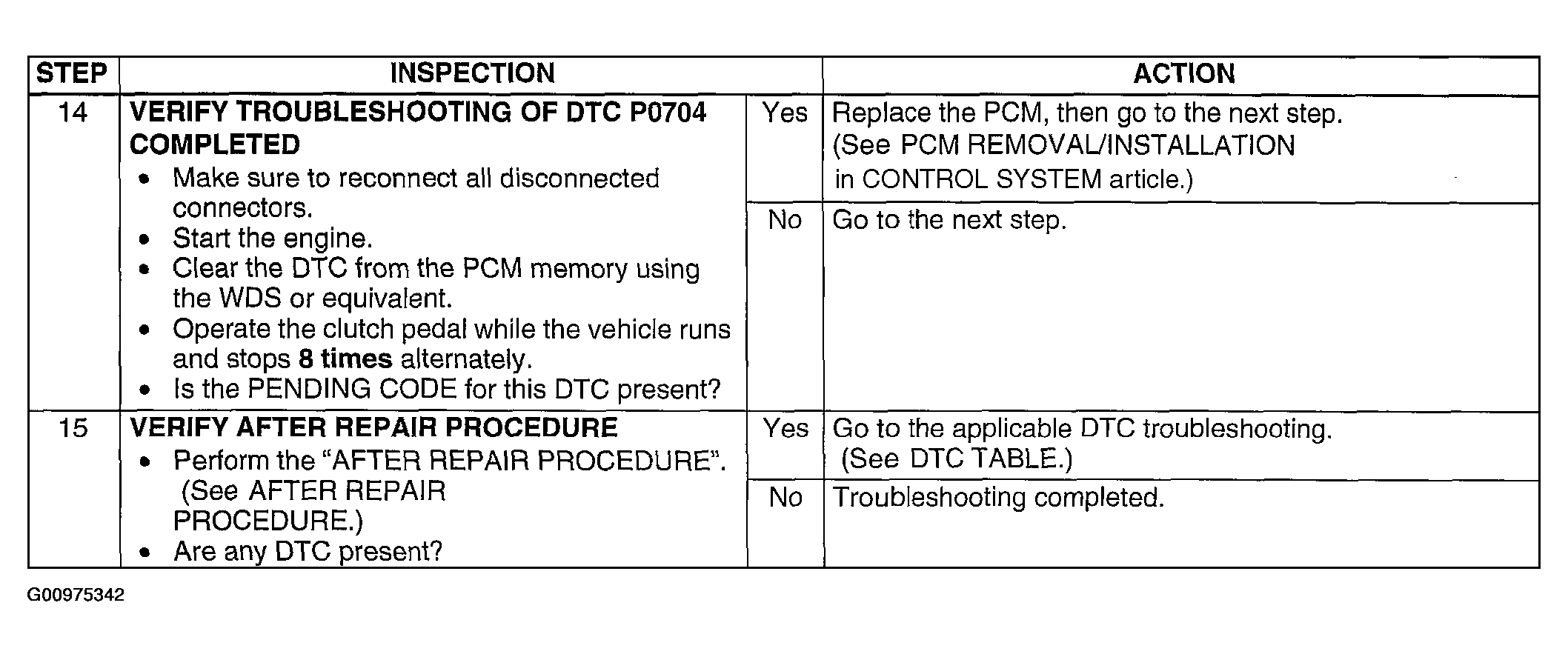

Fig 3: DTC P0704: Diagnostic Procedure Chart (Steps 14 & 15)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
