On-Board Diagnostic [Engine Control System]
›
DTC P2127: App Sensor No. 2 Circuit Low Input
›
Diagnostic procedure
Diagnostic procedure

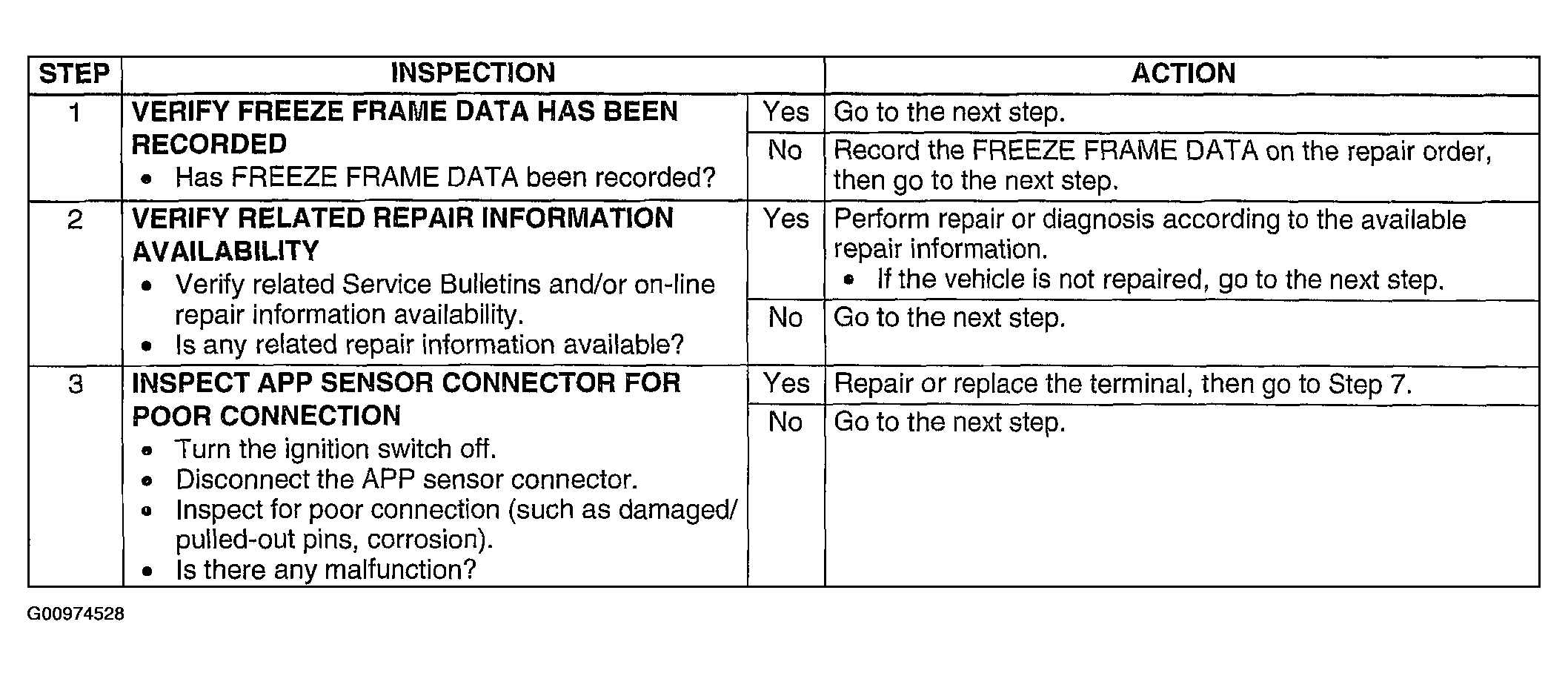

Fig 1: DTC P2127: Diagnostic Procedure Chart (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

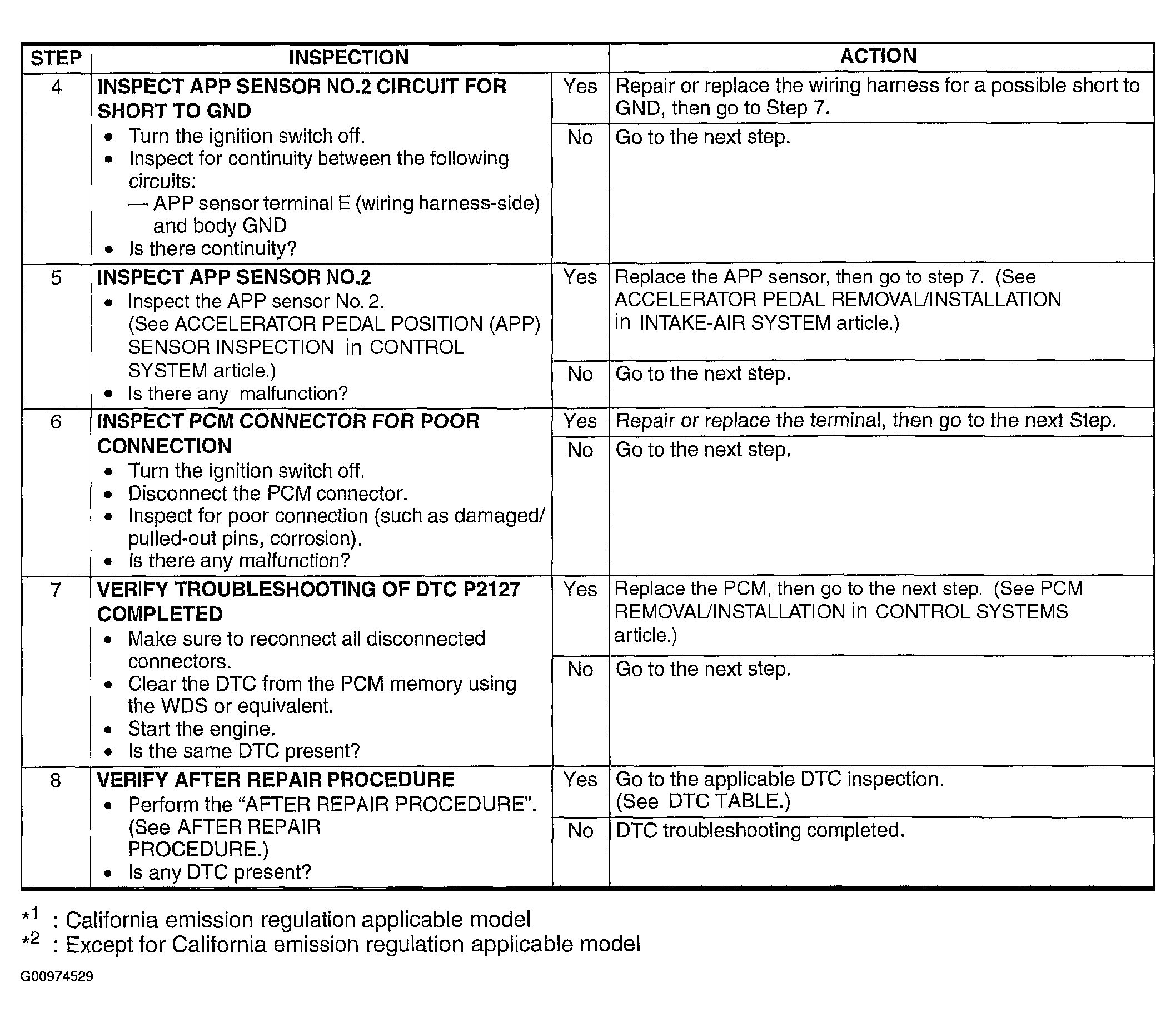

Fig 2: DTC P2127: Diagnostic Procedure Chart (Steps 4-8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
