Diagnostic procedure

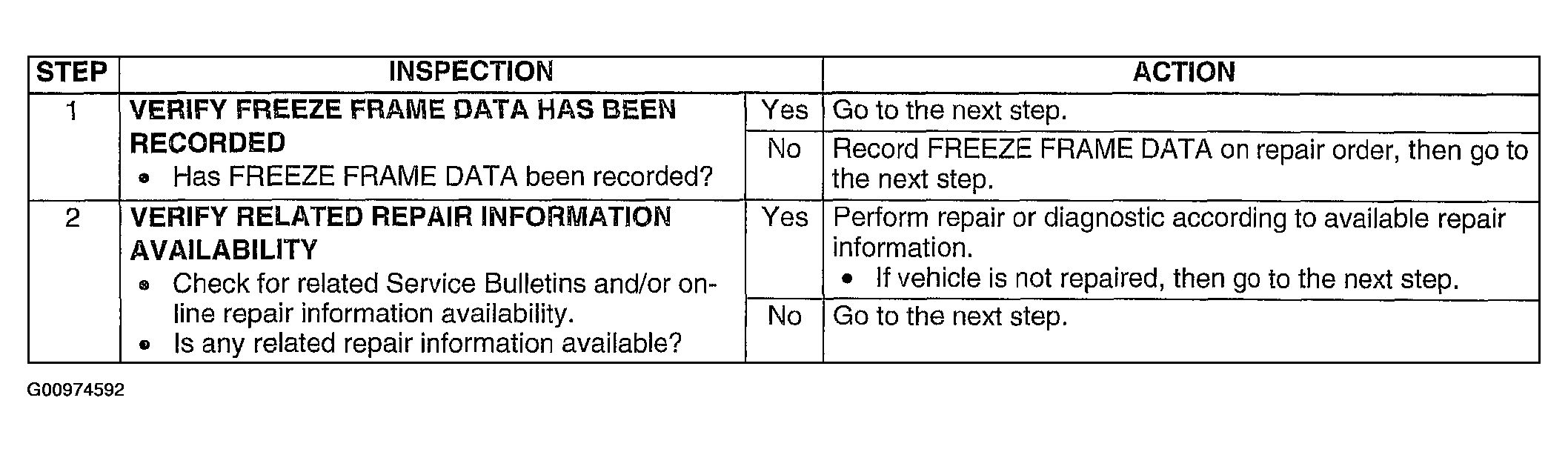

Fig 1: DTC P2404: Diagnostic Procedure Chart (Steps 1 & 2)
G00974592Courtesy of MAZDA MOTORS CORP.

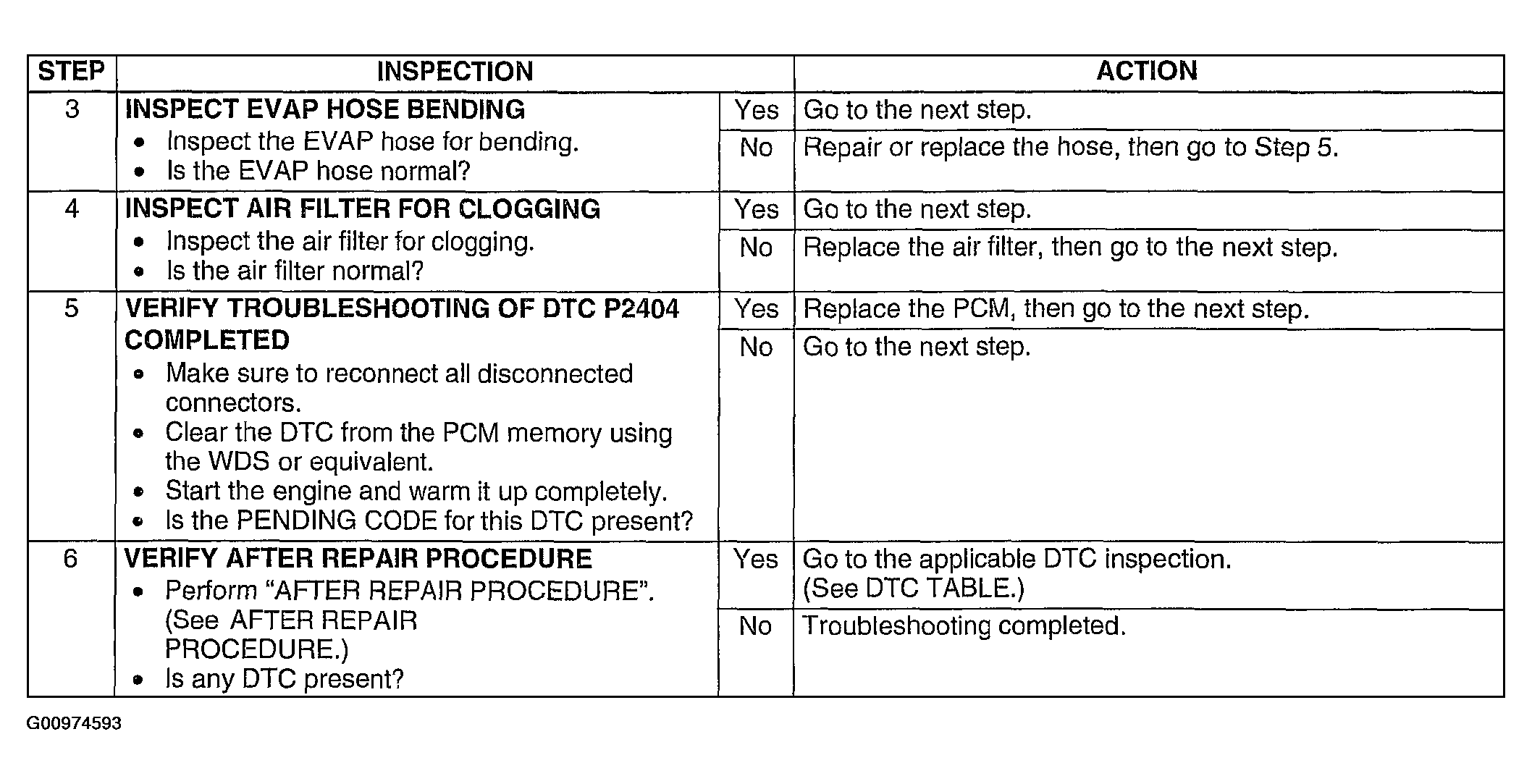

Fig 2: DTC P2404: Diagnostic Procedure Chart (Steps 3-6)
G00974593Courtesy of MAZDA MOTORS CORP.
