Back-Up Light Switch And TR Switch Connector End View
Back-Up Light Switch And TR Switch Connector End View

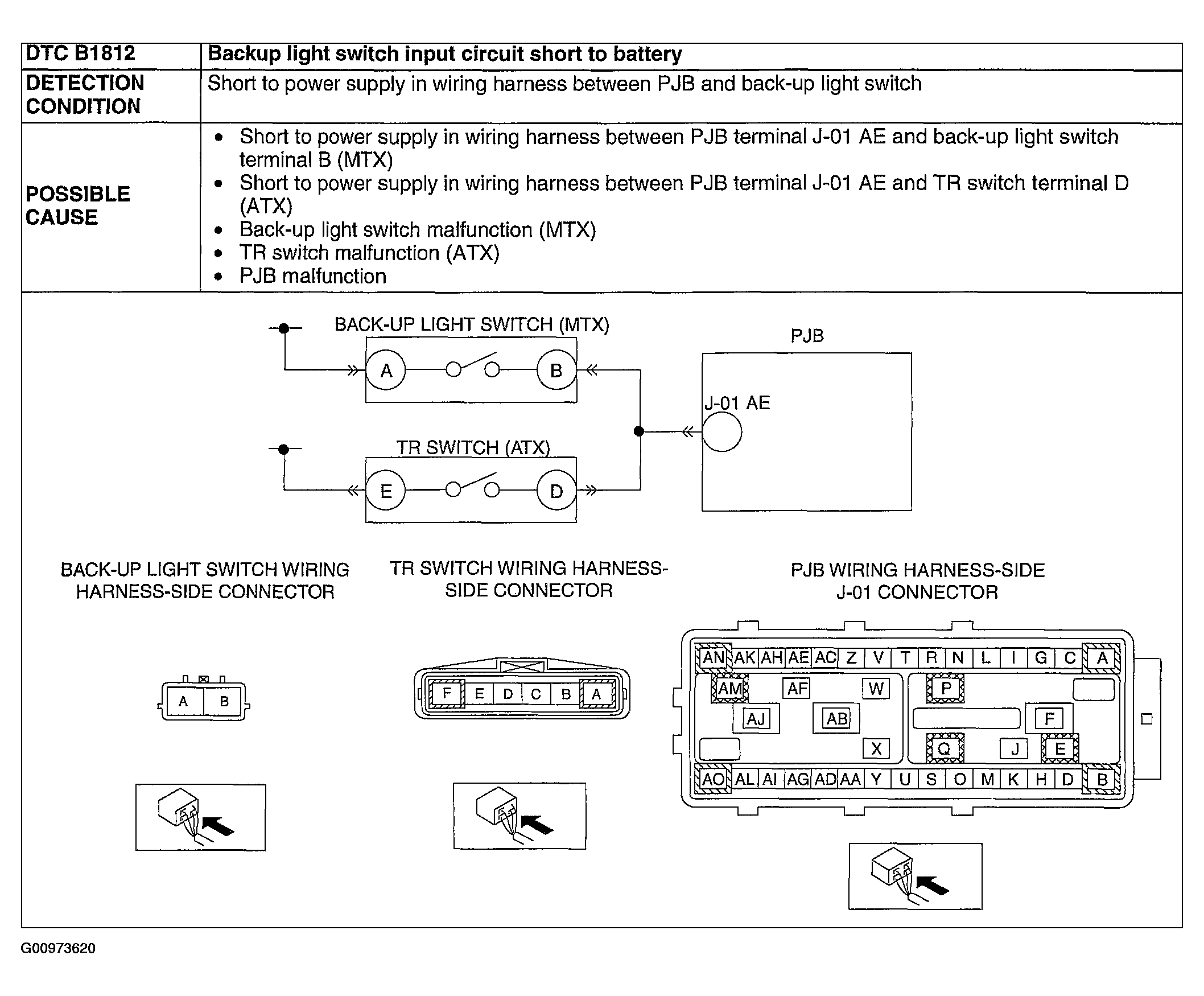

Fig 1: Back-Up Light Switch And TR Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
