Manual Transaxle [Shift Mechanism]
›
Shift Mechanism Removal/Installation
›
Main Shift Cable and Main Select Cable Removal Note
Main Shift Cable and Main Select Cable Removal Note
Remove the both shift cable end and select cable end using a fastener remover.

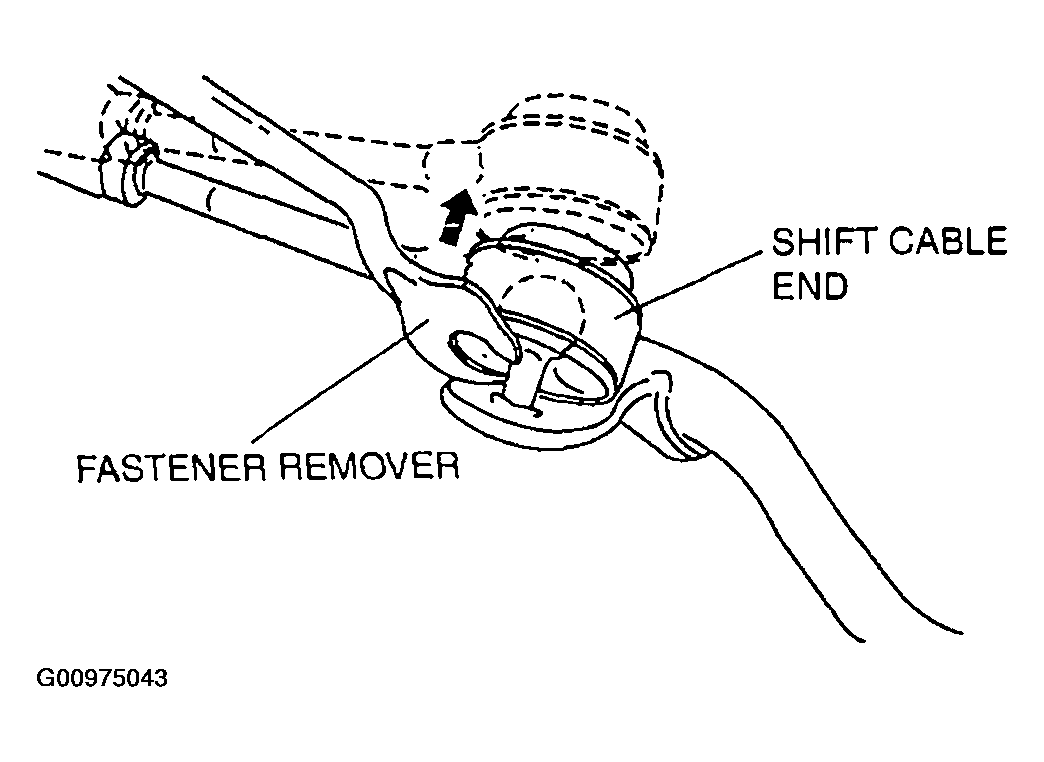

Fig 1: Removing Shift Cable End And Select Cable End Using A Wrench
Courtesy of MAZDA MOTORS CORP.
