Technical Data

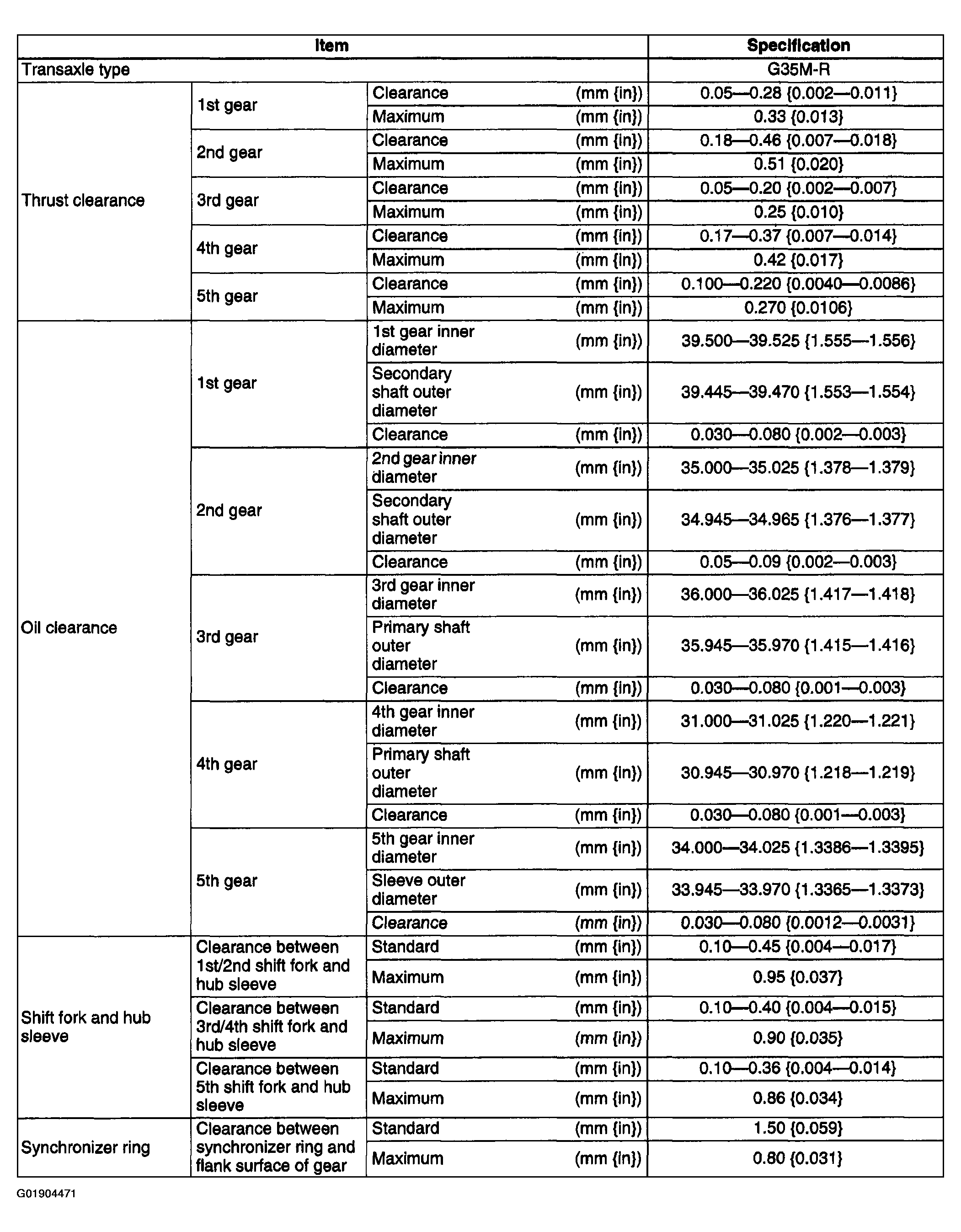

Fig 1: Technical Data - G35M-R (1 Of 2)
G01904471Courtesy of MAZDA MOTORS CORP.

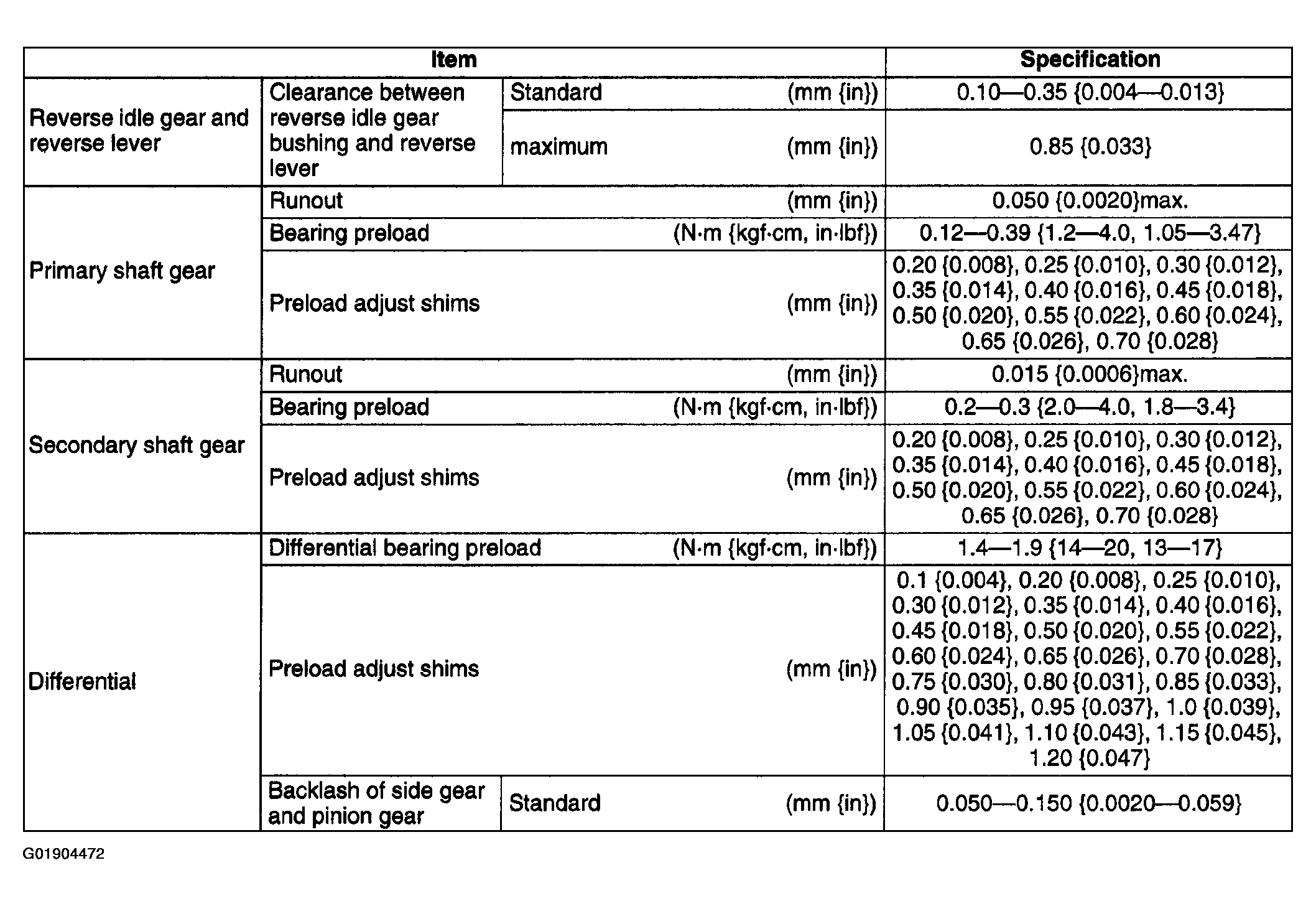

Fig 2: Technical Data - G35M-R (2 Of 2)
G01904472Courtesy of MAZDA MOTORS CORP.
