Inspection Using An Oscilloscope (Reference)
›
Shift solenoid C signal
Shift solenoid C signal
PCM terminals
1D (+)-Negative battery terminal (-)
Oscilloscope setting
5 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
1GR or 2GR

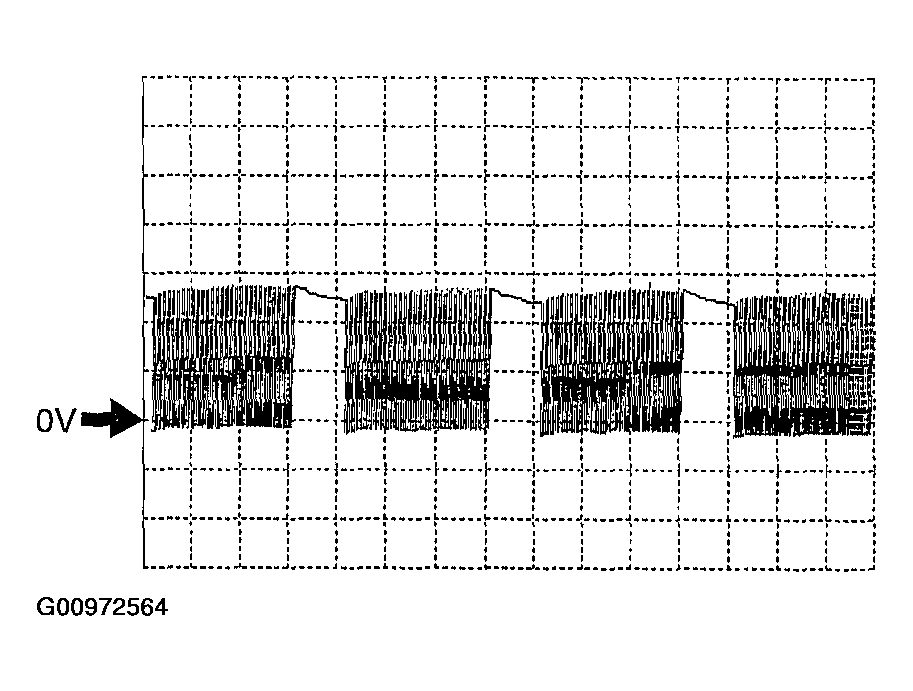

Fig 1: Inspection Graph Of Shift Solenoid C Signal Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
