DTC P0133: Front Ho2S Circuit Problem
›
Diagnostic Procedure
Diagnostic Procedure

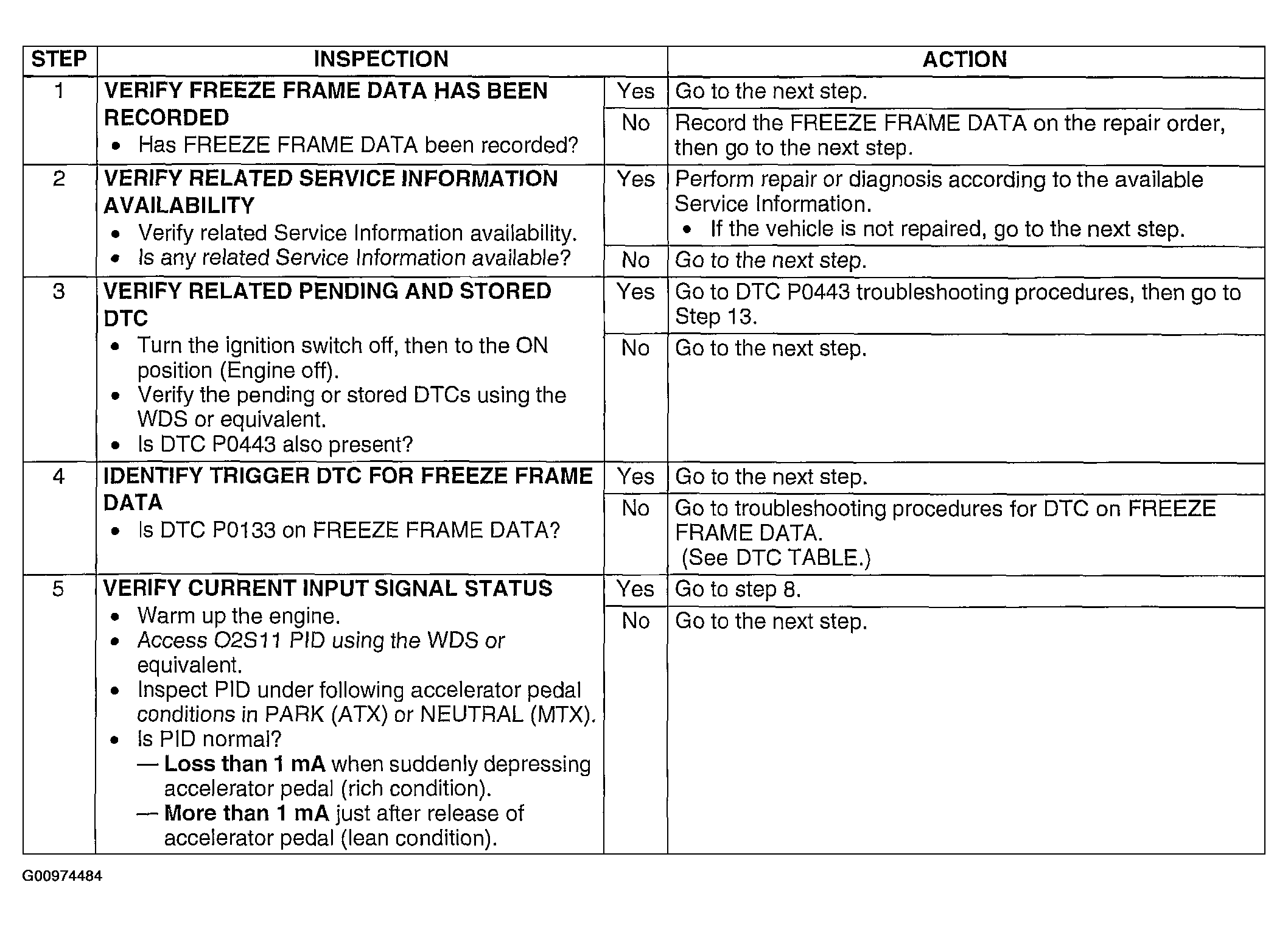

Fig 1: DTC P0133: Diagnostic Procedure Chart (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

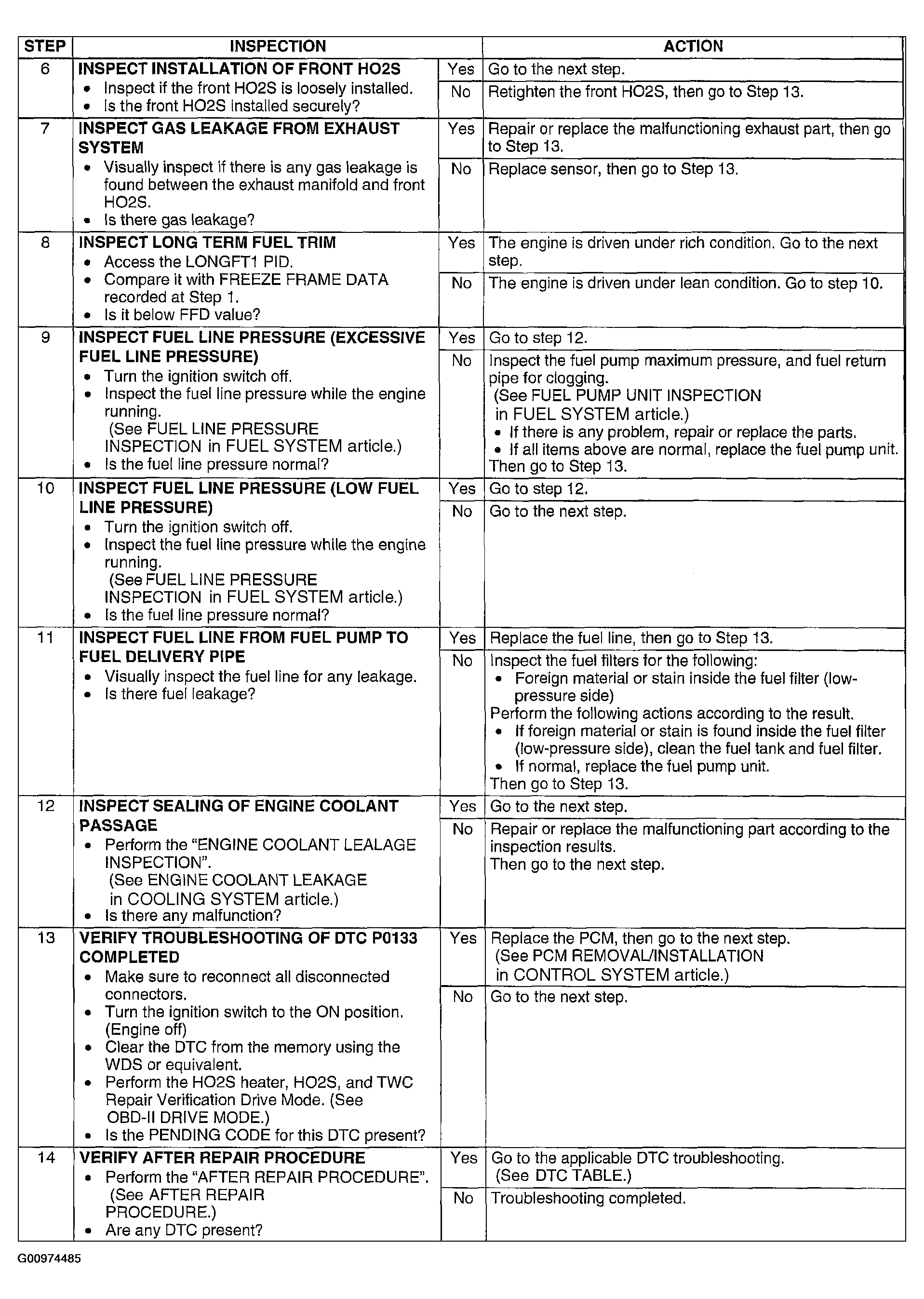

Fig 2: DTC P0133: Diagnostic Procedure Chart (Steps 6-14)
Courtesy of MAZDA MOTORS CORP.

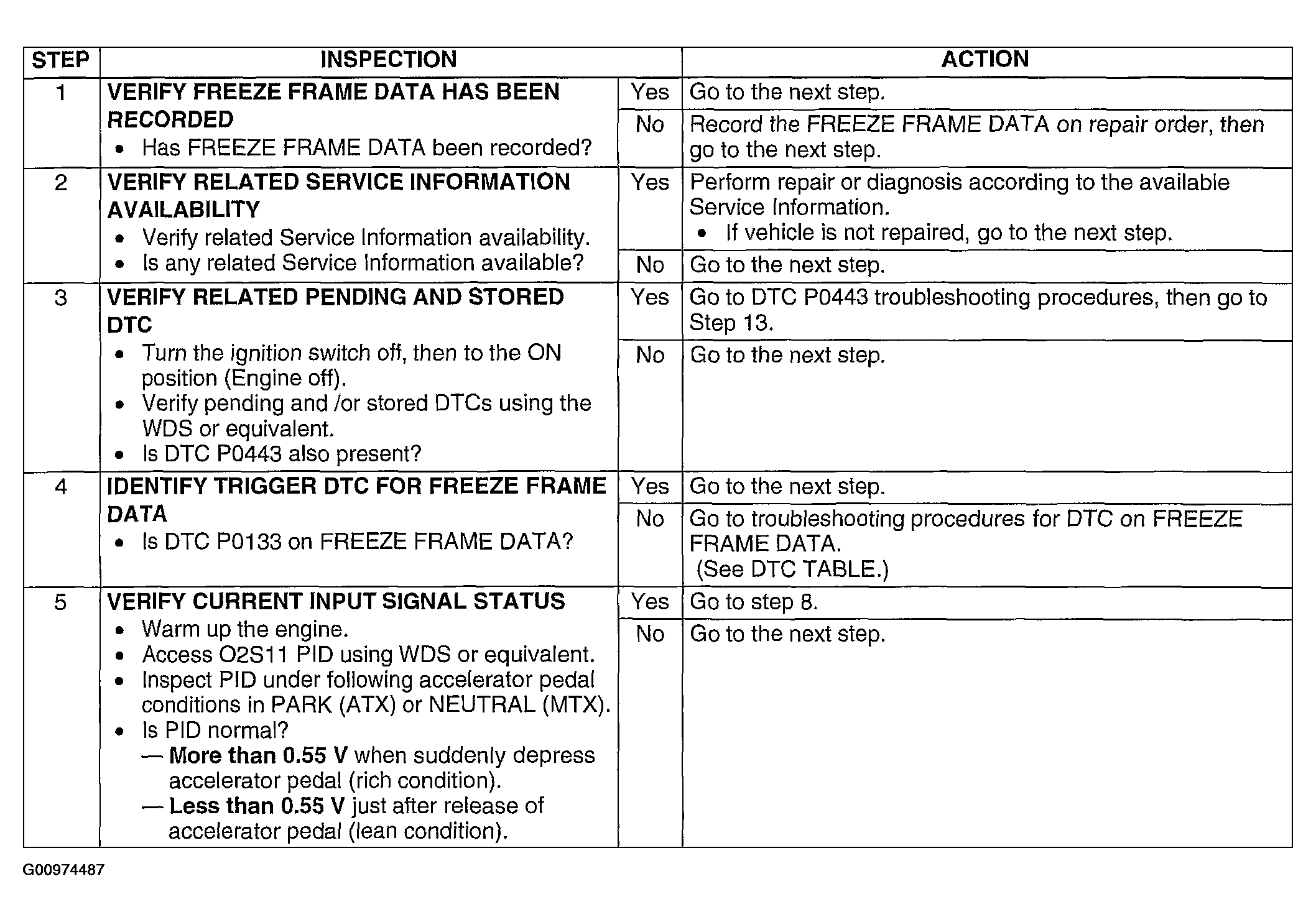

Fig 1: DTC P0133: Diagnostic Procedure Chart (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

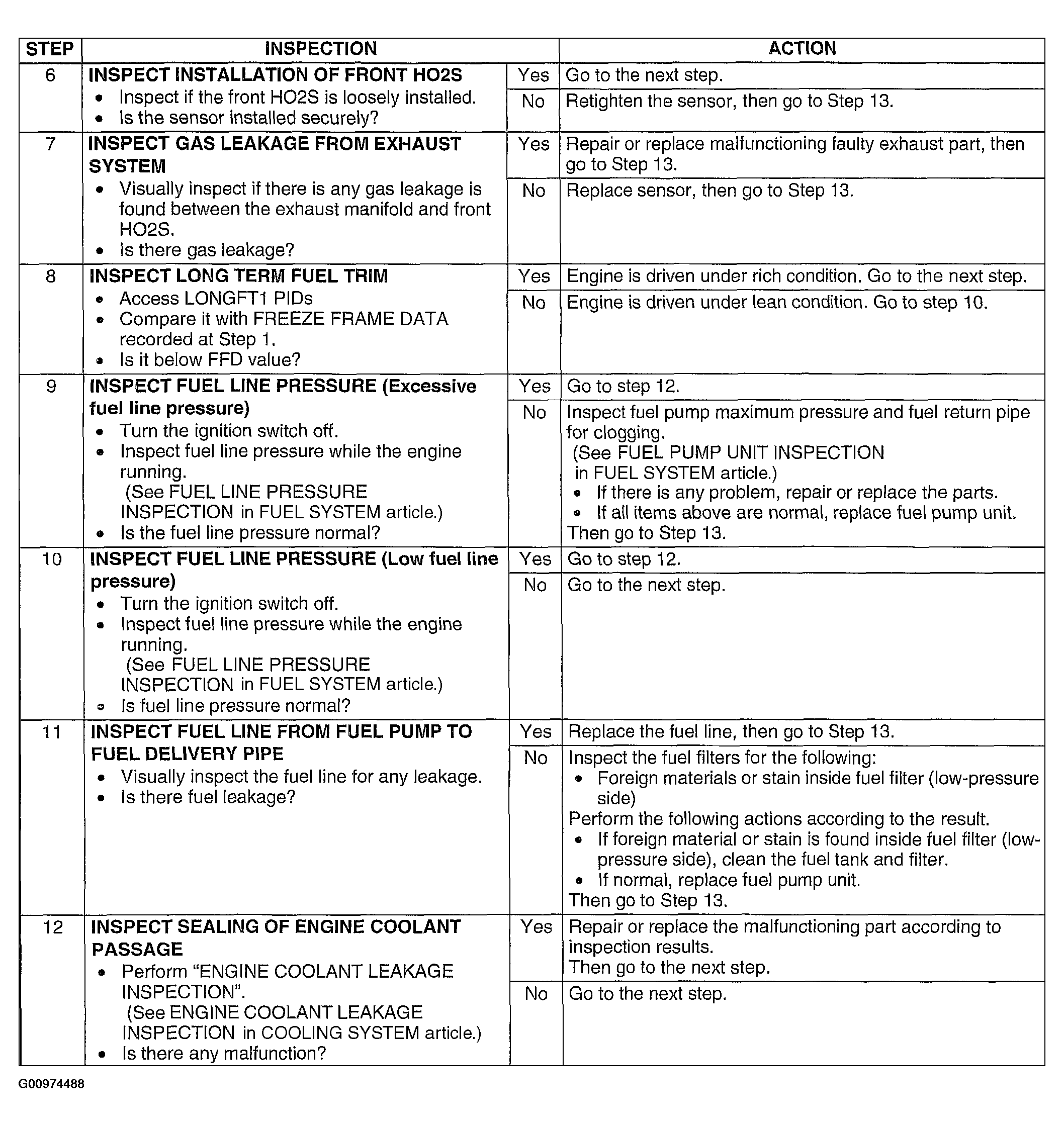

Fig 2: DTC P0133: Diagnostic Procedure Chart (Steps 6-12)
Courtesy of MAZDA MOTORS CORP.

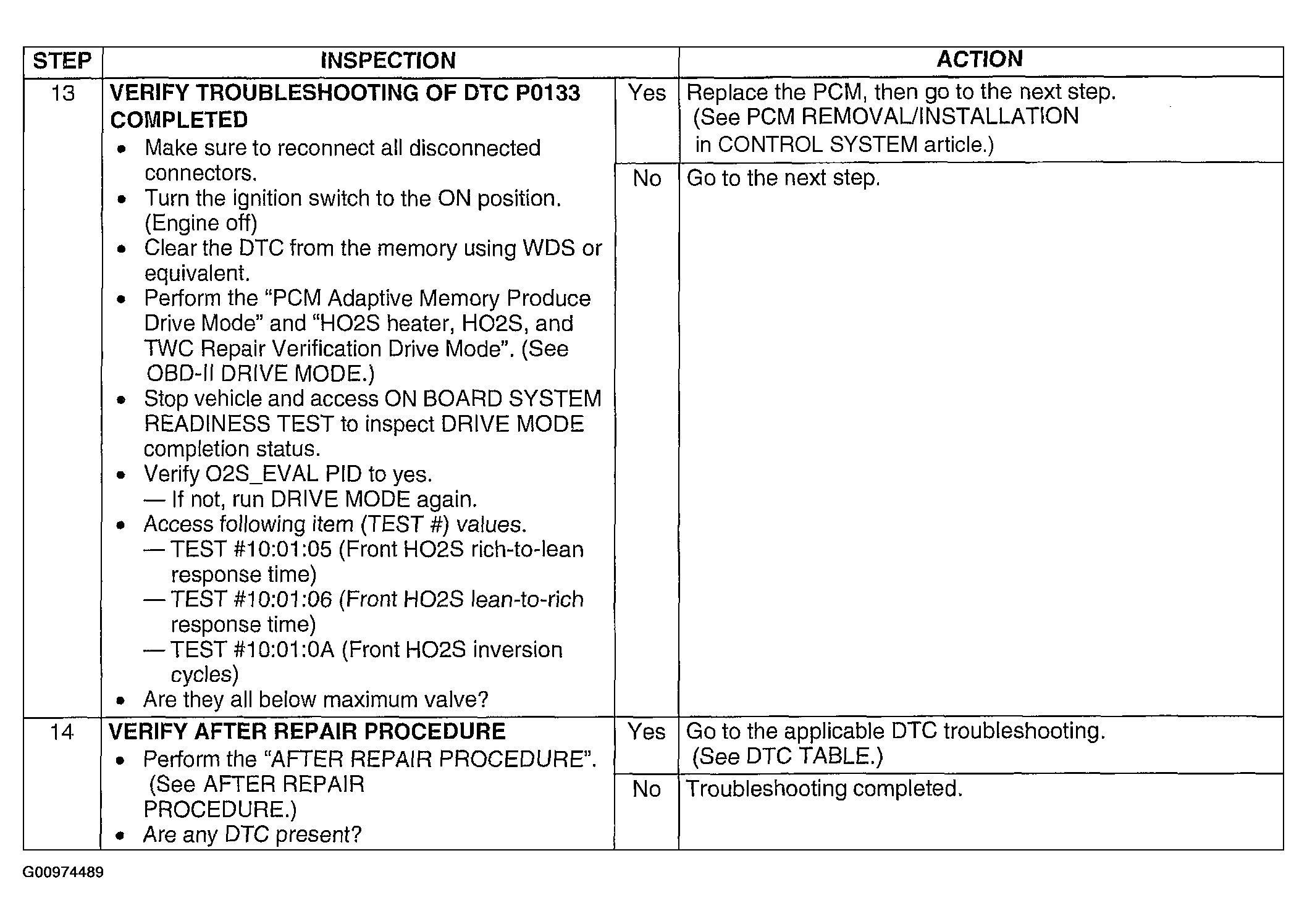

Fig 3: DTC P0133: Diagnostic Procedure Chart (Steps 13 & 14)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
