DTC P0480: Fan Control Circuit Problem
›
Diagnostic procedure
Diagnostic procedure

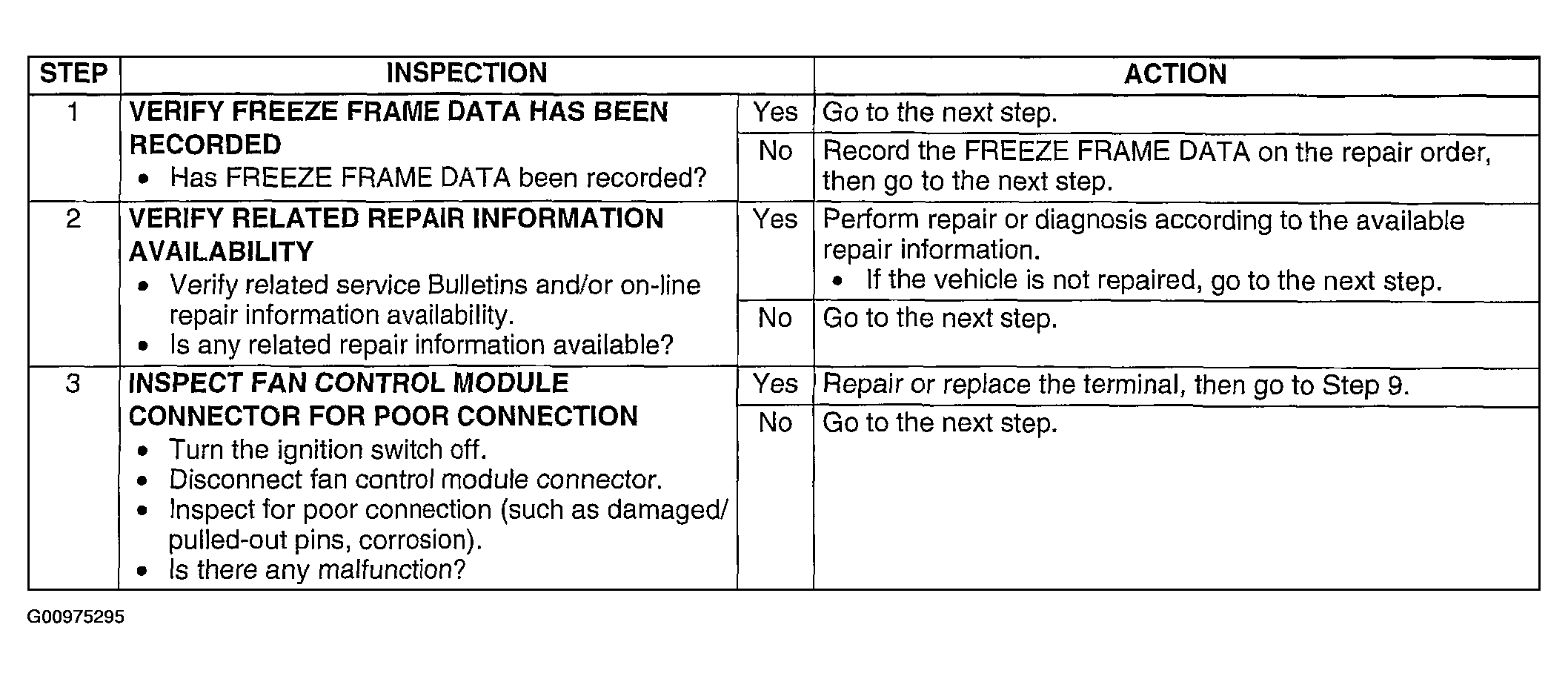

Fig 1: DTC P0480: Diagnostic Procedure Chart (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

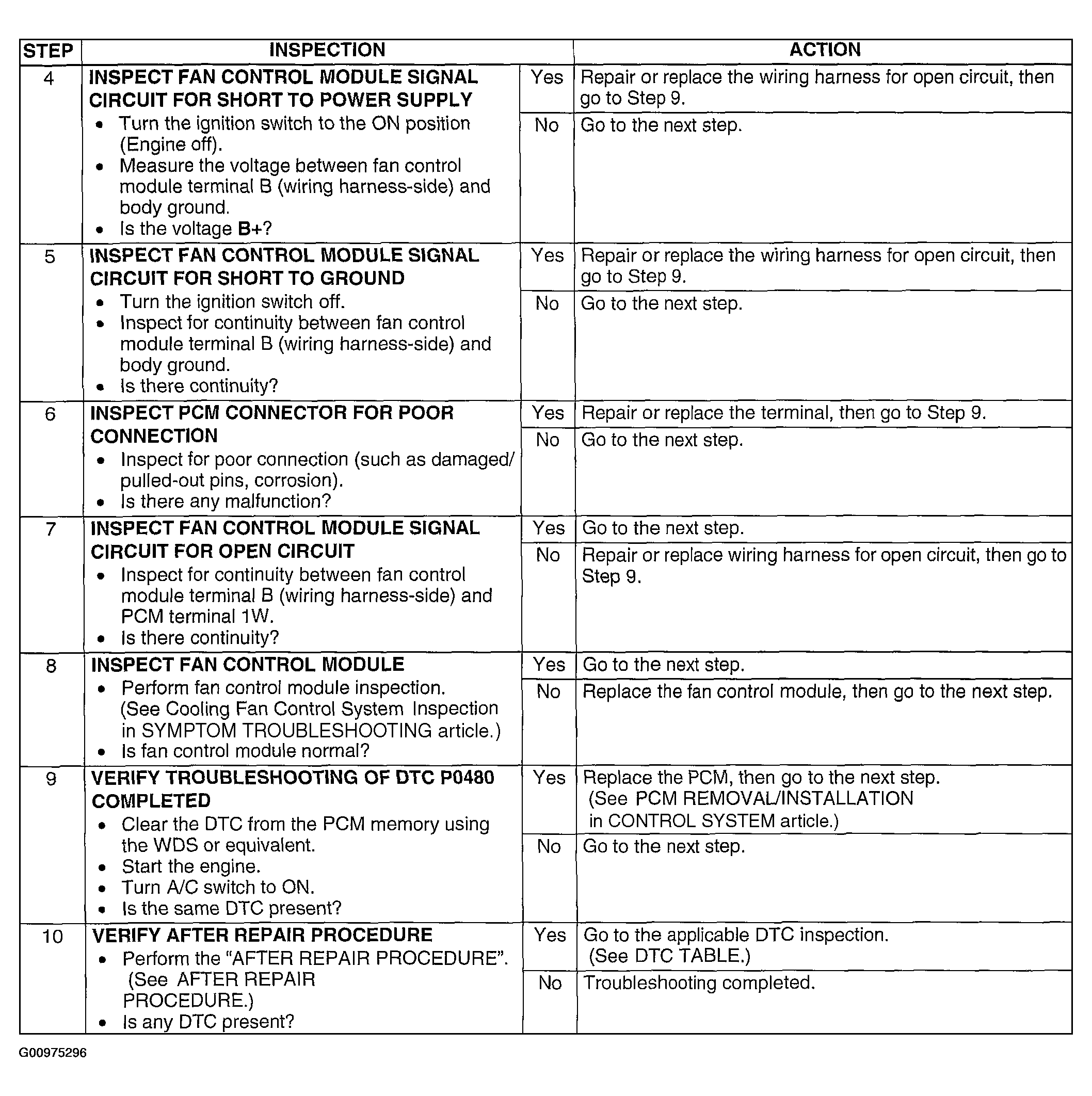

Fig 2: DTC P0480: Diagnostic Procedure Chart (Steps 4-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
