DTC P0703: Brake Switch Input Circuit Problem
›
Diagnostic procedure
Diagnostic procedure

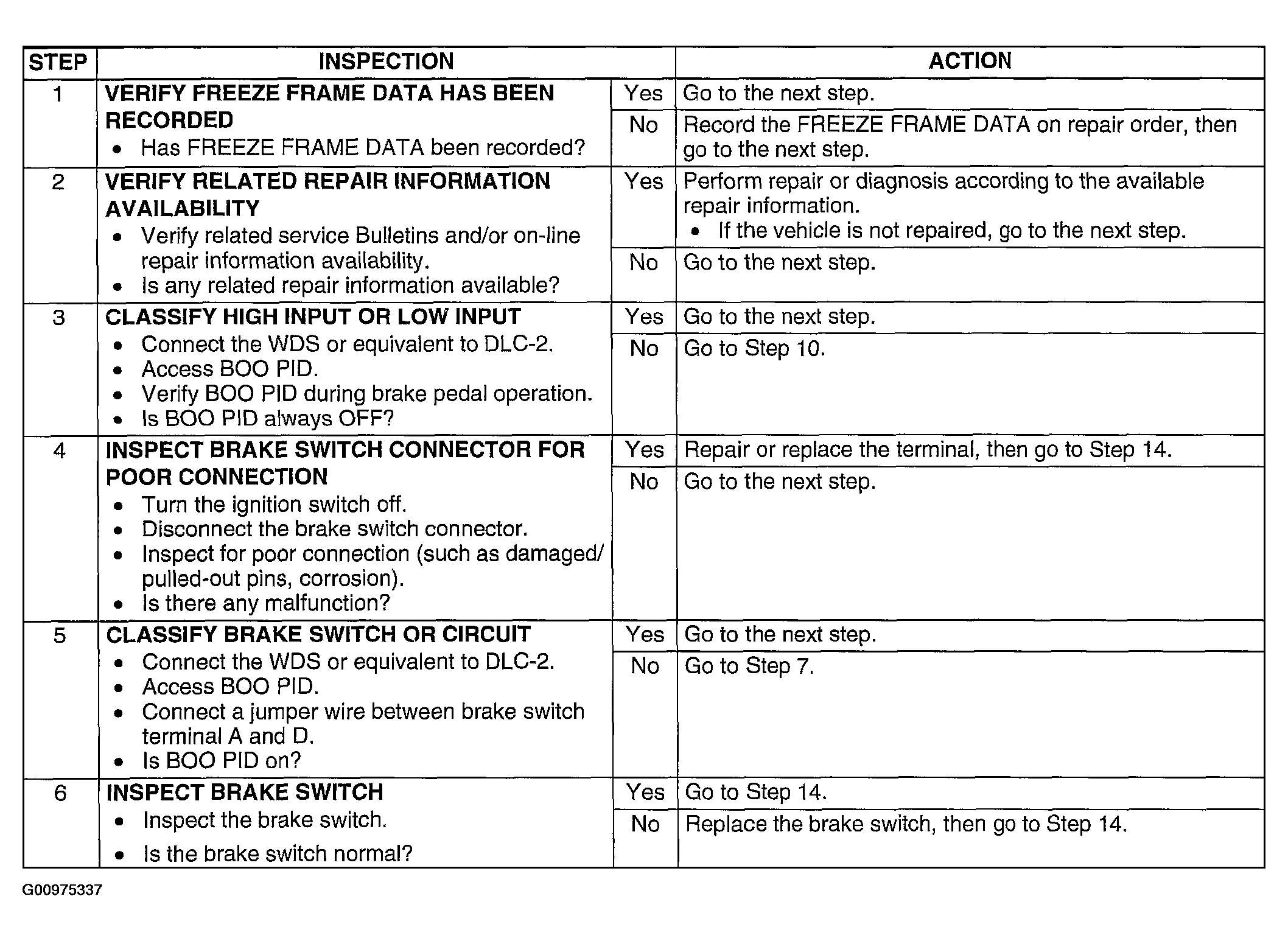

Fig 1: DTC P0703: Diagnostic Procedure Chart (Steps 1-6)
Courtesy of MAZDA MOTORS CORP.

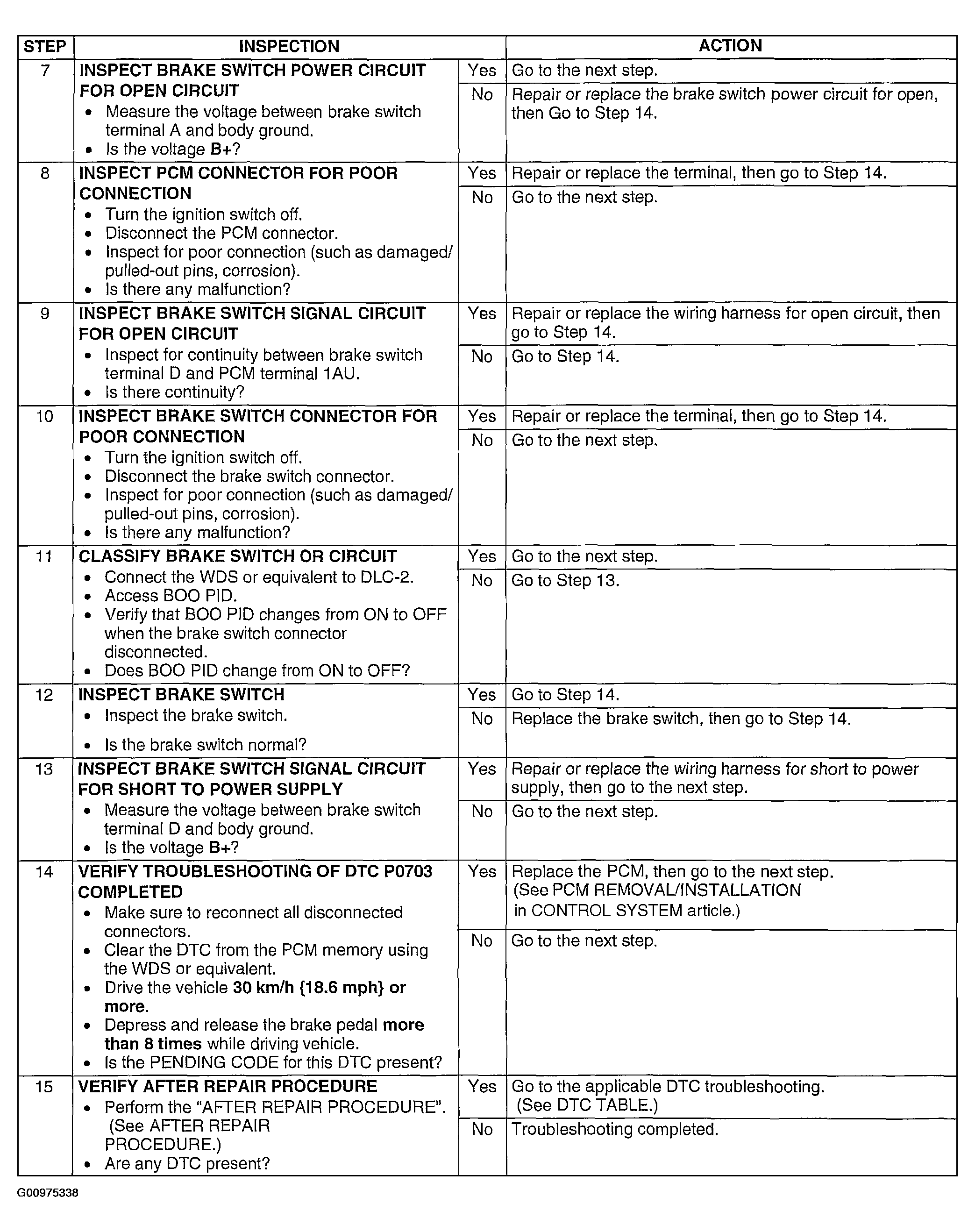

Fig 2: DTC P0703: Diagnostic Procedure Chart (Steps 7-15)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
