Diagnostic procedure

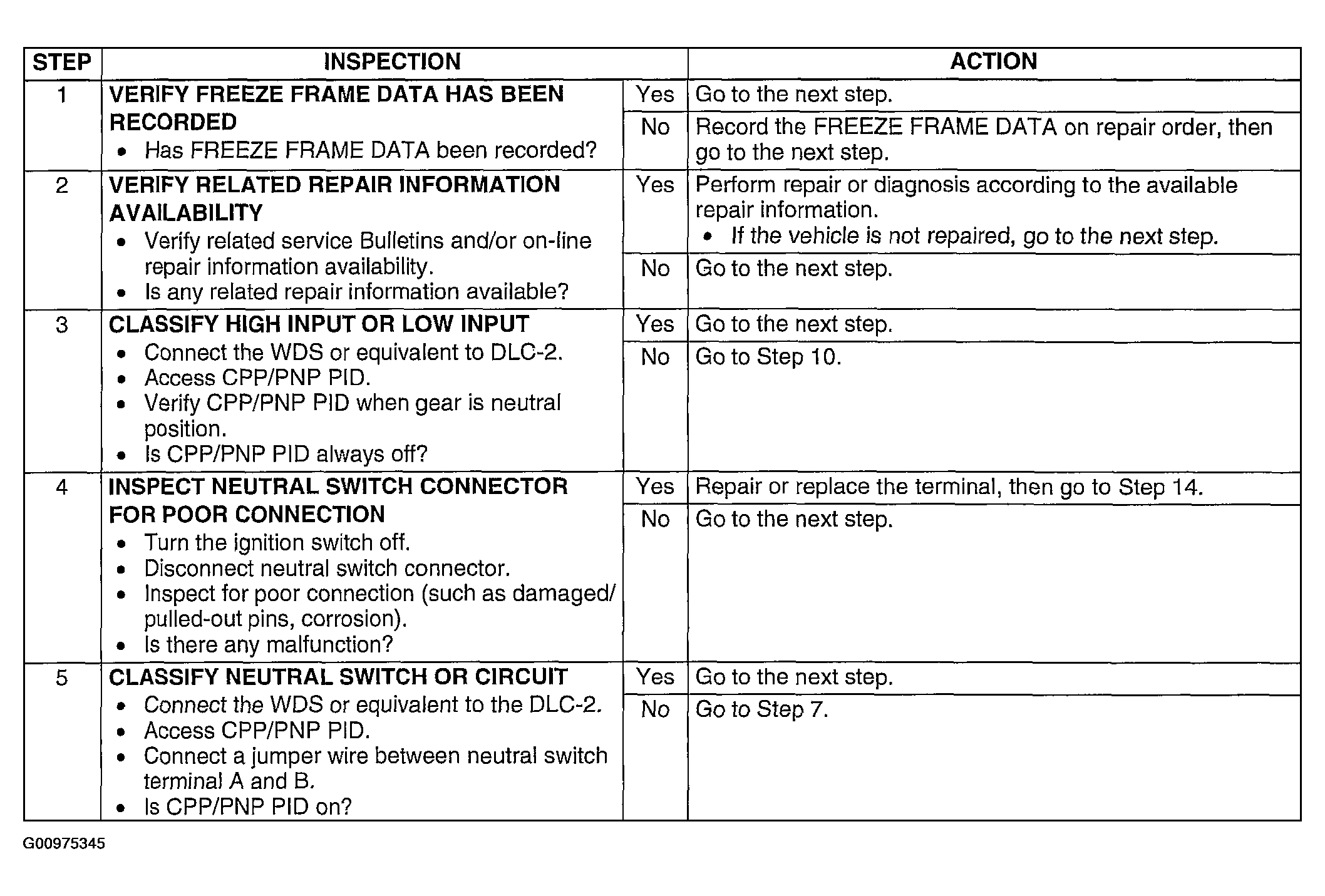

Fig 1: DTC P0850: Diagnostic Procedure Chart (Steps 1-5)
G00975345Courtesy of MAZDA MOTORS CORP.

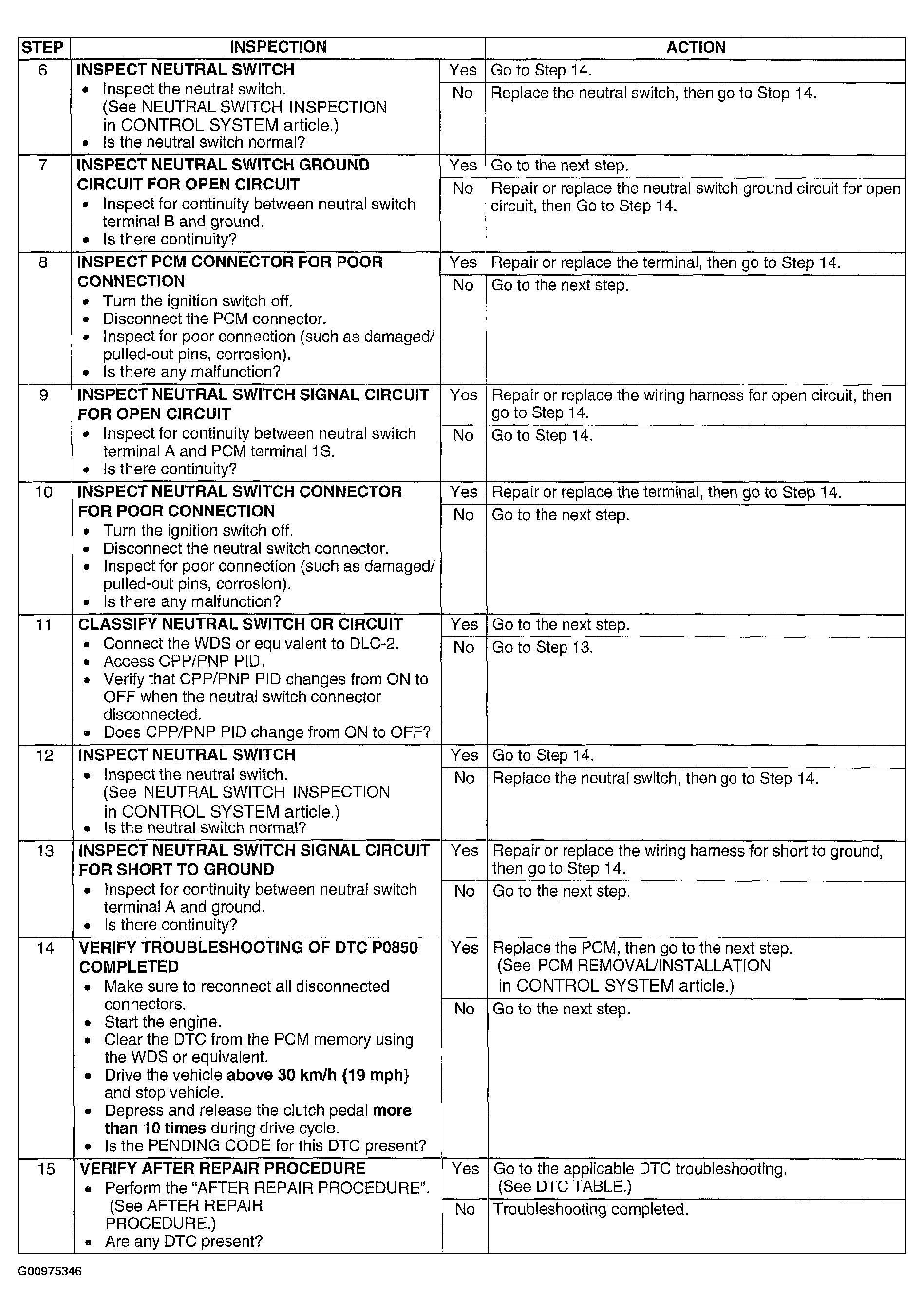

Fig 2: DTC P0850: Diagnostic Procedure Chart (Steps 6-15)
G00975346Courtesy of MAZDA MOTORS CORP.
