Fuel Injector Operation Inspection

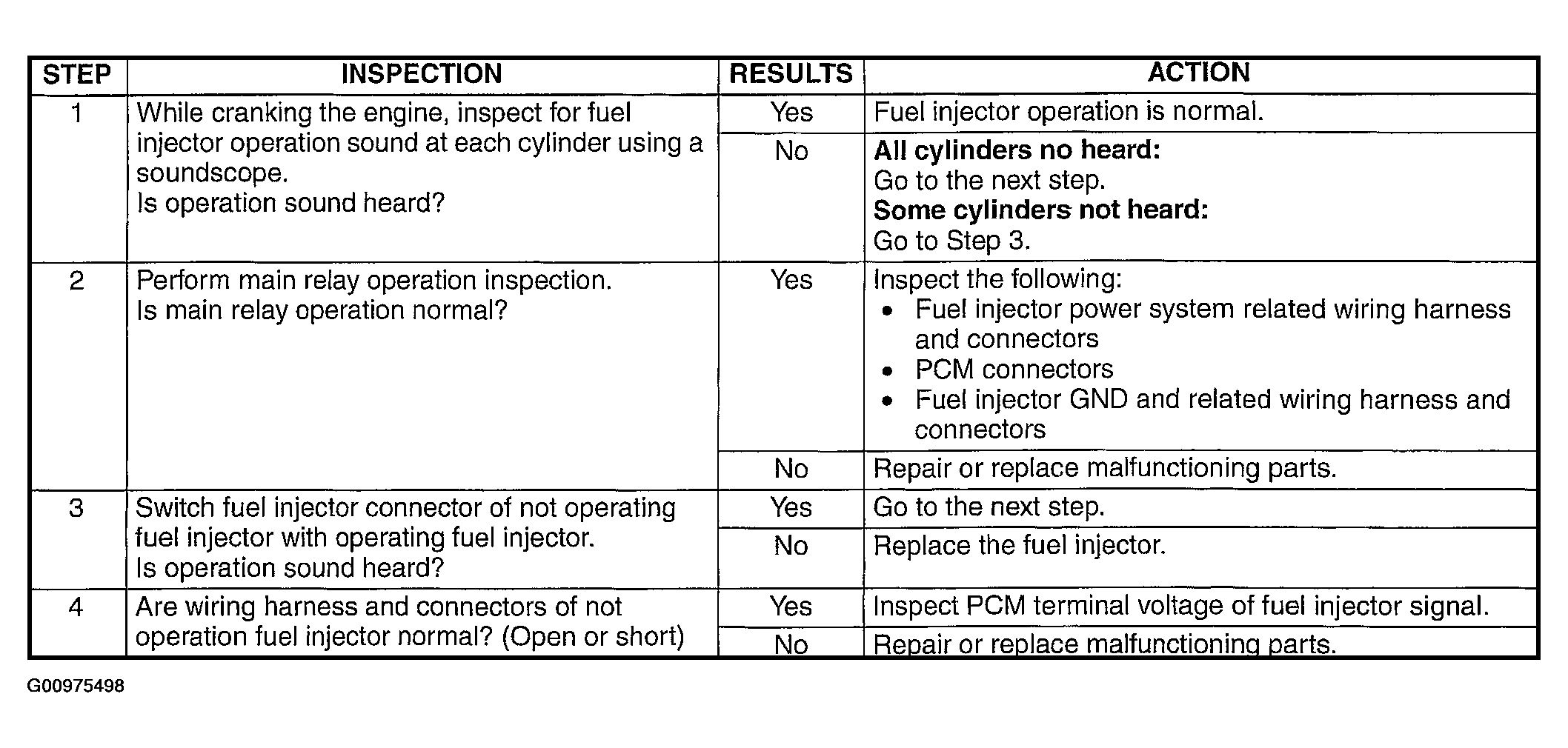

Fig 1: Inspecting Fuel Injector Operation
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
