Selector Lever Component Installation Note

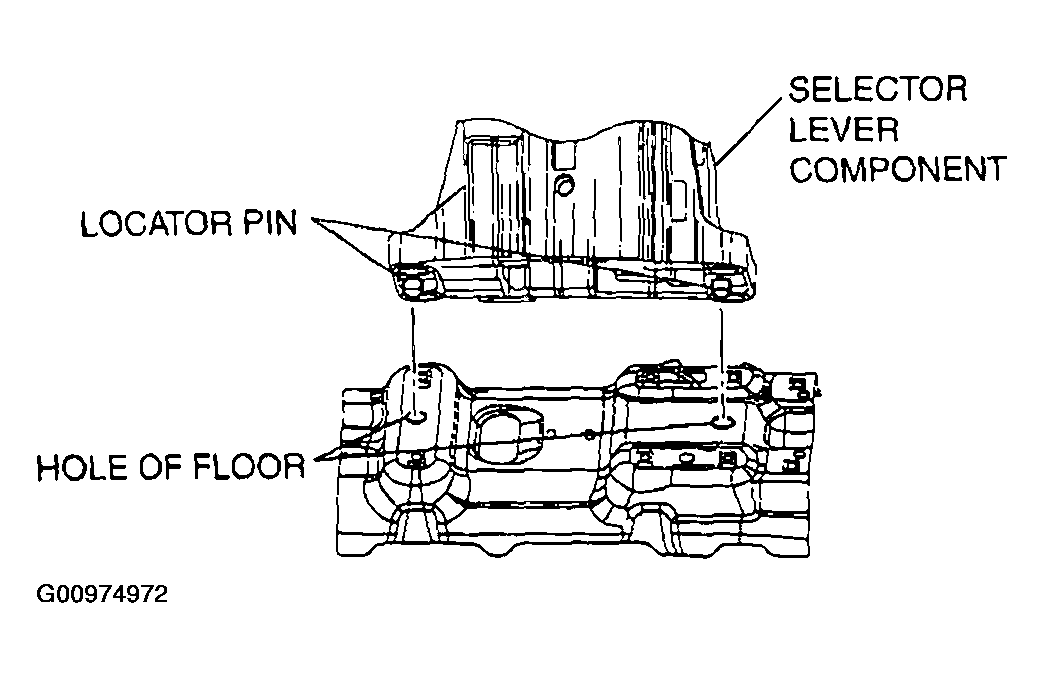

- Insert the location pin of selector lever component to the hole of the floor.
- Tighten the selector lever component installation bolts.
- Tightening torque 7.8-10.8 N.m {79.6-110.1 kgf.cm, 69.1-95.5 in.lbf}
Courtesy of MAZDA MOTORS CORP.
