Diagnostic Procedure

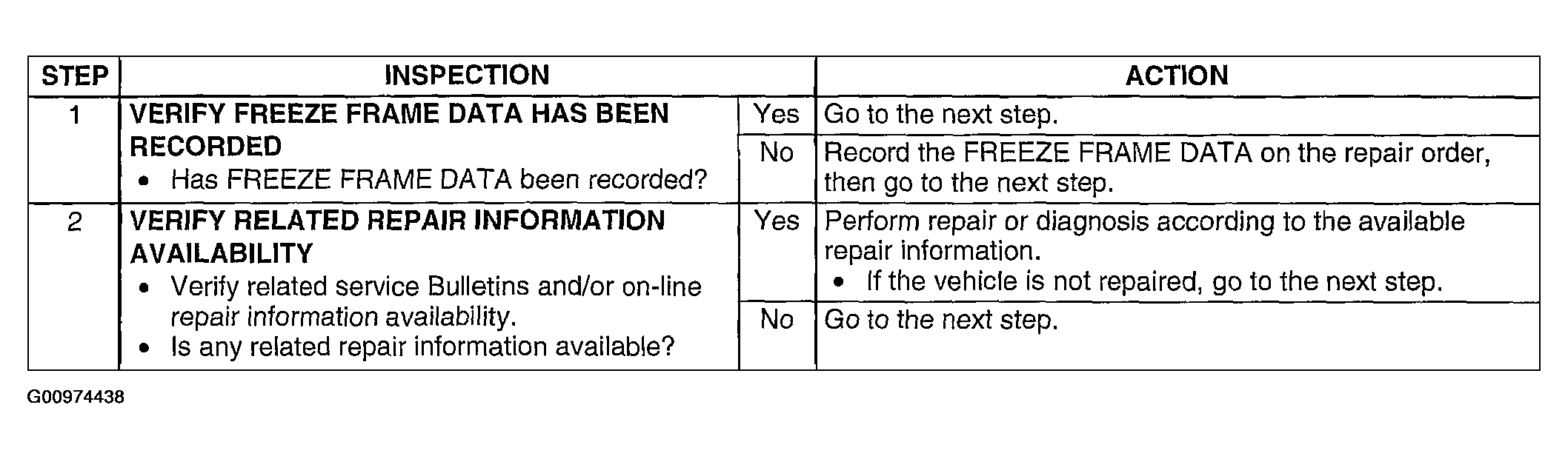

Fig 1: DTC P0107: Diagnostic Procedure Chart (Steps 1 & 2)
G00974438Courtesy of MAZDA MOTORS CORP.

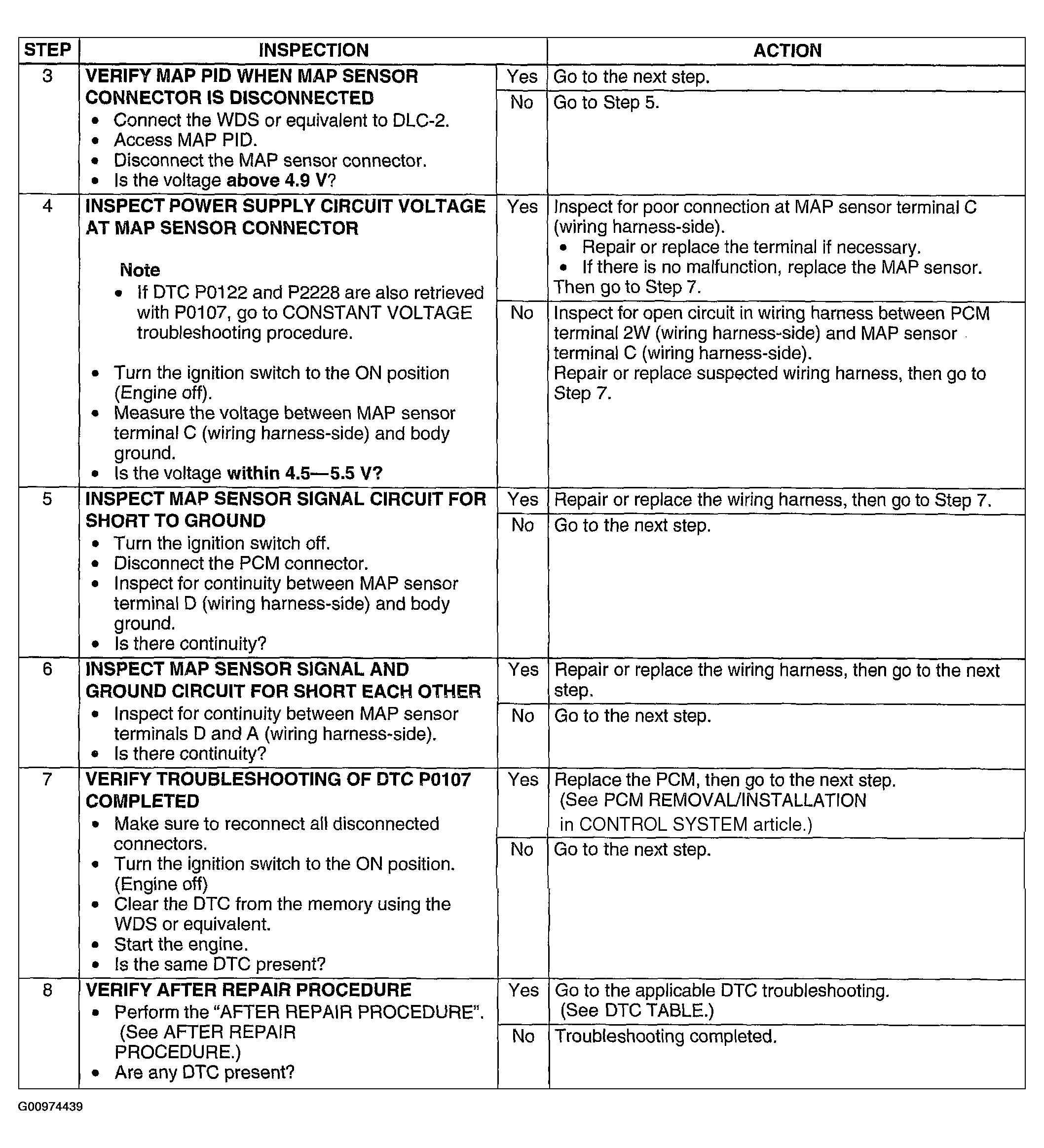

Fig 2: DTC P0107: Diagnostic Procedure Chart (Steps 3-8)
G00974439Courtesy of MAZDA MOTORS CORP.
