DTC P0130: Front Ho2S Circuit Problem
›
Diagnostic Procedure
Diagnostic Procedure

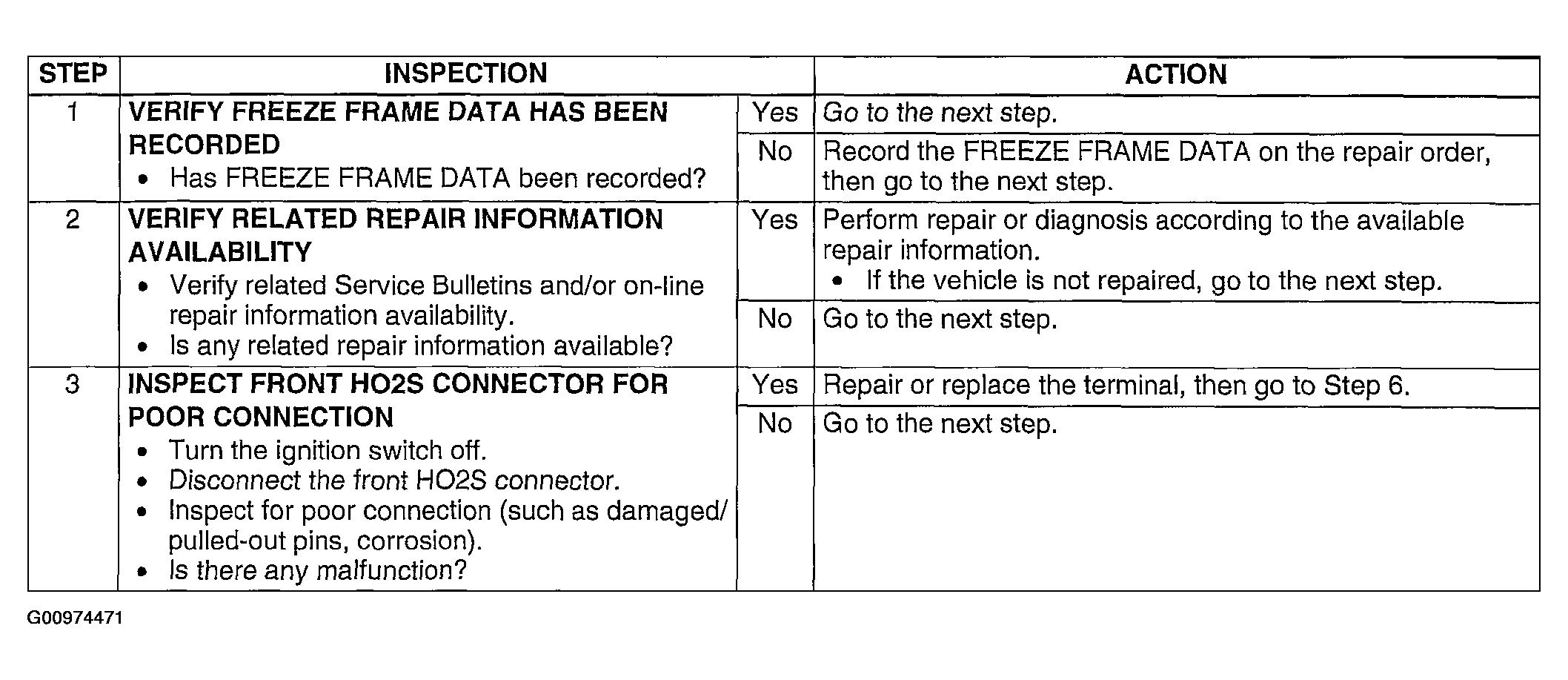

Fig 1: DTC P0130: Diagnostic Procedure Chart (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

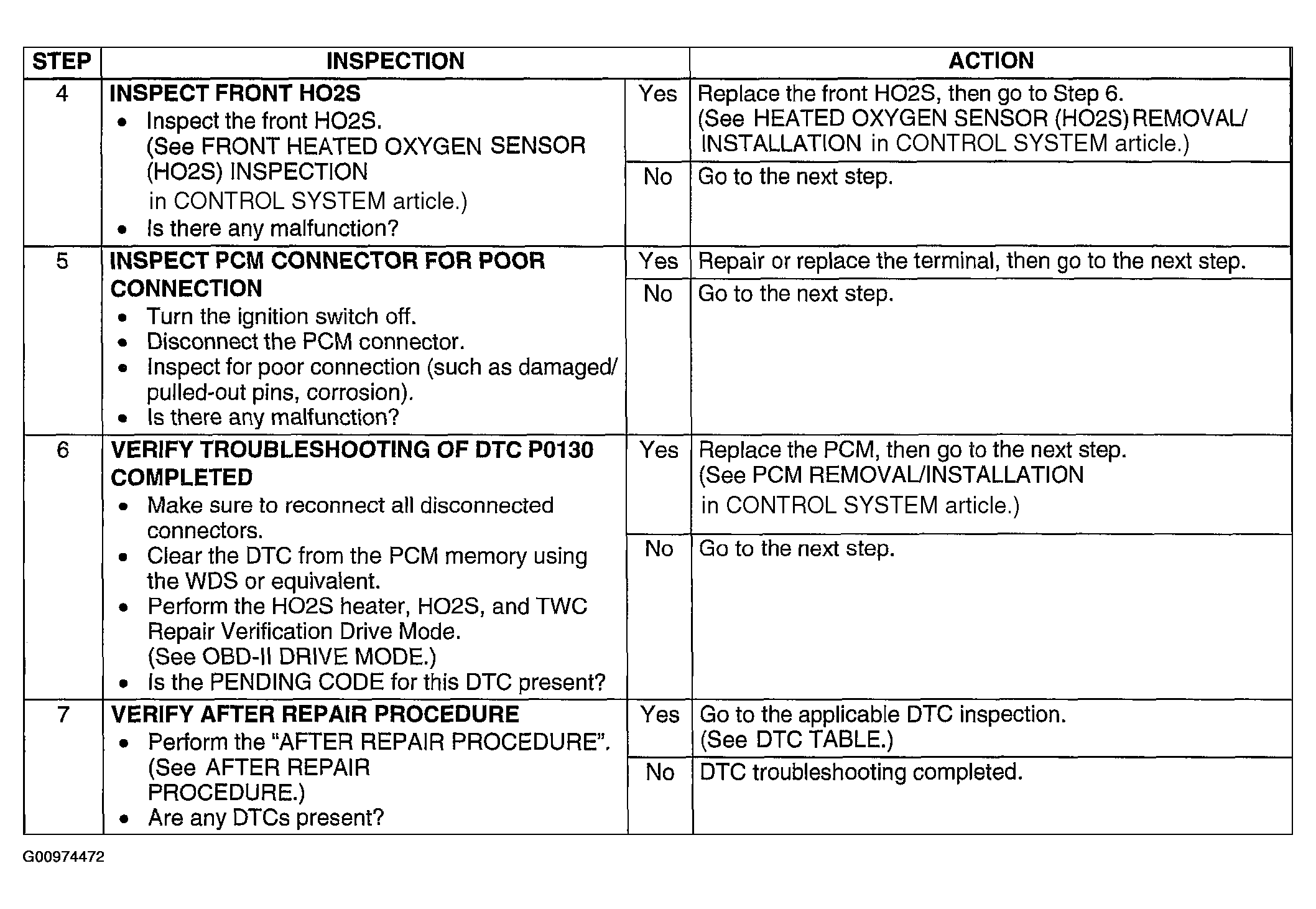

Fig 2: DTC P0130: Diagnostic Procedure Chart (Steps 4-7)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
