Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System (L3)
›
Control System Diagram
Control System Diagram

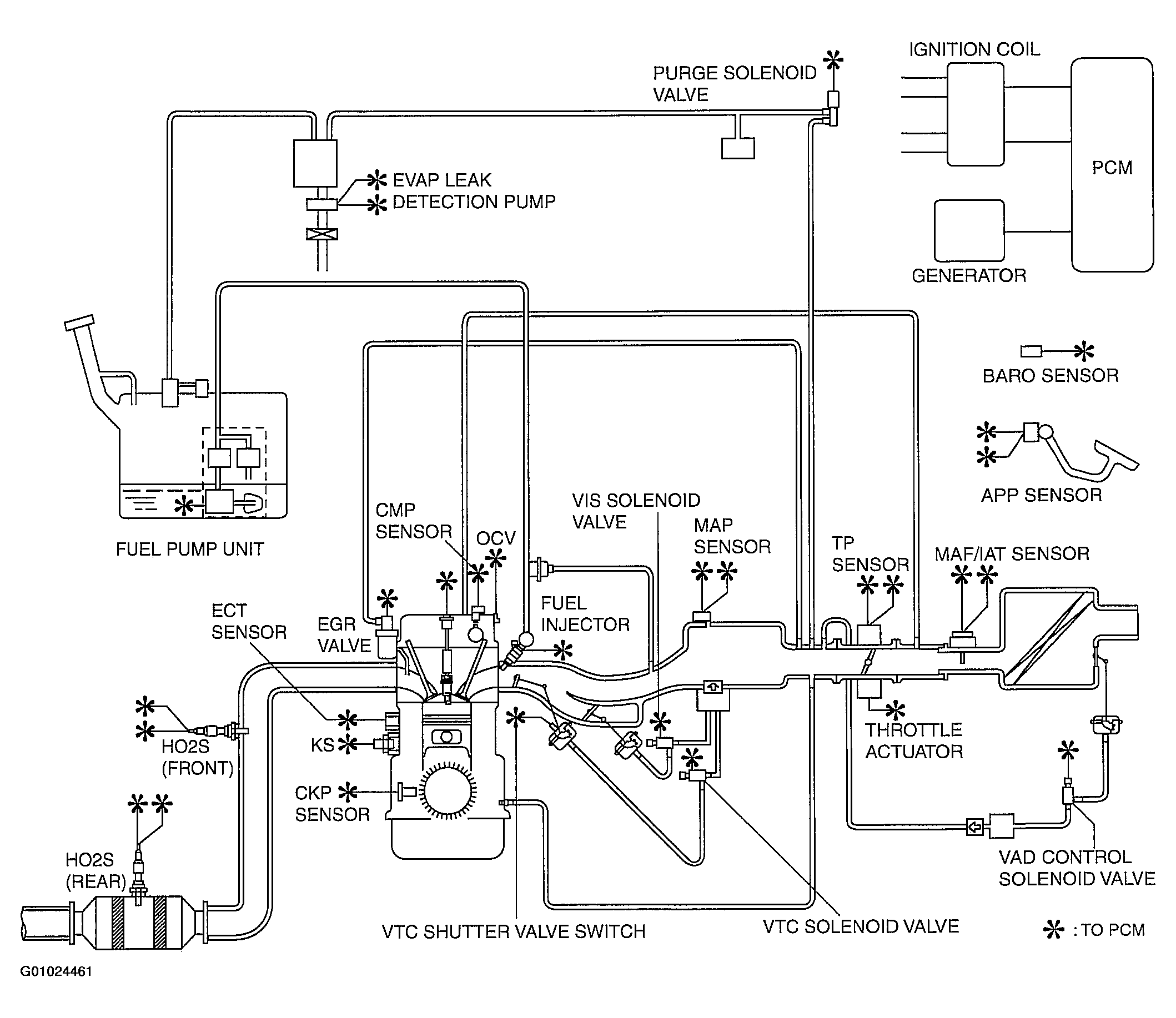

Fig 1: System Component Location & Vacuum Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
