Inspection Using An Oscilloscope (Reference)
›
CMP Sensor Signal (+)
›
Vehicle condition
Vehicle condition
Idle after warm up (engine speed approx. 700 RPM, no load, P/S off, A/C off)

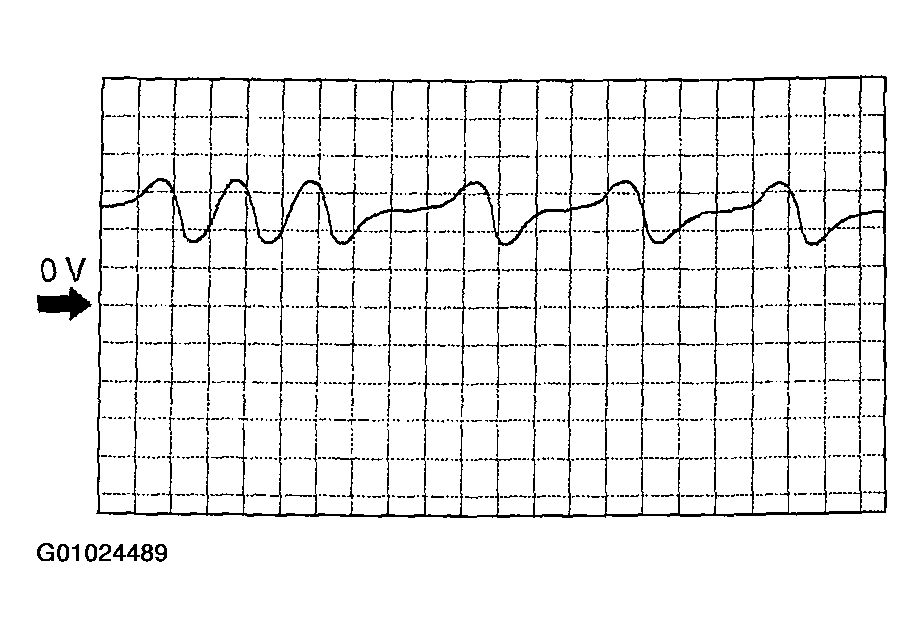

Fig 1: Inspecting CMP Sensor Signal (+) Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
