Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System (L3)
›
Pcm Inspection
›
Inspection Using An Oscilloscope (Reference)
›
Fuel Injection Control
›
Vehicle condition
Vehicle condition
Idle after warm up (engine speed approx. 700 RPM, no load, P/S off, A/C off)

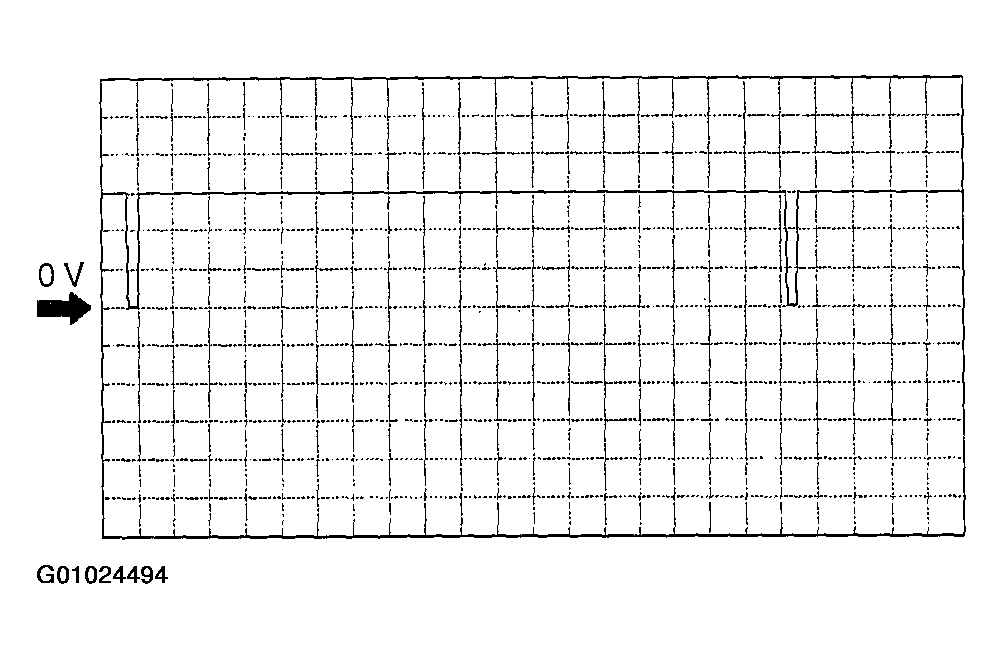

Fig 1: Inspecting Fuel Injection Control Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
