Engine Control System (L3)
›
Pcm Inspection
›
Inspection Using An Oscilloscope (Reference)
›
Generator Field Coil Control Signal
›
Vehicle Condition
Vehicle Condition
Idle after warm up (engine speed approx. 700 RPM, no load, P/S off, A/C off)

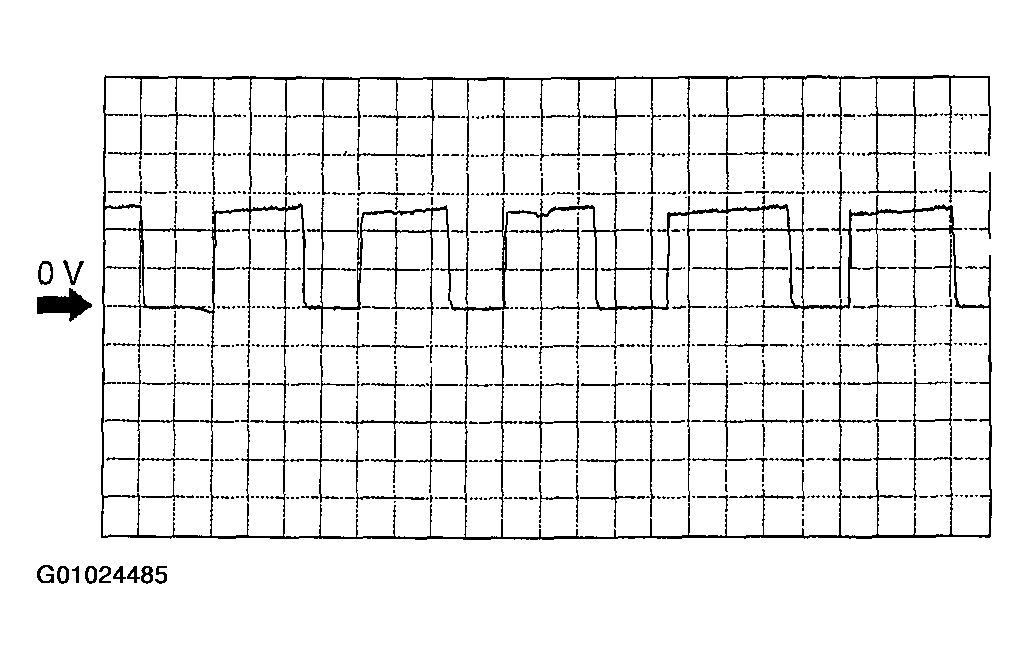

Fig 1: Inspecting Generator Field Coil Control Signal Using Oscilloscope
