Home › Mazda › 2004 › 6 i, 4D Hatchback, Automatic › Repair and Diagnosis › Engine Performance › System › On-Board Diagnostic [Engine Control System L3) › DTC P0480: Fan Relay No. 1 Control Circuit Malfunction › Notes

DTC P0480: Fan Relay No. 1 Control Circuit Malfunction: Notes

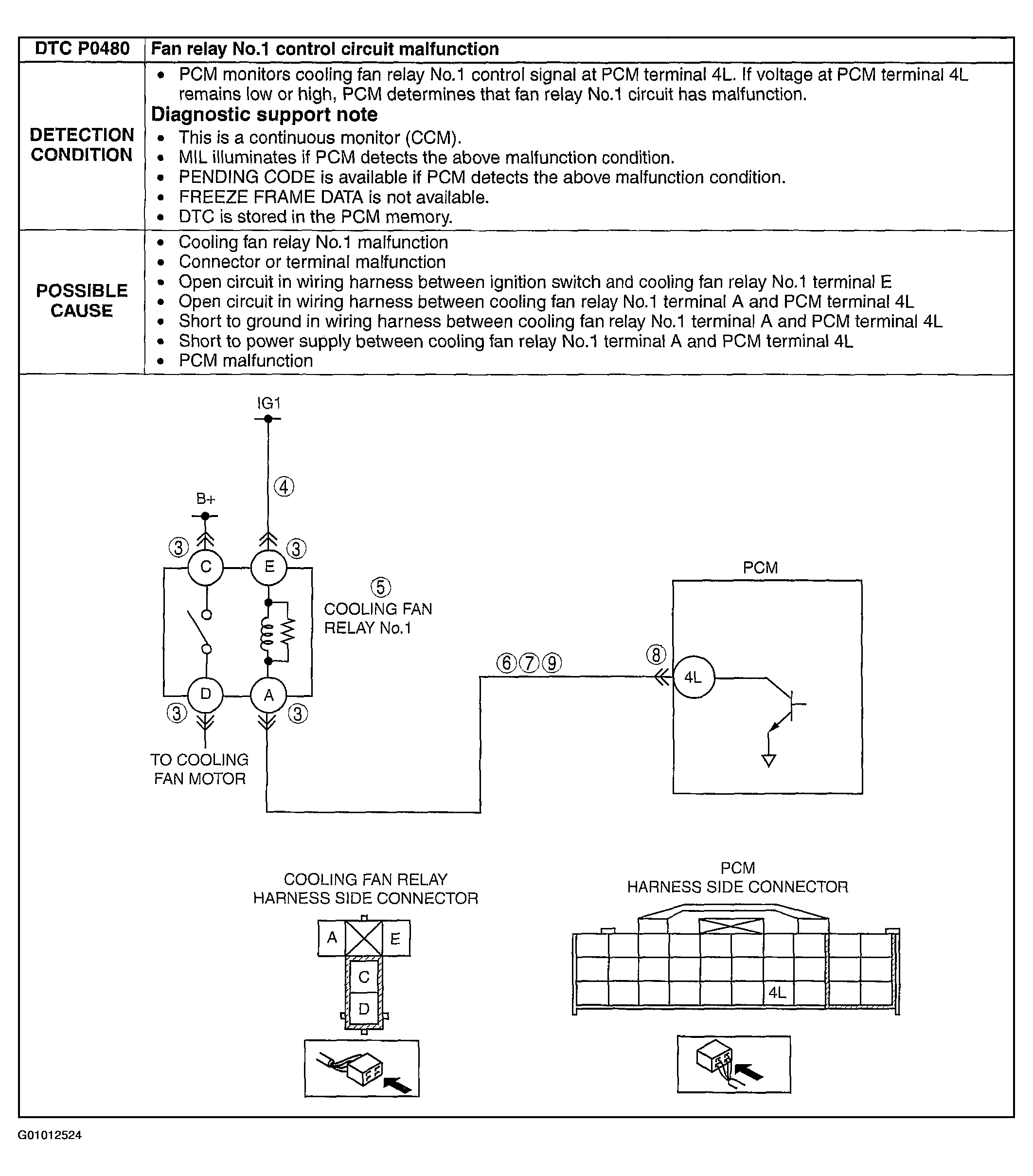

Fig 1: DTC P0480 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views
G01012524Courtesy of MAZDA MOTORS CORP.
