DTC P2102: Throttle Actuator Circuit Low Input: Notes

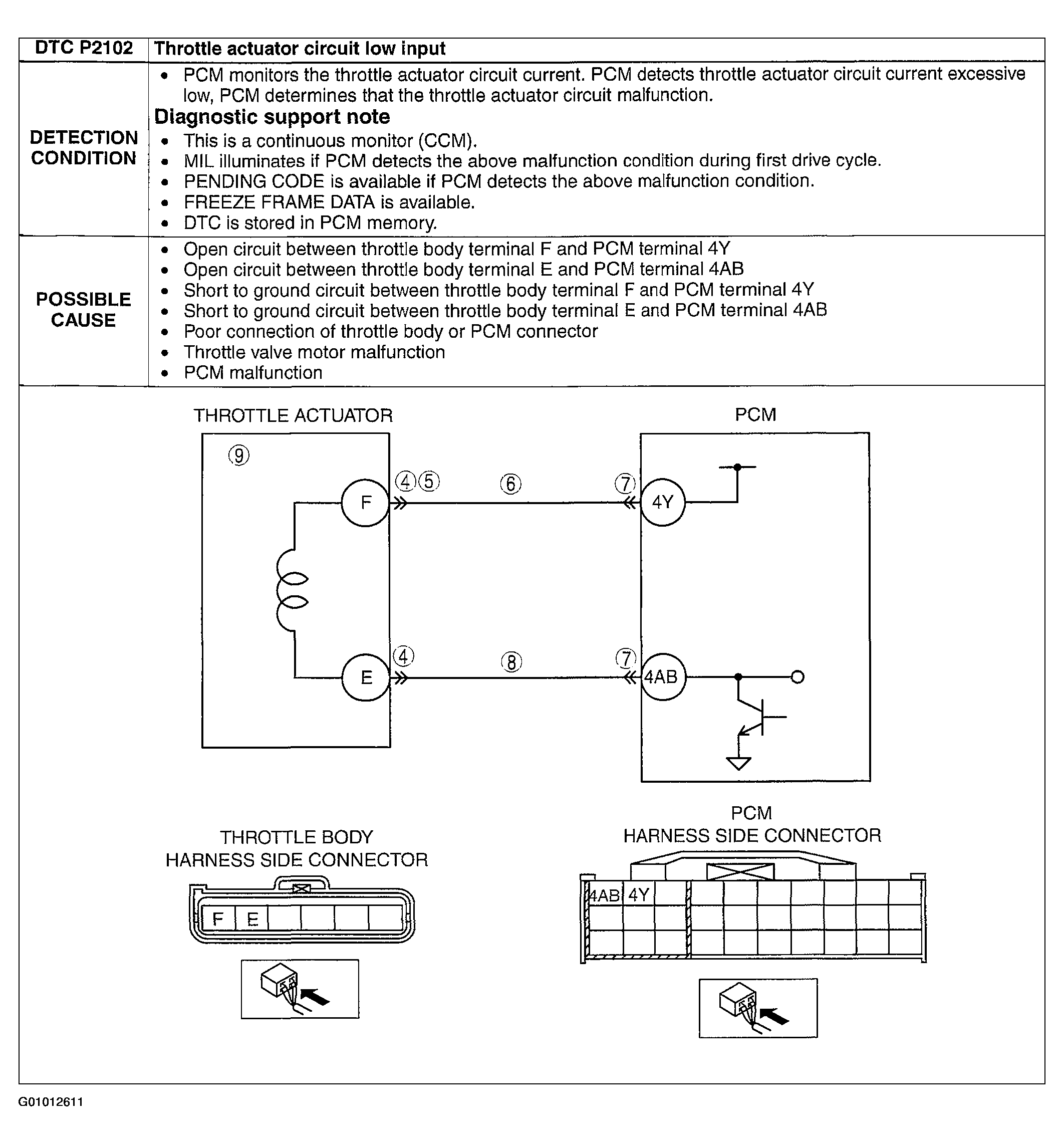

Fig 1: DTC P2102 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views
G01012611Courtesy of MAZDA MOTORS CORP.
