DTC P2122: Accelerator Pedal Position (App) Sensor No. 1 Circuit Low Input: Notes

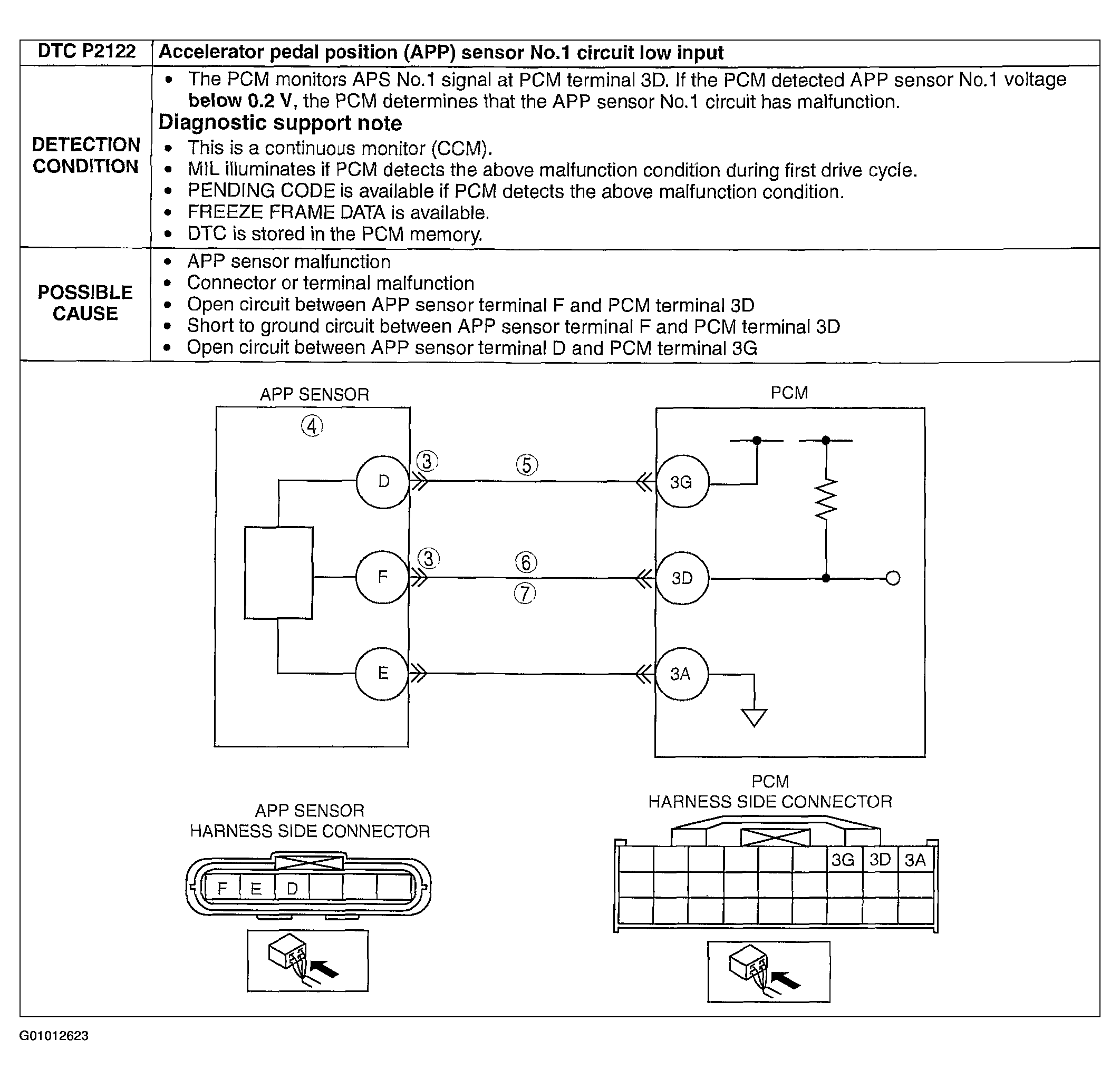

Fig 1: DTC P2122 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views

Courtesy of MAZDA MOTORS CORP.
