DTC P2127: Accelerator Pedal Position (App) Sensor No. 2 Circuit Low Input: Notes

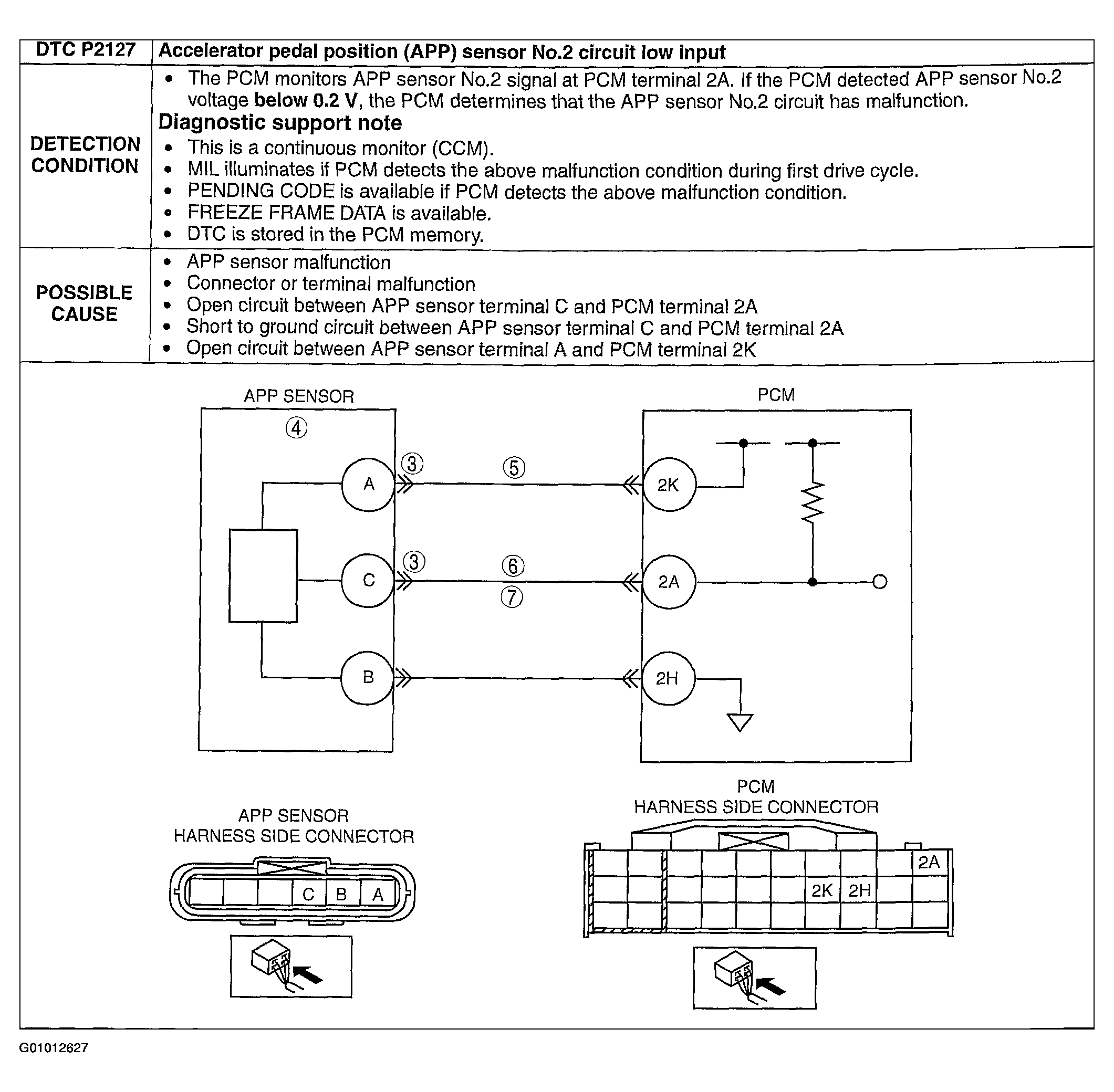

Fig 1: DTC P2127 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views

Courtesy of MAZDA MOTORS CORP.
