DTC P2128: Accelerator Pedal Position (App) Sensor No. 2 Circuit High Input: Notes

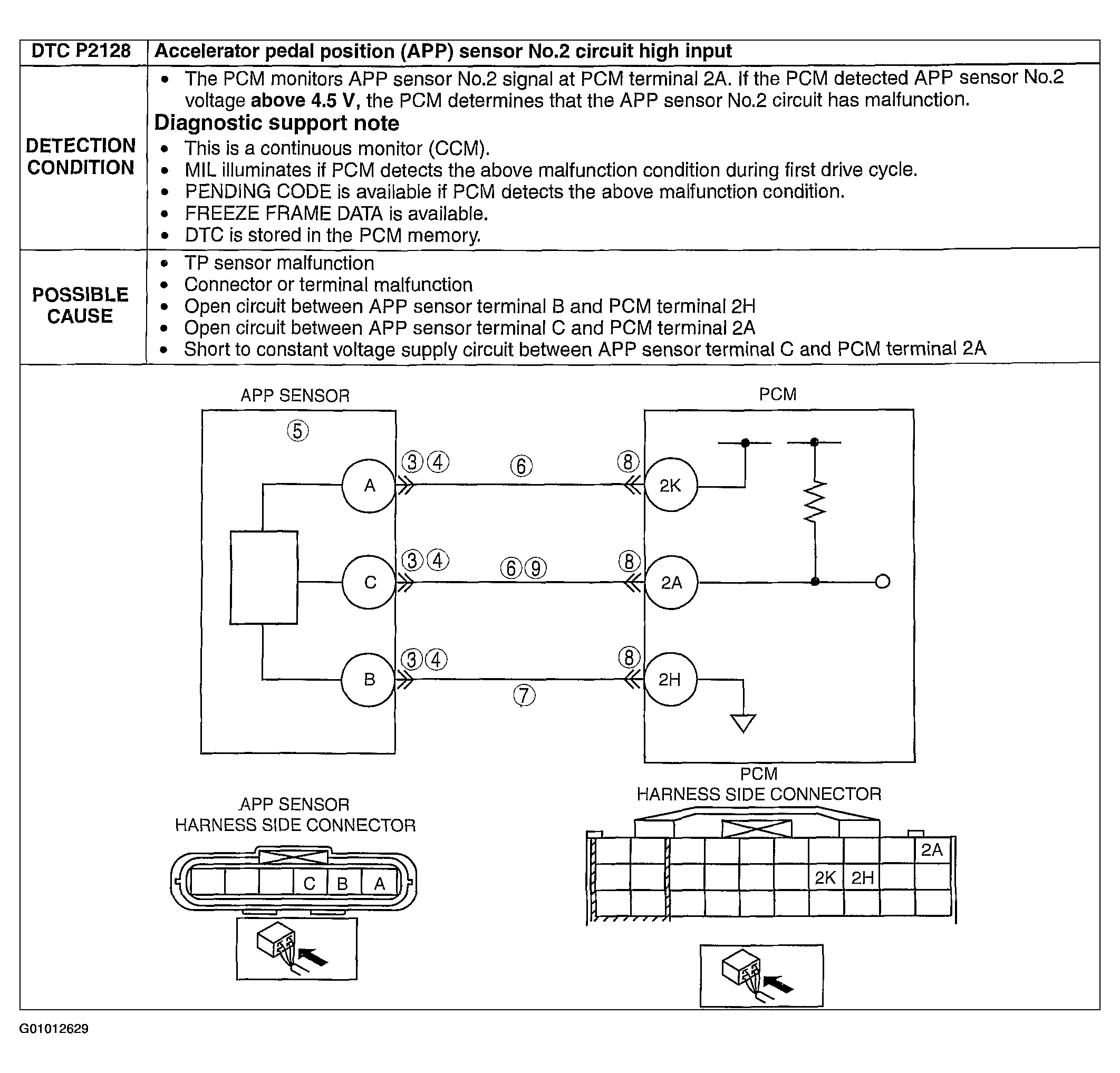

Fig 1: DTC P2128 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views

Courtesy of MAZDA MOTORS CORP.
