Symptom Troubleshooting [Engine Control System (L3)
›
No.20 Fuel Odor (In Engine Compartment)
›
Notes
No.20 Fuel Odor (In Engine Compartment): Notes

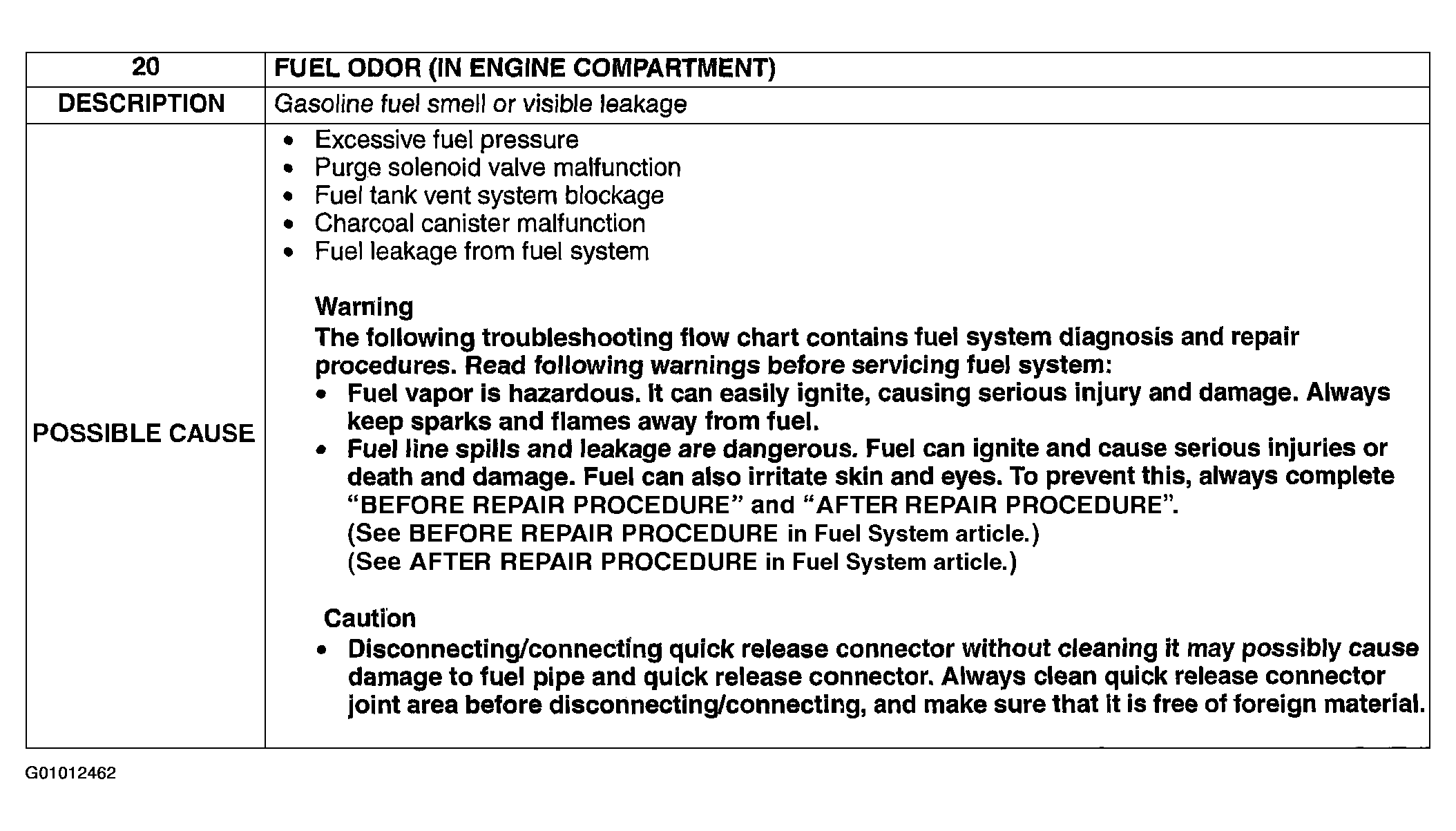

Fig 1: Symptom No.20 Fuel Odor (In Engine Compartment) - Description & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
