DTC P0031: Front Ho2S Heater Circuit Low Input: Notes

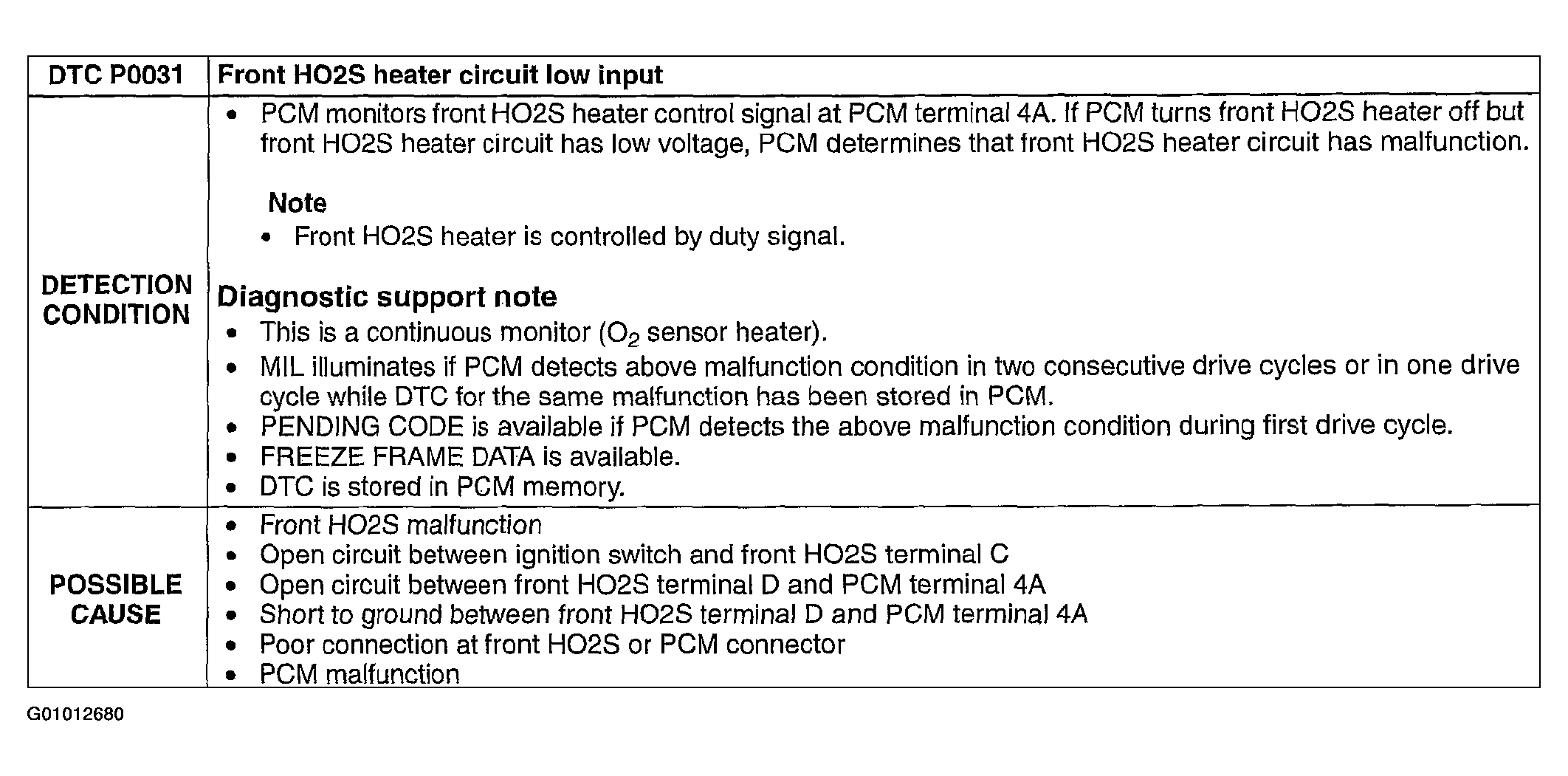

Fig 1: DTC P0031 - Detection Conditions & Possible Causes

Courtesy of MAZDA MOTORS CORP.

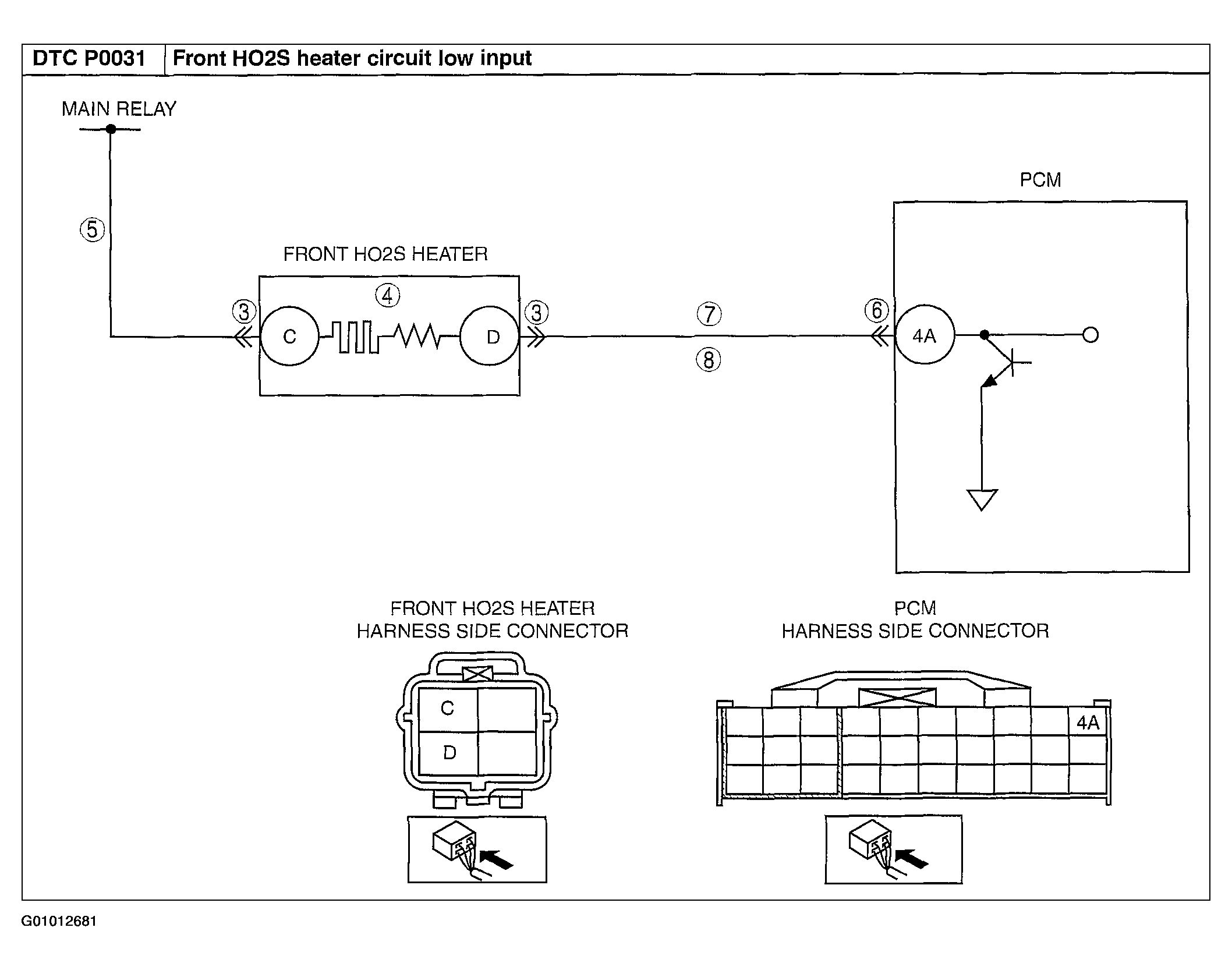

Fig 2: DTC P0031 - Circuit Identification & Connector Views

Courtesy of MAZDA MOTORS CORP.
