DTC P0032: Front Ho2S Heater Circuit High Input: Notes

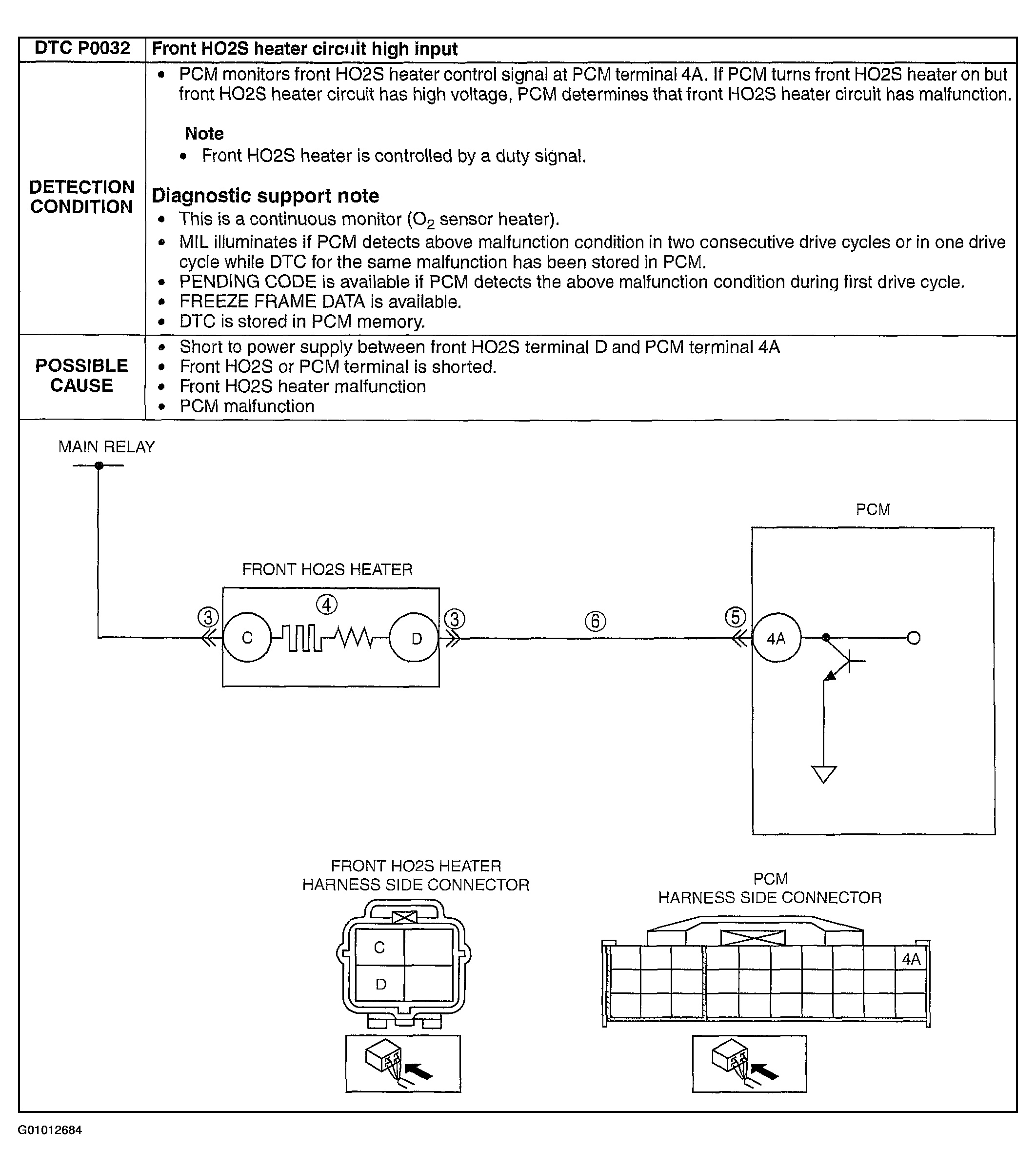

Fig 1: DTC P0032 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views
G01012684Courtesy of MAZDA MOTORS CORP.
