DTC P0138: Rear Ho2S Circuit High Input: Notes

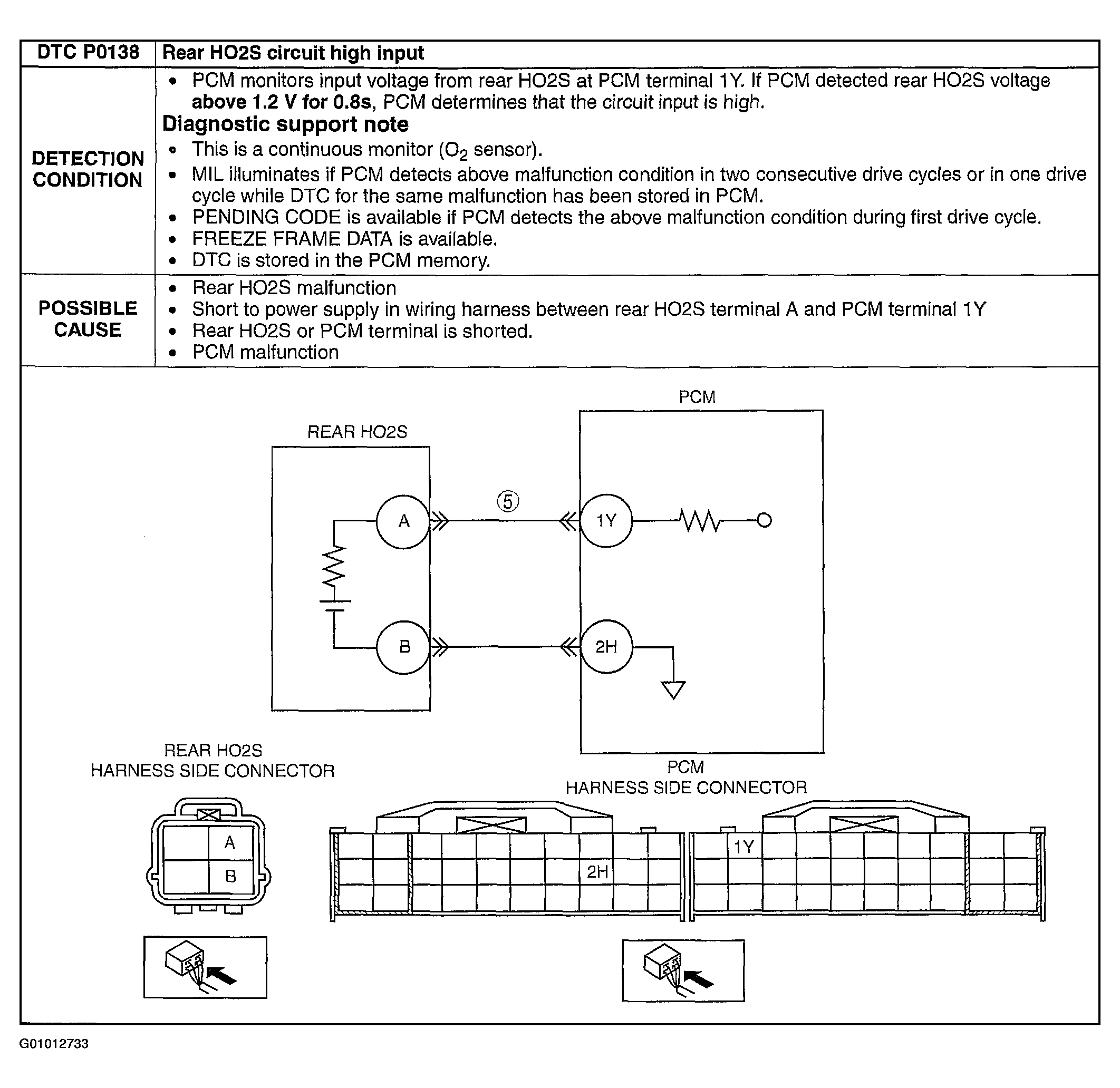

Fig 1: DTC P0138 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views
G01012733Courtesy of MAZDA MOTORS CORP.
