FixVault
Home
›
Mazda
›
2004
›
6 i, 4D Hatchback, Standard
›
Repair and Diagnosis (Single Page)
›
Engine Performance
›
System
›
On-Board Diagnostic [Engine Control System L3)
›
DTC P0335: CKP Sensor Circuit Malfunction
›
Notes
DTC P0335: CKP Sensor Circuit Malfunction: Notes

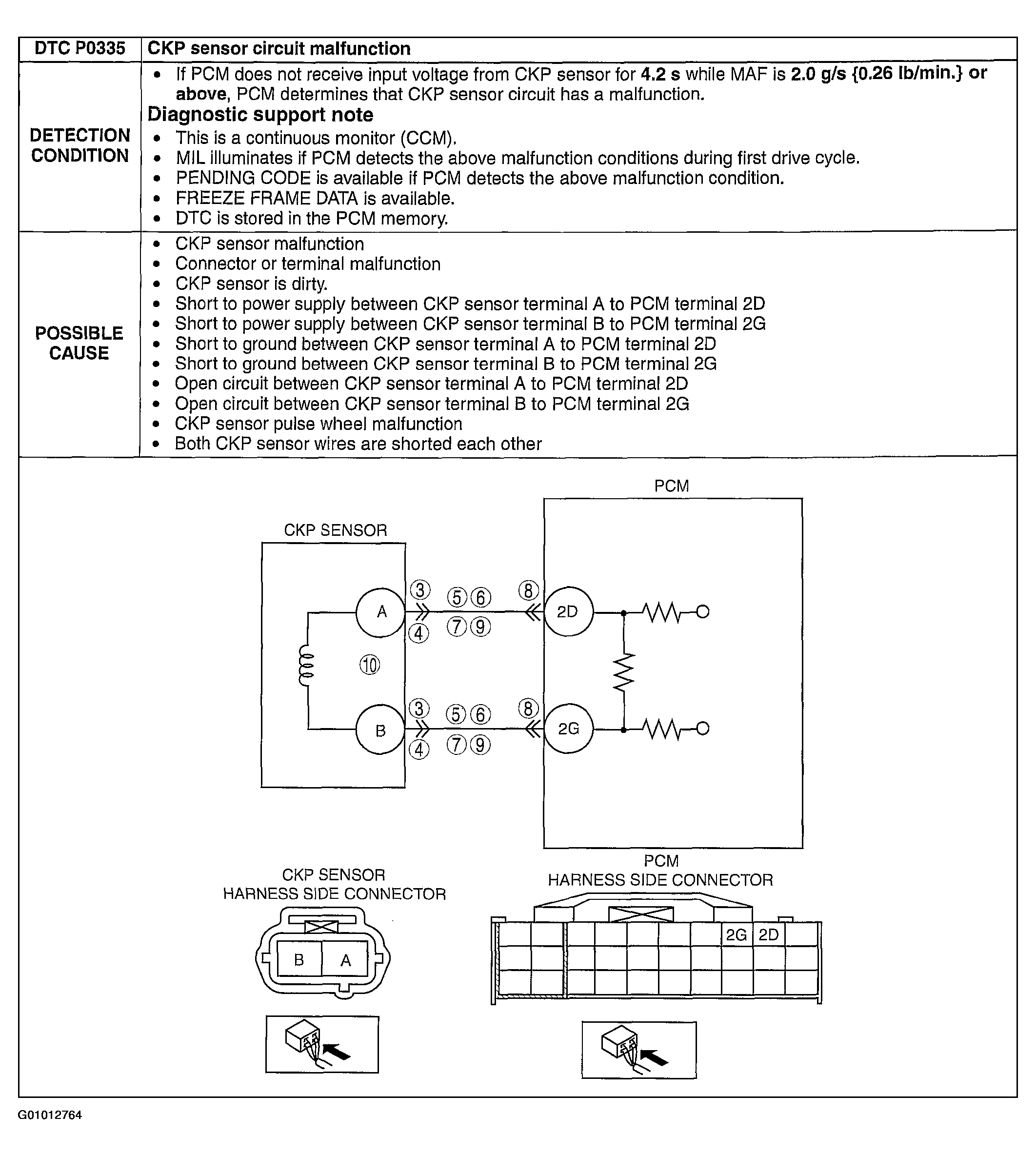

Fig 1: DTC P0335 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
