DTC P0550: PSP Switch Circuit Malfunction
›
Notes
DTC P0550: PSP Switch Circuit Malfunction: Notes

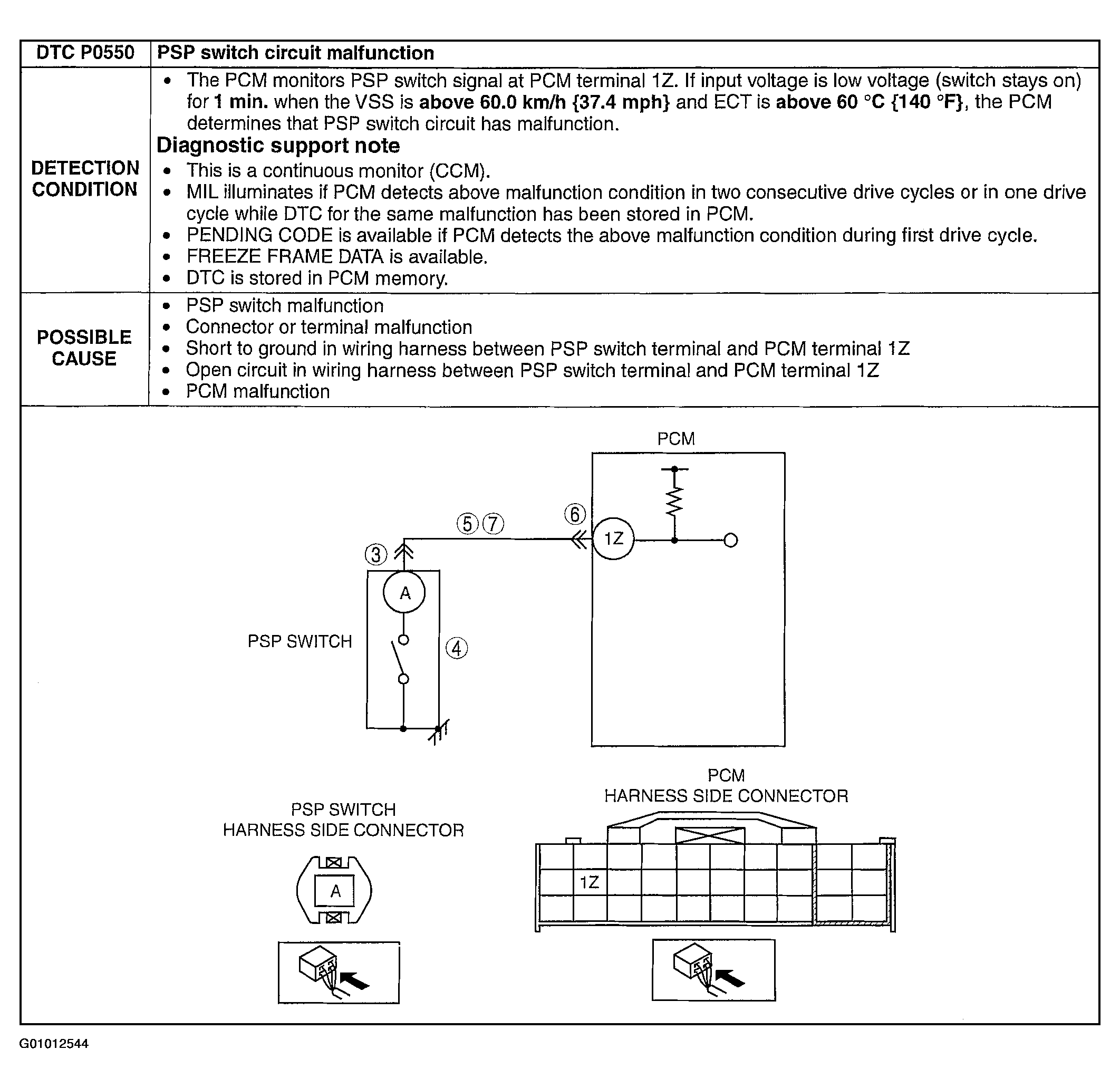

Fig 1: DTC P0550 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
