DTC P0662: Variable Intake-Air System (VIS) Control Solenoid Valve Circuit High Input: Notes

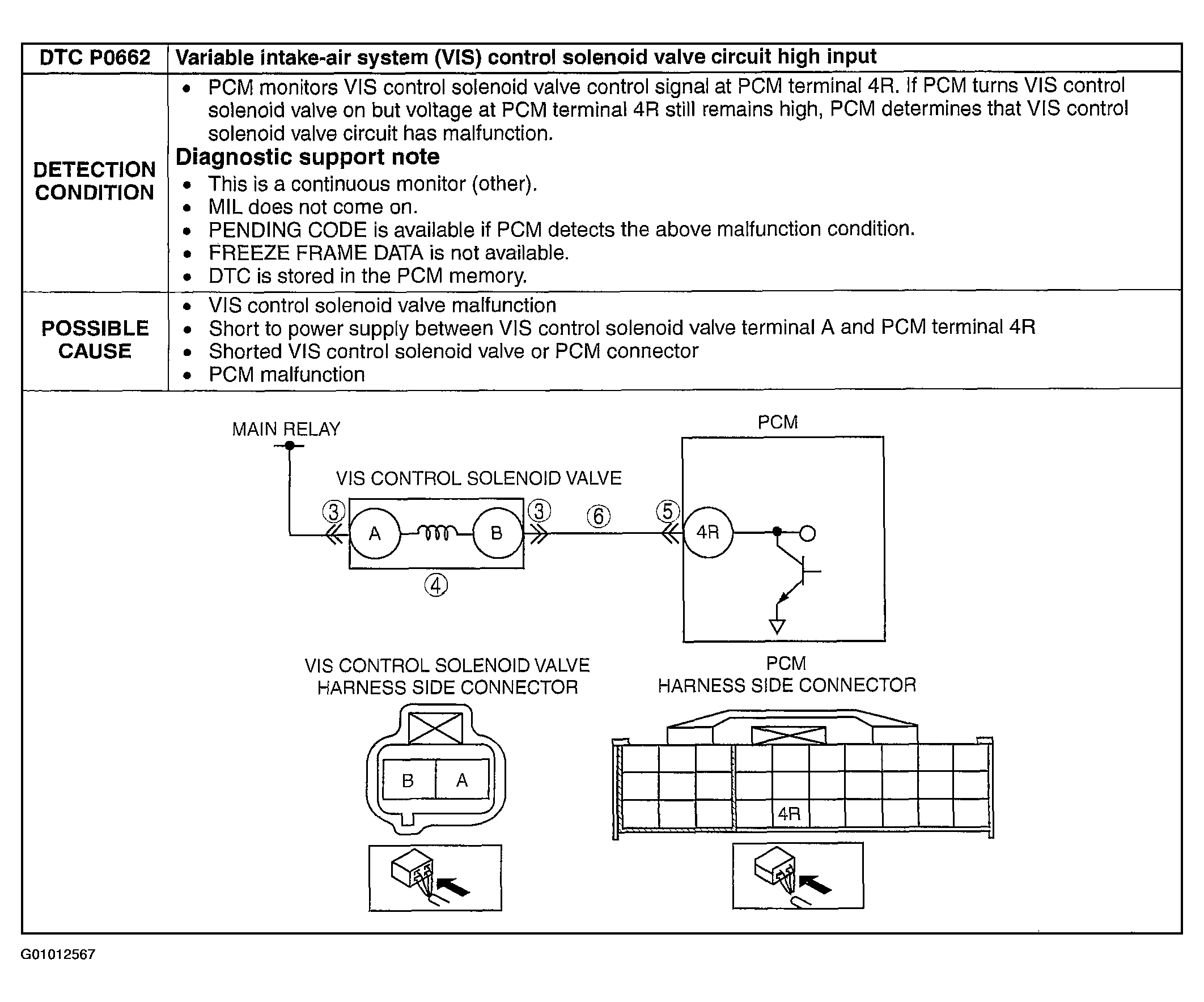

Fig 1: DTC P0662 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views
G01012567Courtesy of MAZDA MOTORS CORP.
