Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

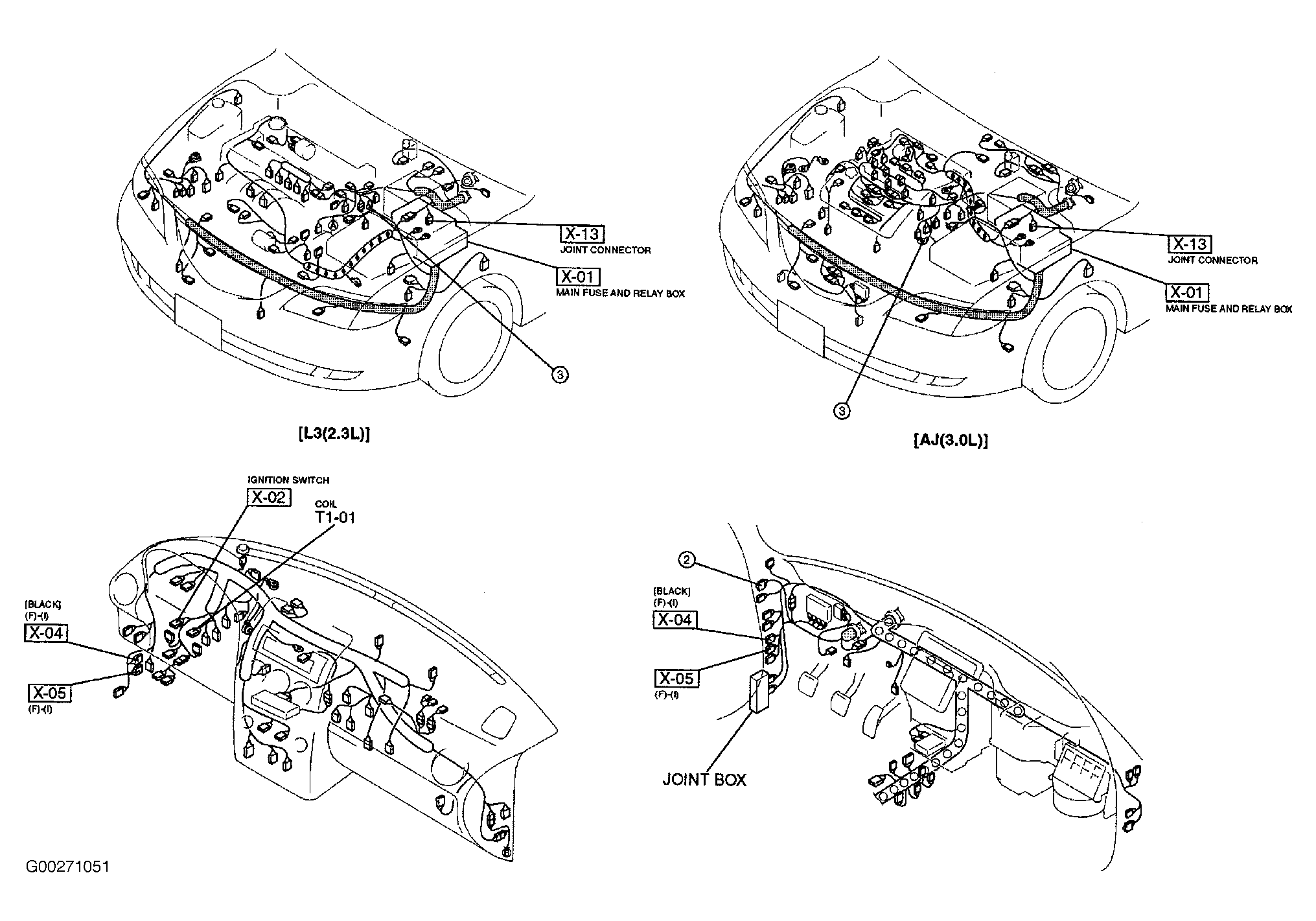

Joint Box Behind left kick panel. See Figure.
Main Fuse & Relay Box On left front inner fender panel. See Figure.
