Circuit Open/Short Inspection (Heater): Notes

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
2. Inspect the following wiring harnesses for open or short circuit. (Continuity check)

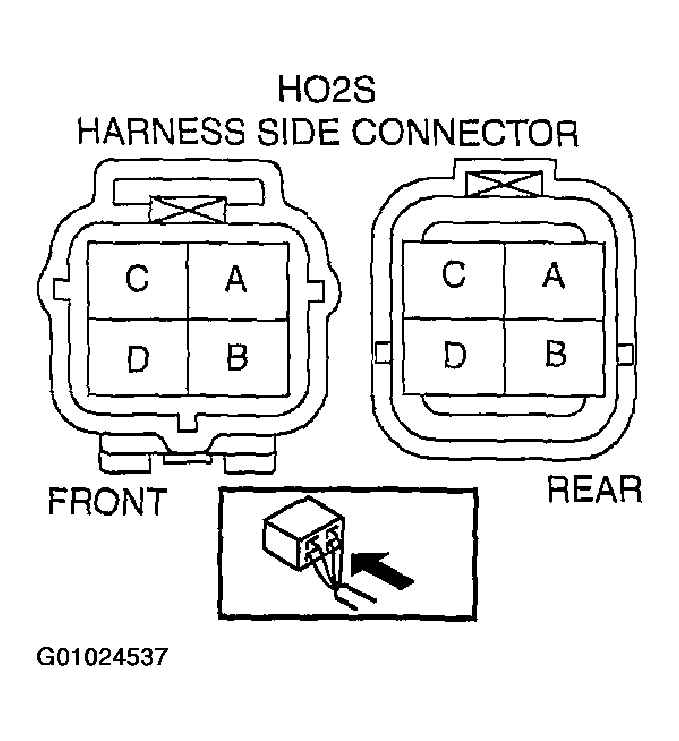

Fig 1: Identifying H2OS Harness Connector Side

Courtesy of MAZDA MOTORS CORP.
