Engine Control System (L3)
›
Pcm Inspection
›
Inspection Using An Oscilloscope (Reference)
›
CKP Sensor Signal (-)
›
Vehicle condition
Vehicle condition
Idle after warm up (engine speed approx. 700 RPM, no load, P/S off, A/C off)

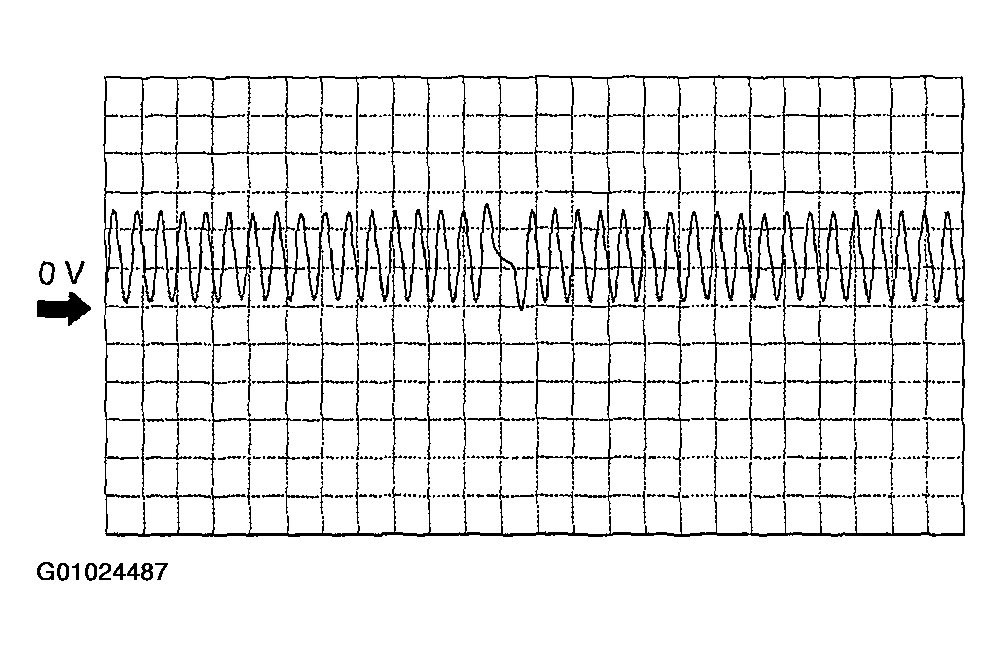

Fig 1: Inspecting CKP Sensor Signal (-) Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
