Symptom Troubleshooting [Engine Control System (L3)
›
No.23 A/C Does Not Work Sufficiently
›
Notes
No.23 A/C Does Not Work Sufficiently: Notes

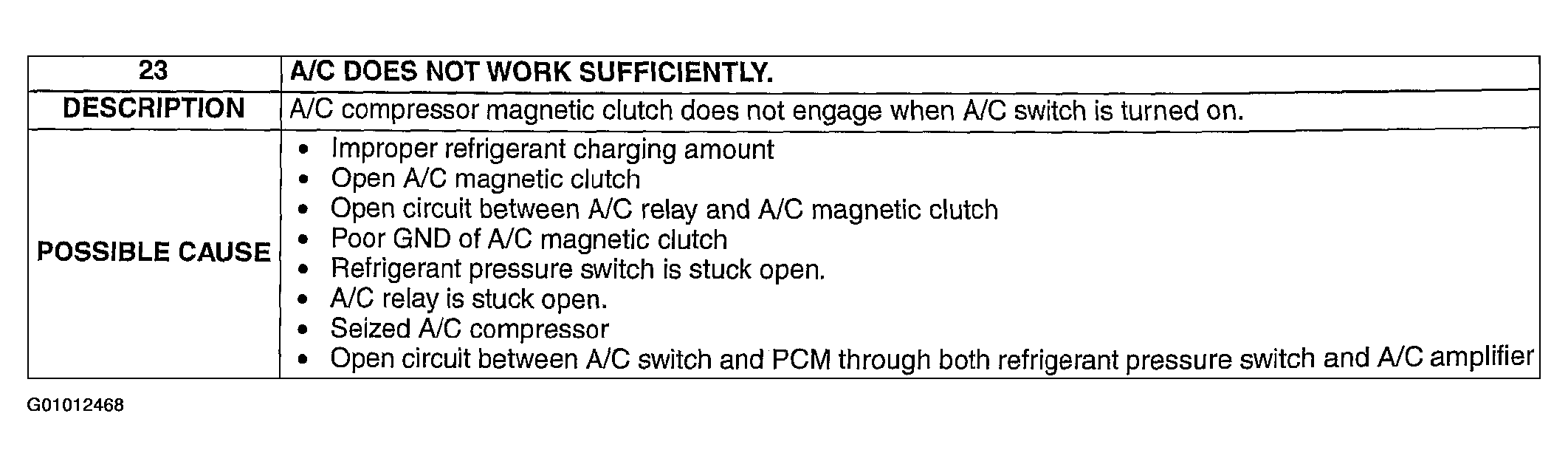

Fig 1: Symptom No.23 A/C Does Not Work Sufficiently - Description & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
