Cover Disassembly Note

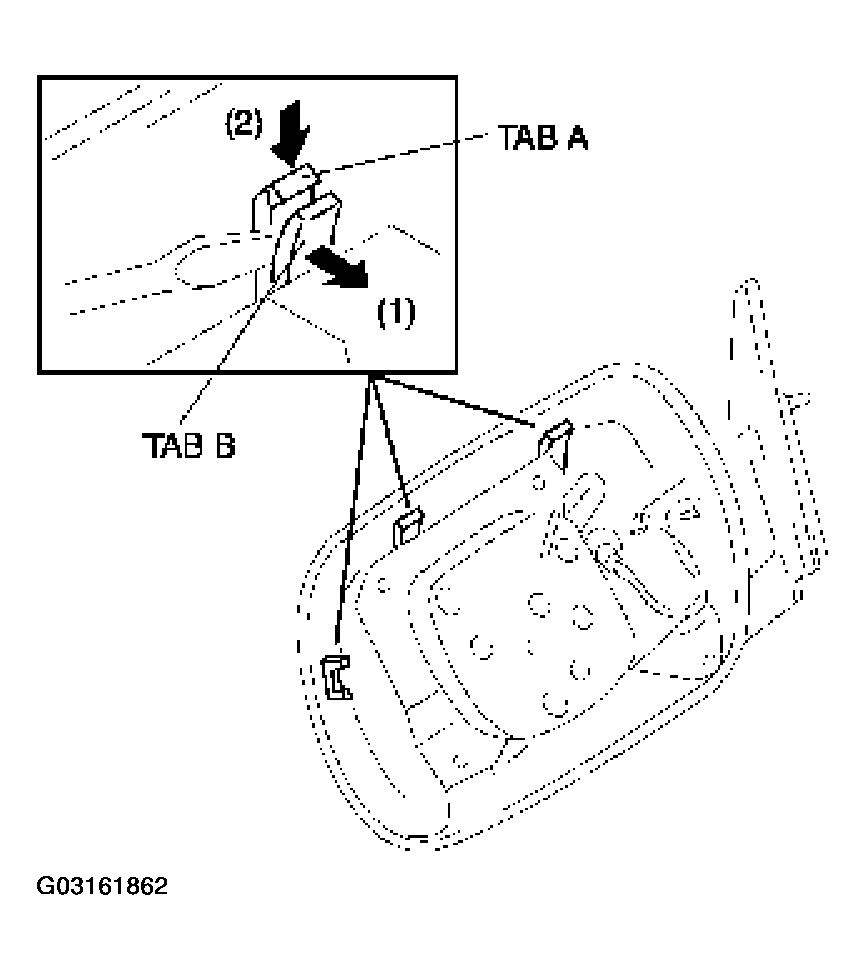

1. Pull off the tab A with a screwdriver and press the tab B downward.

Fig 1: Pulling Off Tab A With Screwdriver And Press Tab B Downward

Courtesy of MAZDA MOTORS CORP.

Outside Mirror Glass Assembly Note

1. Press the outside mirror into the base so that the pin does not dislodge.

Fig 2: Pressing Outside Mirror Into Base

Courtesy of MAZDA MOTORS CORP.
